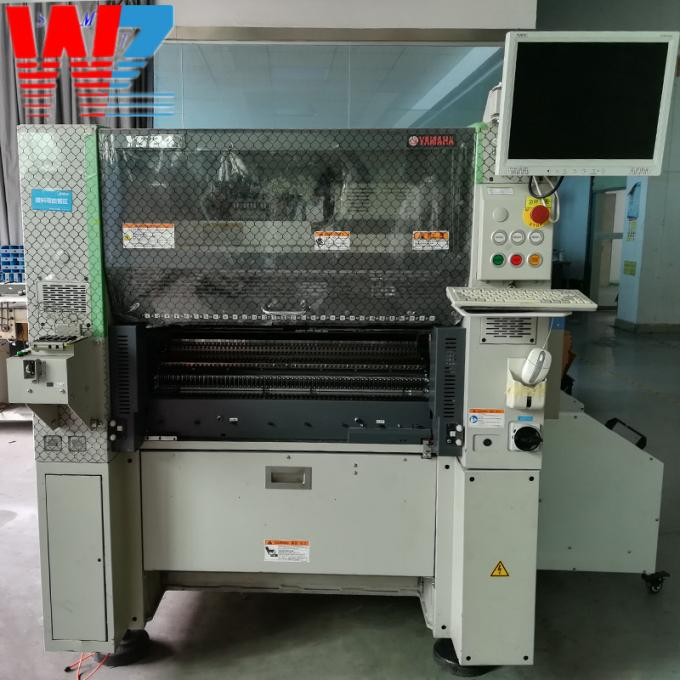

SMT Yamaha Chip mounter Ys24 Ys24x pick and place machine

Product Details

Place of Origin: Japan

Brand Name: YAMAHA

Model Number: Ys24 Ys24x

Payment & Shipping Terms

Minimum Order Quantity: 1pcs

Price: Negotiable

Packaging Details: 1.Wooden case and vacuum package 2.As your requirements

Delivery Time: 3-5 days

Payment Terms: T/T, Western Union, Paypal, Credit card

Supply Ability: 5000

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                Yamaha Ys24x Smt Mounter Machine, 0.067s/ Chip Smt Mounter Machine, 72000CPH Smt Chip Mounter


Name:	Smt Pick And Place Machine Yamaha Ys24 Ys24x Cheap Mounter	Model:	Ys24 Ys24x
Condition:	New, New/used	Applicable Pcb:	L50W50mm To L700W460mm
Brand:	Yamaha	Specification:	Smt Machine
Package:	Carton Box With Foam Protect	Delivery:	Ups,dhl,fedex,as Required

Name:	Smt Pick And Place Machine Yamaha Ys24 Ys24x Cheap Mounter
Model:	Ys24 Ys24x
Condition:	New, New/used
Applicable Pcb:	L50W50mm To L700W460mm
Brand:	Yamaha
Specification:	Smt Machine
Package:	Carton Box With Foam Protect
Delivery:	Ups,dhl,fedex,as Required

SMT Yamaha Chip mounter Ys24 Ys24x pick and place machine

Smt Cheap Mounter Yamaha Ys24 Ys24x Pick And Place Machine

The YS24 pick and place machine is an advanced equipment used in the electronics manufacturing industry for high-speed and accurate placement of surface mount components onto printed circuit boards (PCBs). It offers a wide range of functionality and features that enhance placement accuracy, speed, and versatility.

Yamaha YS24X parameters:
Top Mounting Capacity in General Mounter 54,000 CPH (0.067 Seconds/CHIP)
The maximum number of feeders that can be installed (8mm tape trays) is 96
(62 with sATSII)
Supports automatic pallet changer (30 kinds of JEDEC pallets) sATSII
Supportable components, height 0402~45×100mm, H15mm
Dimensions: L1,254×W1,687×H1,445mm; host only,
L1,544 (lengthened conveyor end)×W2,020×H1,545mm
Weight: about 1,700kg (host only)
About 1,890kg

Functionality:

1. Component Placement: The YS24 pick and place machine specializes in the precise placement of surface mount components onto PCBs. It utilizes advanced vision systems and robotic arms to accurately pick components from feeders and place them onto designated locations on the PCB.

2. High-Speed Placement: The machine is capable of high-speed operation, ensuring fast and efficient placement of components. It features multiple placement heads and a robust conveyor system, enabling quick turnaround times and improved production efficiency.

3. Component Compatibility: The YS24 pick and place machine supports a wide range of surface mount components, including resistors, capacitors, integrated circuits (ICs), ball grid arrays (BGAs), quad flat no-leads (QFNs), and microcontrollers. It accommodates various component sizes and types, making it suitable for diverse PCB assembly requirements.

4. Vision Systems and Alignment: The machine is equipped with advanced vision systems that provide precise component alignment and inspection. These systems use cameras and image processing algorithms to accurately identify component positions and orientations, ensuring proper alignment during the placement process.

5. Feeder Flexibility: The YS24 machine supports various types of feeders, including tape feeders, stick feeders, and tray feeders. It allows for easy and efficient handling of different component types and packaging formats, ensuring smooth and uninterrupted production.

6. Intelligent Feeder Management: The machine features intelligent feeder management capabilities. It can automatically detect and track the component inventory in each feeder, optimizing component usage and reducing setup time between production runs. This feature enhances productivity and minimizes operational errors.

Usage Range:

The YS24 pick and place machine is suitable for a wide range of PCB assembly applications, including:

1. Surface Mount Technology (SMT) Assembly: It is used in the production of PCBs with surface mount components. The machine accurately places components onto the PCB pads, ensuring precise alignment and reliable solder connections during the subsequent soldering process.

2. Prototype Development: The machine is ideal for prototype development and small-scale production. Its flexibility and quick setup time allow for rapid iteration and validation of PCB designs, facilitating efficient product development cycles.

3. Medium to High Volume Production: The YS24 machine is suitable for medium to high volume production environments. Its high-speed placement capabilities and efficient feeder management enable fast and reliable assembly of large quantities of PCBs.

4. Multi-Project Production: The machine is capable of handling multi-project production, where different PCB designs are produced in the same production run. It offers quick changeover between projects, minimizing downtime and facilitating efficient production of diverse PCB assemblies.

5. Automotive, Consumer Electronics, and Telecommunications: The YS24 pick and place machine finds applications in various industries, including automotive, consumer electronics, and telecommunications. It meets the high-quality and reliability requirements of these sectors, ensuring accurate and consistent placement of components.

The YS24 pick and place machine provides advanced functionality for high-speed and precise component placement in PCB assembly. It plays a critical role in the electronics manufacturing process, ensuring efficient production and reliable performance of electronic products.

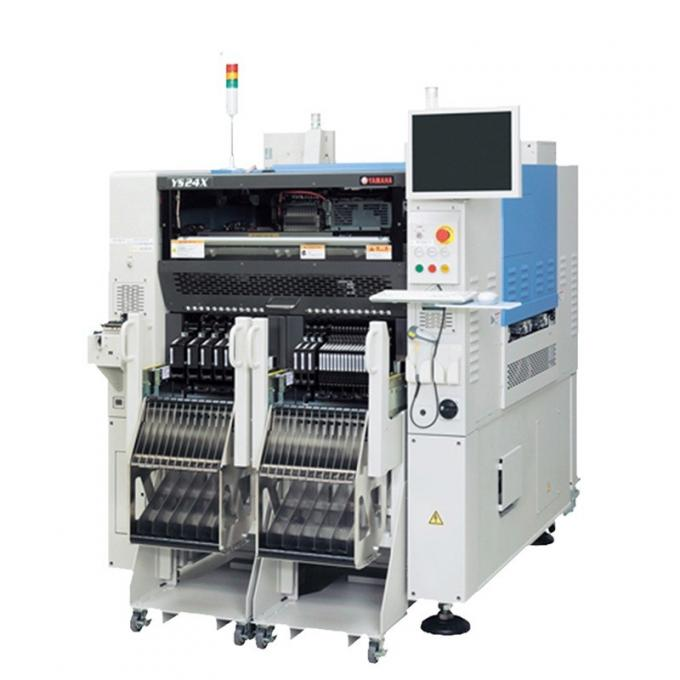

SMT Yamaha Chip mounter Ys24 Ys24x pick and place machine 0

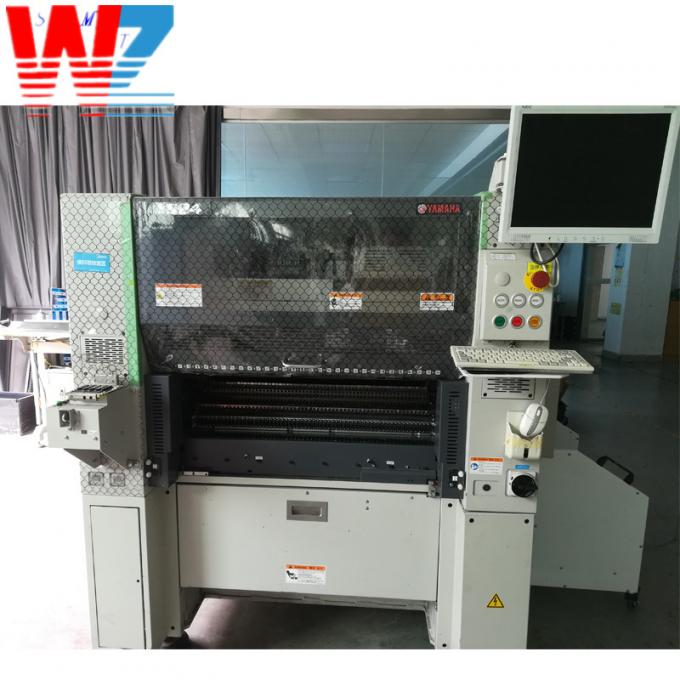

SMT Yamaha Chip mounter Ys24 Ys24x pick and place machine 1

other machine

We are smt support provider for smt machine parts and equipment .such as reflow solder oven, Wave Soldering Machine, Pick and Place Machine, SMT PCB Printer, SMT AOI SPI Machine, SMT Reflow Oven, PCB conveyor , smd counter ,loader & unloader machine ,nozzle / feeder , feeder storage cart smt reel rack , smt grease , solder paste mixer, KIC thermal profiler,smt tape ,SMT Assembly line and so on .

wenzhan Techonologies Co.,Ltd

In 2009, Shenzhen wenzhan Technology Co., Ltd. was established to build a more timely and effective communication platform, and realize the company's service tenet of serving leading customers.The engineers of the company are professional technicians who have been certified by the original factory for more than 10 years. They always adhere to the value of putting the interests of customers first, and provide customers with high-quality equipment accessories, consumables, fixtures and technical support services.

In order to effectively reduce the cost of customers, the company set up a machining plant, and changed most of the feeder parts to self-produced parts, so as to ensure sufficient inventory and reduce the cost of customers at the same time.

SMT Yamaha Chip mounter Ys24 Ys24x pick and place machine 3

EXIHIBITION PHOTO:

SMT Yamaha Chip mounter Ys24 Ys24x pick and place machine 7

Why Choose Us?
It is precisely because wenzhan technology has the following advantages over the same industry that
more and more customers choose wenzhan as their preferred supplier.

1. Professional pre-sales advice support

2. Excellent after-sales technical service

3. Flexible payment and return policy

4. One stop solution for SMT accessories

5. Stock in the factory with sufficient stock and fast delivery
