Product Name: |
Samsung SM471 Pick And Place Machine |
Brand: |
SAMSUNG |
Model: |
SM471 |
Condition: |
New And Used |
Speed: |
28,000-75000CPH |
PCB Size: |
460(l)x400(w)(Standard)/Max.740(L)x460(w) |
Applicable Components: |
0402 |
Weight: |
1820KG |
After-sales Service Provided: |
Video Technical Support |
Warranty: |
3 Months |
Product Name: |
Samsung SM471 Pick And Place Machine |
Brand: |
SAMSUNG |
Model: |
SM471 |
Condition: |
New And Used |
Speed: |
28,000-75000CPH |
PCB Size: |
460(l)x400(w)(Standard)/Max.740(L)x460(w) |
Applicable Components: |
0402 |
Weight: |
1820KG |
After-sales Service Provided: |
Video Technical Support |
Warranty: |
3 Months |

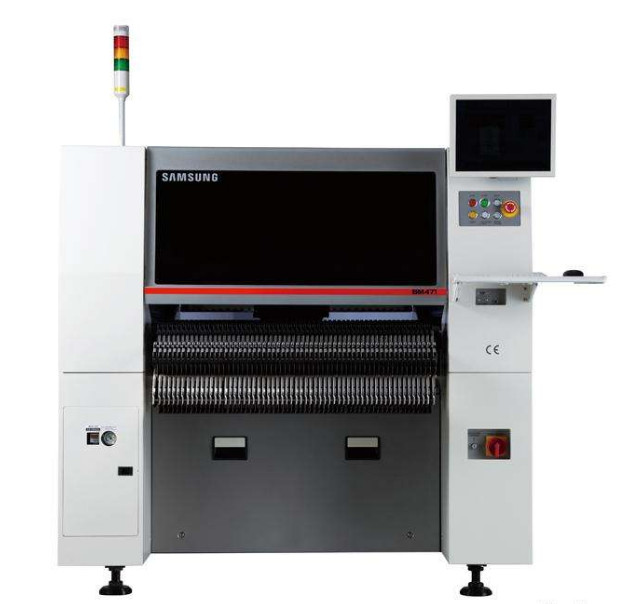

The Samsung SM471 is a high-speed chip mounter equipped with 10 axes for each mount head and dual-boom,
high-performance newer flying camera placement machine that delivers world-class top speeds of 75,000 CPH .
0402Chip ~ 14mm can be basically corresponding, and through the application of high-speed.
| Specifications | SAMSUNG SMT Pick and Place Machine SM471 Plus |
| Alignment | Flying Vision |
| Number of Spindles | 10 Spindles x 2 Gantry |
| Placement Speed | 75,000 CPH(Optimum) |
| Placement Accuracy | ±50μm@μ+3σ (Based on the Standard Chips) |
| Component Range | Chip 0402 ~ 14mm(H 12mm) IC, Connector(Lead Pitch 0.4mm) BGA, CSP(Ball Pitch 0.4mm) |
| Board Dimension(mm) | 50(L) x 40(W)~510(L) x 460(W)610(L) x 460(W)(Option) |
| Feeder Capacity | 120ea / 112ea(Docking Cart) (Based on 8mm) |
| Power | AC200 / 208 / 220 / 240 / 380 / 415V (50/60Hz, 3Phase)Max. 5.0kVA |
| Air Consumption | 0.5 ~ 0.7MPa(5 ~ 7kgf/cm2) |
| Mass | Approx. 1,820kg |
| External Dimension(mm) | 1,650(L) x 1,690(D) x 1,485(H) |
Specification
SPEED: 75,000CPH
2 Gantry x 10 Spindle/Head
accuracy: ±50μm@μ+3σ
system:windows XP
feeder: 120ea
PCB size:50*40*0.38mm---510*460*4.2mm
components range: 0402 (01005) Chip ~ □14mm, 0402,BGA,CSP(Ball Pitch 0.4mm) Max height 12mm
power supply: AC 200/208/220/240/380/415V(50/60Hz,3Phase)Max 5.0KVA
machine size /weight: 1650L*1690D*1485H /1820KG
Packing method:
1)Standard box package for light and small item;
2)Strong wood package for heavy and large equipment;
Shipping way:
1)By air,for sample and small package ,worldwide express like DHL,UPS,EMS....
2)By sea, for large package and quantity;
3)By car or other ways as customer requested
