SMT High Speed Samsung CP45 Pick And Place Machine

Product Details

Place of Origin: South Korea

Brand Name: SAMSUNG

Certification: CE

Model Number: CP40 CP45

Payment & Shipping Terms

Minimum Order Quantity: 1pcs

Price: Negotiable

Packaging Details: 1.wooden case and vacuum package 2.As your order

Delivery Time: 5~7 days

Payment Terms: T/T, Western Union, Paypal, Credit card

Supply Ability: 20 sets per week

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                CP45NEO Pick And Place Machine, Pick And Place Machine Samsung CP45, PCB Placement SMT Assembly Machine


Product Name:	Used SMT Pick And Place Machine CP40 CP45	Model:	CP40 CP45 CP45FV CP45NEO
Placement Heads:	3/6 Heads	Condition:	Used
Warranty:	3 Months	After Warranty Service:	Video Technical Support, Online Support, Spare Part
Usuage:	PCB Placement	Shipment:	On-time Shipment

Product Name:	Used SMT Pick And Place Machine CP40 CP45
Model:	CP40 CP45 CP45FV CP45NEO
Placement Heads:	3/6 Heads
Condition:	Used
Warranty:	3 Months
After Warranty Service:	Video Technical Support, Online Support, Spare Part
Usuage:	PCB Placement
Shipment:	On-time Shipment

SMT High Speed Samsung CP45 Pick And Place Machine

Used SMT Samsung CP40 CP45 CP45FV CP45NEO pick and place machine

The Samsung CP45 pick and place machine is an advanced equipment used in the electronics manufacturing industry for high-speed and accurate placement of surface mount components onto printed circuit boards (PCBs). It offers a wide range of functionality and features that enhance placement accuracy, speed, and versatility.

Product desription:

1. Samsung pick and place machine

2. CP series

3. Mounting speed: around 8000-13000CPH

4. Feeders: 100 pcs 8mm feeders

5. Applicable components: SOP, IC, BGA, 0402 0603 0805 1206...

6. Nozzle type: N, TN and CN series, like TN/CN030 040 065...

7. Machine system: Windows

8. Power supply: 220/110V

Functionality:

1. Component Placement: The Samsung CP45 pick and place machine specializes in the precise placement of surface mount components onto PCBs. It utilizes advanced vision systems and robotic arms to accurately pick components from feeders and place them onto designated locations on the PCB.

2. High-Speed Placement: The machine is capable of high-speed operation, ensuring fast and efficient placement of components. It features multiple placement heads and a robust conveyor system, enabling quick turnaround times and improved production efficiency.

3. Component Compatibility: The Samsung CP45 pick and place machine supports a wide range of surface mount components, including resistors, capacitors, integrated circuits (ICs), ball grid arrays (BGAs), quad flat no-leads (QFNs), and microcontrollers. It accommodates various component sizes and types, making it suitable for diverse PCB assembly requirements.

4. Vision Systems and Alignment: The machine is equipped with advanced vision systems that provide precise component alignment and inspection. These systems use cameras and image processing algorithms to accurately identify component positions and orientations, ensuring proper alignment during the placement process.

5. Feeder Flexibility: The Samsung CP45 machine supports various types of feeders, including tape feeders, stick feeders, and tray feeders. It allows for easy and efficient handling of different component types and packaging formats, ensuring smooth and uninterrupted production.

6. Intelligent Feeder Management: The machine features intelligent feeder management capabilities. It can automatically detect and track the component inventory in each feeder, optimizing component usage and reducing setup time between production runs. This feature enhances productivity and minimizes operational errors.

Usage Range:

The Samsung CP45 pick and place machine is suitable for a wide range of PCB assembly applications, including:

1. Surface Mount Technology (SMT) Assembly: It is used in the production of PCBs with surface mount components. The machine accurately places components onto the PCB pads, ensuring precise alignment and reliable solder connections during the subsequent soldering process.

2. Prototype Development: The machine is ideal for prototype development and small-scale production. Its flexibility and quick setup time allow for rapid iteration and validation of PCB designs, facilitating efficient product development cycles.

3. Medium to High Volume Production: The Samsung CP45 machine is suitable for medium to high volume production environments. Its high-speed placement capabilities and efficient feeder management enable fast and reliable assembly of large quantities of PCBs.

4. Multi-Project Production: The machine is capable of handling multi-project production, where different PCB designs are produced in the same production run. It offers quick changeover between projects, minimizing downtime and facilitating efficient production of diverse PCB assemblies.

5. Automotive, Consumer Electronics, and Telecommunications: The Samsung CP45 pick and place machine finds applications in various industries, including automotive, consumer electronics, and telecommunications. It meets the high-quality and reliability requirements of these sectors, ensuring accurate and consistent placement of components.

The Samsung CP45 pick and place machine provides advanced functionality for high-speed and precise component placement in PCB assembly. It plays a critical role in the electronics manufacturing process, ensuring efficient production and reliable performance of electronic products.

Production specification

Model	CP40	CP45FV	CP45NEO
Manufacturing year	About 2000	About 2004	About 2006
Placement heads	3	6	6
Mounting speed	8000CPH	12000CPH	13000CPH
Spare parts	Sanyo motor	Sanyo motor	Panasonic motor
Feeder slots	108	108	108
Camera	vision camera+flying camera+mark camera
Power supply	220V
Machine weight	1600KG
Package dimension	1650x1540x1420CM

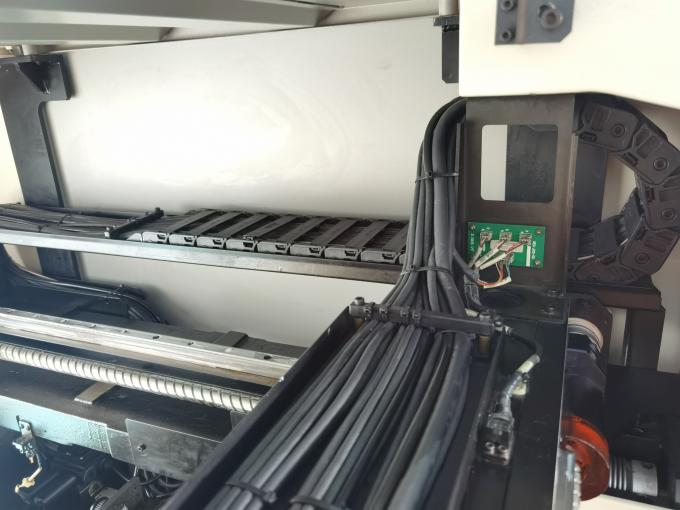

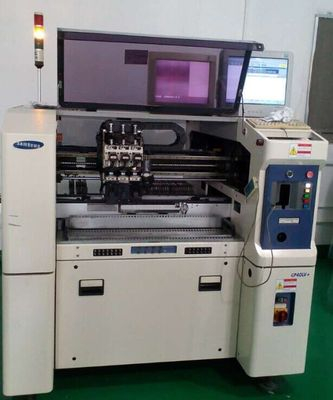

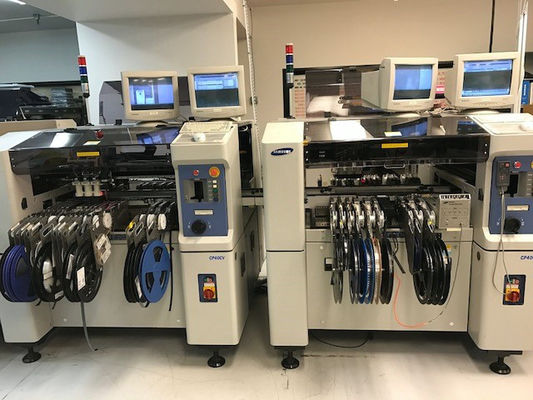

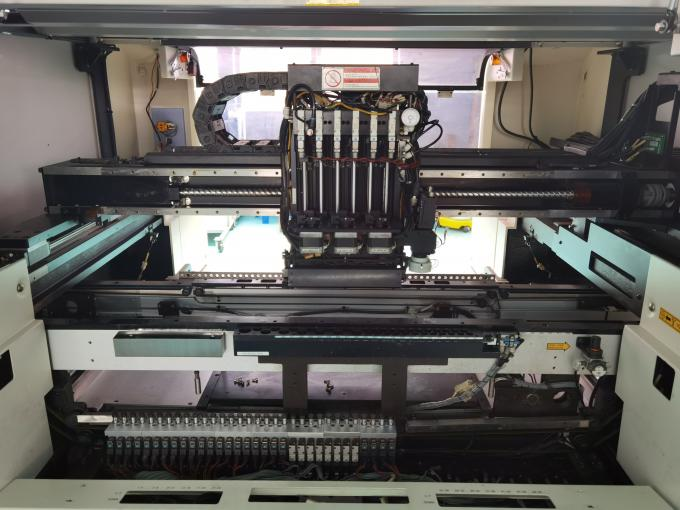

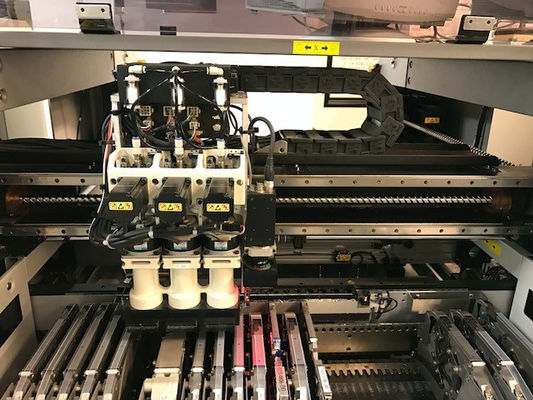

Product show
