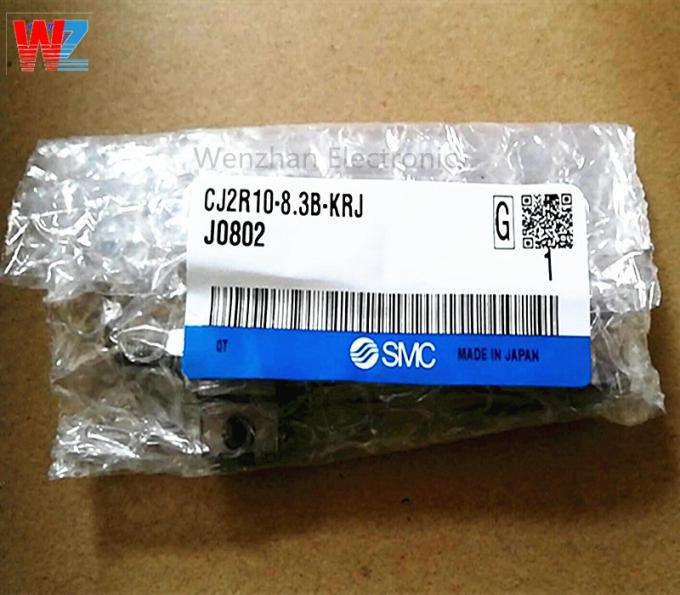

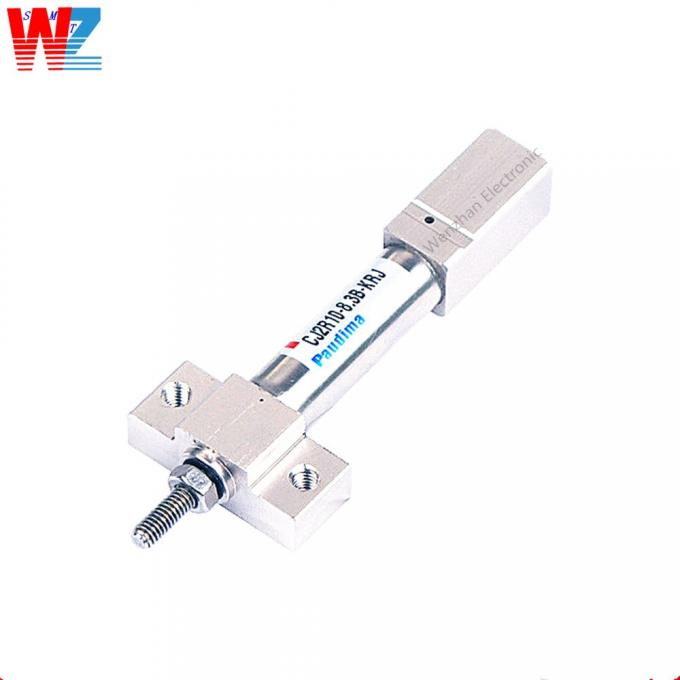

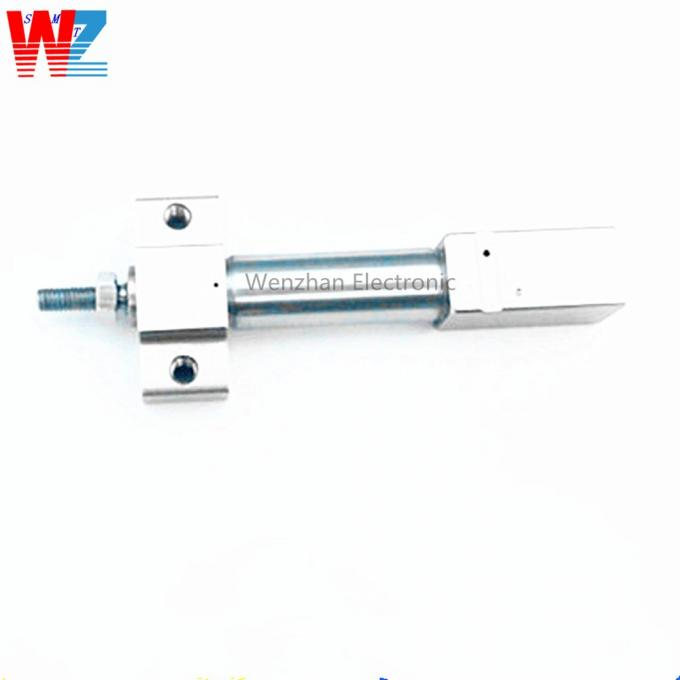

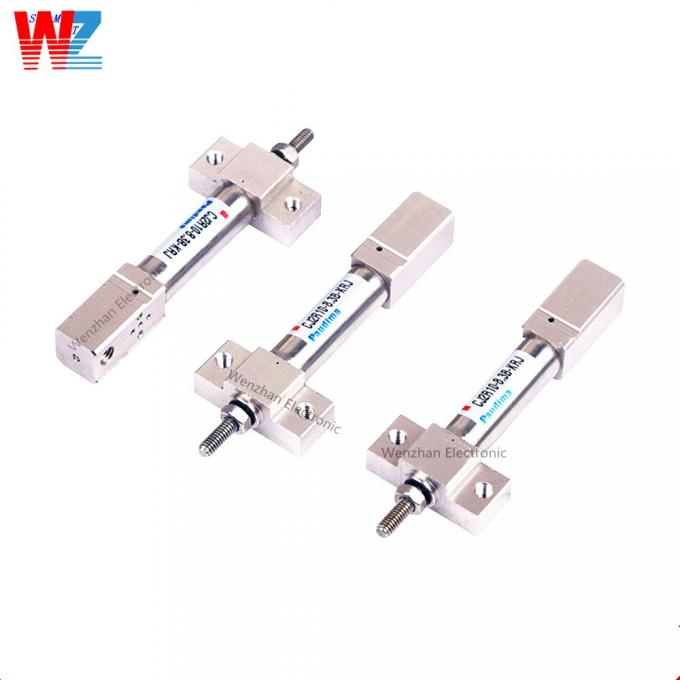

Samsung SM 8mm Feeder Cylinder CJ2R10-8.3B-KRJ J0802
About This Samsung SM 8mm Feeder Air Cylinder
Feeder cylinder CJ2R10-8.3B-KRJ is the pneumatic actuator that works a Samsung SM series 8mm tape feeder, and this listing carries a second, shorter code for the same item: J0802. The address of this page writes that code as J-J0802, so a search on either the long number or the short one arrives at the one part.
Feeders of this type are repaired on the bench rather than retired, and the cylinder is one of the items that gets swapped in the course of that work. Three supply states are quoted for it, and the values held for the part are set out below.
Cylinder Parameters & Listing Specifications
- Name: SAMSUNG SM 8MM FEEDER CYLINDER CJ2R10-8.3B-KRJ
- Model: SM 8MM FEEDER CJ2R10-8.3B-KRJ
- Part Number: CJ2R10-8.3B-KRJ
- Quality: 100% Tested
- Brand: SAMSUNG
- Specification: Smt Pick And Place Machine Parts
- Condition: Original New/used And Copy New
- Warranty: 1 Year
- Package: Carton Box With Foam Protect
- Delivery: Ups,dhl,fedex,as Required
- Stock: large
- Payment: T/T before shipment
- Shipment: on-time shipment
Tape Indexing Mechanism & Machine Compatibility
On an 8mm feeder the cylinder is the part that moves the tape on. Its rod strokes out and comes back on each feeder cycle, and that travel is what carries the pocket tape forward to the position where the head picks. The rod works at that rate all shift, which makes the cylinder a wearing item, and roughness or a leak in the bore is felt at the tape rather than seen at the cylinder itself.
Fit is settled by the number rather than by looks. Labels on tape-feeder cylinders are close enough in appearance that a comparison on the bench can mislead, so quote CJ2R10-8.3B-KRJ, or the code J0802, and the item is checked against the feeder being repaired.
Where the plate on a feeder has worn past reading, a photograph of the cylinder together with the feeder body is enough to identify the item.
Pneumatic Cylinder Quality, Condition Grades & Protective Packaging
Three states are quoted for this cylinder: Original New, an original unit that has already seen service, and Copy New. Each is priced separately, so name the state with the enquiry and the figure is given for that one.

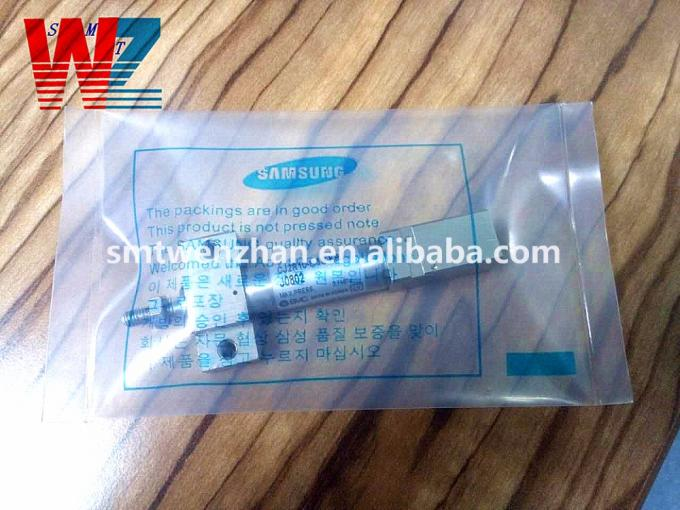

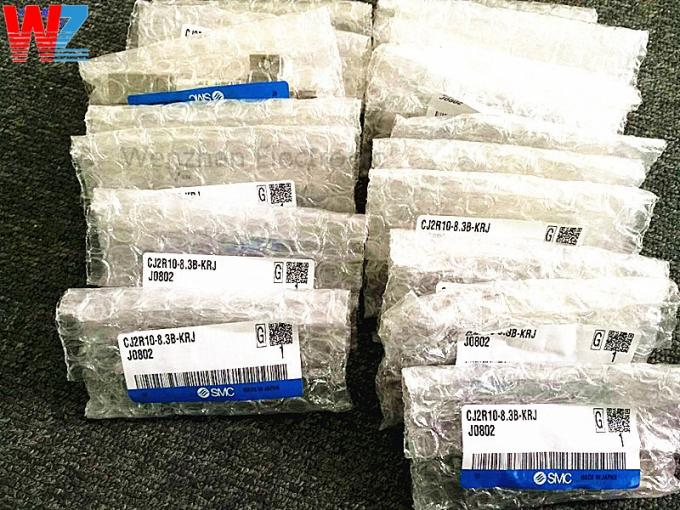

Quality is recorded as 100% Tested. The cylinder is packed in a carton with foam around it and goes out on UPS, DHL or FedEx as the order asks.
This part is not listed with a bore value, a stroke figure, a working air pressure or a port thread. Those come from the marking on the unit being replaced; send a photograph of it and the figures are confirmed for your feeder.
So many kinds of cylinders with high qulity and resonable price...
Frequently Asked Questions On The 8mm Feeder Cylinder
Q1: What is J0802?
A: It is the short code for the cylinder on this listing. The full number is CJ2R10-8.3B-KRJ, and either one identifies the same part.
Q2: Will it suit the feeder I am repairing?
A: It is quoted for Samsung SM series 8mm tape feeders. Give the number and the feeder model and the item is checked against them.
Q3: What does this cylinder do?
A: Its rod strokes with each feeder cycle, and that movement is what moves the pocket tape on to the pick position.
Q4: Which supply states can I buy?
A: Original New, an original unit that has seen service, and Copy New. Name the state you want so that it can be priced.
Q5: Are the bore, stroke and air pressure given?
A: No, they are not given for this part. Send a photograph of the unit being replaced with the feeder model, and the bore, stroke and pressure are confirmed.
Q6: How does the cylinder travel?
A: In a carton with foam around it, on UPS, DHL or FedEx as the order asks.
Inquiry Sourcing & Feeder Parts Support
- Company: WEN ZHAN Technology
- Tel / WhatsApp: +86 18823383970
- E-mail: wenzhanhucai@163.com
Send the feeder model together with CJ2R10-8.3B-KRJ or J0802, the supply state and the quantity, and a quotation is issued for that set of details.
