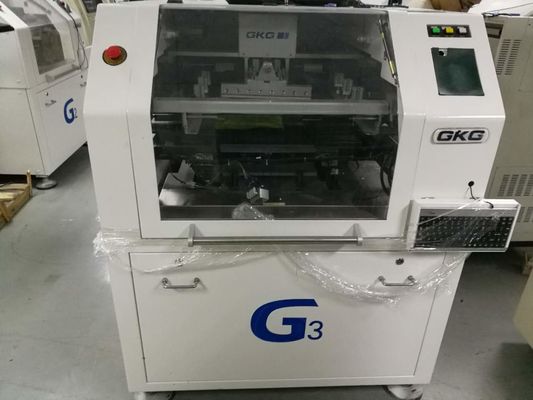

original SMT AOI Machine GKG G3 G6 Solder Paste Printer
Absolutely! Let me introduce you to the GKG G3 solder paste printer and provide instructions on how to use it.
The GKG G3 solder paste printer is a high-precision machine used in the electronics manufacturing industry to apply solder paste onto printed circuit boards (PCBs) for surface mount technology (SMT) assembly.
The GKG G6 solder paste printer is a sophisticated and advanced machine used in the electronics manufacturing industry for applying
solder paste onto printed circuit boards (PCBs) before component placement. This innovative printer offers a range of features and capabilities
to meet the high demands of modern electronic assembly processes.
Key features of the GKG G3:
1. Precision Printing: The GKG G3 offers exceptional printing accuracy, ensuring precise deposition of solder paste on PCBs.
2. Stencil Alignment System: It is equipped with an advanced stencil alignment system that aligns the stencil with the PCB, enabling accurate paste application.
3. Vision System: The machine incorporates a sophisticated vision system, which helps in aligning the stencil and PCB, as well as inspecting the solder paste deposition quality.
4. Automatic Print Control: It features automatic print control mechanisms, such as squeegee pressure, speed, and angle adjustments, allowing for consistent and controlled printing results.
5. User-Friendly Interface: The GKG G3 is designed with a user-friendly interface, making it easy to operate and configure for different PCB designs.
6. Quick Setup and Changeover: The machine facilitates quick setup and changeover between different PCBs, minimizing downtime and increasing productivity.
7. Stencil Cleaning System: It includes a stencil cleaning system to remove residual solder paste, ensuring stencil longevity and maintaining printing quality.
8. Data Management: The GKG G3 offers data management capabilities, allowing the storage and retrieval of printing parameters and settings for different PCB projects.
Here's a step-by-step guide on using the GKG G3 solder paste printer:
1. Prepare the PCB and Stencil: Ensure that the PCB is clean and securely positioned on the printer's fixture. Align and secure the stencil on top of the PCB using the alignment system.
2. Solder Paste Preparation: Prepare the solder paste according to the manufacturer's instructions. Ensure the paste is at the optimal temperature and viscosity for printing.
3. Machine Setup: Power on the GKG G3 and configure the necessary settings, such as squeegee pressure, speed, and stencil alignment parameters.
4. Vision System Calibration: Calibrate the vision system by aligning fiducial marks on the stencil and PCB. This ensures accurate alignment and printing.
5. Programming: Create or load a program that specifies the printing parameters, such as speed, pressure, and stencil separation distance.
6. Start Printing: Initiate the printing process, and the machine will automatically apply the solder paste onto the designated pads on the PCB. Monitor the process for any anomalies.
7. Inspection: After printing, inspect the solder paste deposition quality using the vision system, ensuring accurate alignment and proper paste volume.
8. Repeat the Process: If additional PCBs need to be printed, repeat steps 1 to 7 until the desired production quantity is achieved.
Please refer to the manufacturer's user manual for specific instructions on operating the GKG G3 solder paste printer.
I hope this guide helps you! If you have any further questions, feel free to ask.
