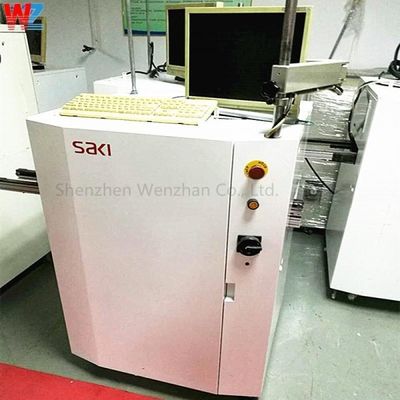

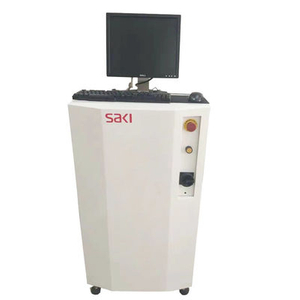

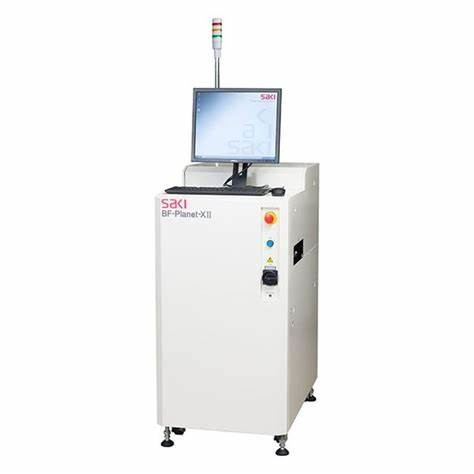

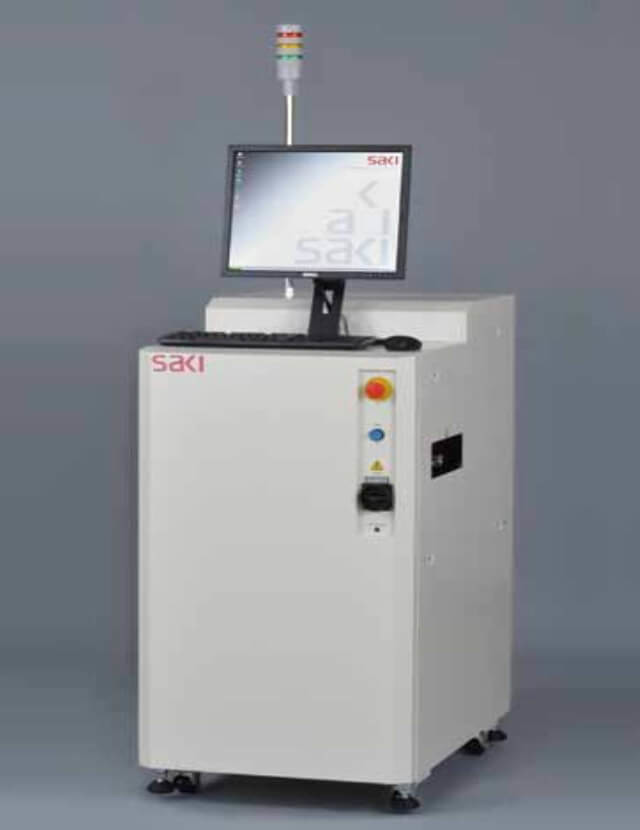

Product description: Saki AOI Machine BF-Planet-XII with Automated Optical Inspection System Apply to Widely PCB Size
| Place of Origin | Japan |
|---|---|
| Brand Name | Saki |
| Model Number | BF-Planet-XII |
| Name | Saki Inline AOI BF-Planet-XII |
| PCB Size | 50*60 - 250*330mm(2*2.4 - 10*13in) |
| PCB Thickness | 0.6 - 3.2mm(24 - 126mils) |
| Resolution | 10μm |
| Board Warp | +/-2mm, 79mils |
| PCB Clearance | Top: 40mm, 1.57in; Bottom: 40mm, 1.57in |
| Rotated Component Support | Available for 0 - 359°rotation |
| Tact Time | Approx. 18sec |
| Image Scanning Time | Approx. 9sec. |
| Operating System | Windows XP English Version |
| Dimension | 600x915x1270mm |
| Weight | 275K |
