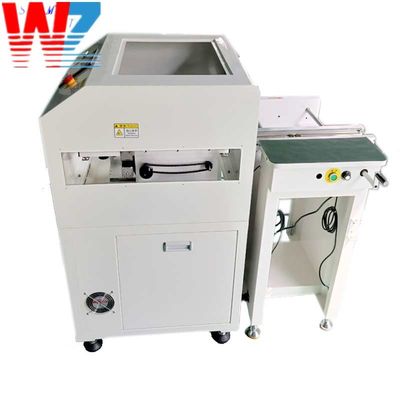

PCB Translation Type Conveyor 90 Degree Transfer Conveyor Machine For SMT Production Line

Product Details

Place of Origin: China

Brand Name: wenzhan

Model Number: Translation Type Conveyor

Payment & Shipping Terms

Minimum Order Quantity: 1pcs

Price: Negotiable

Packaging Details: 1.Wooden case and vacuum package 2.As your requirements

Delivery Time: 3-5 days

Payment Terms: T/T, Western Union, Paypal, Credit card

Supply Ability: 5000

Get Best Price
Highlight:

PCB Translation Type Conveyor

,

SMT Line Translation Type Conveyor

,

90 Degree Transfer Conveyor Machine

Product Name:
Translation Type Conveyor Turn Over Machine
Brand:
Wenzhan
Model:
SMT330
Translation Distance:
100mm
The Maximum PCB Size:
460 * 330mm
Dimensions:
L800 * W800 * H1200
Length:
500mm
Weight (Kg):
150
Product Name:
Translation Type Conveyor Turn Over Machine
Brand:
Wenzhan
Model:
SMT330
Translation Distance:
100mm
The Maximum PCB Size:
460 * 330mm
Dimensions:
L800 * W800 * H1200
Length:
500mm
Weight (Kg):
150
PCB Translation Type Conveyor 90 Degree Transfer Conveyor Machine For SMT Production Line

Translation Type conveyor Turn over machine PCB 90 degree transfer conveyor machine for SMT Production Line



The PCB 90-degree transfer conveyor is a specialized equipment used in the electronics manufacturing industry for the efficient and precise transfer of printed circuit boards (PCBs) at a 90-degree angle. It offers a range of functionality and features that enhance workflow efficiency, space optimization, and production flexibility.


I. Basic functions
It is used for the 90-degree corner of the SMT production line. After receiving the signal from the lower-level machine, it automatically turns the PCB board 90-degrees and flows to the lower-level machine.
Technical parameters
1) Dimensions: L700 * W700 * H1100
2) The length of the guide rail is 500mm, and the width adjustment range is 50 ~ 330mm
3) The maximum PCB size is L460 * 330mm
4) The height of the guide rail from the ground is 920 ± 30mm
5) Translation distance is 100mm
6) Maximum swing F diameter 650mm
7) The belt is a 7mm flat belt, and the PCB conveying speed is 9M / Min
8) Air source is 4 ~ 6kg; power source is 220V AC 50HZ / 2A
10) Fully enclosed box shape
11) Rotation and translation are smooth, gentle, and accurate
12) Xinjie PLC control, display and control touch screen operation panel
13) Forward T type setting; 90 ° rotation (forward), use: used in SMT production line
To change the direction of the PCB board to achieve the function of changing the flow direction
14) One set of electric control box.



Device parameters
Dimensions: L800 * W800 * H1200
Rail length: 500mm
Width adjustment range 50-390mm
Maximum pcb size L460*390MM
guide rail ground height 920+=30MM
translation distance 100MM
Maximum Swing diameter 650MM
belt 7MM
pcb transfer speed 9M/MIN
power supply 200V AC 50HZ/2A


Functionality:

1. Smooth and Precise Transfer: The PCB 90-degree transfer conveyor is designed to transfer PCBs smoothly and accurately at a 90-degree angle. It utilizes conveyor belts, rollers, or other mechanisms to ensure precise alignment and positioning of the PCBs during the transfer process. This feature minimizes the risk of PCB damage or misalignment, maintaining product integrity.
2. Space Optimization: The conveyor is designed to optimize space utilization in the production line. It allows for the efficient reorientation of PCBs, enabling the assembly line layout to be compact and space-efficient. This is particularly useful when dealing with limited floor space or when integrating multiple processes within a confined area.
3. Adjustable Transfer Speed: The machine provides operators with the ability to adjust the transfer speed according to production requirements. This flexibility allows for seamless integration with upstream and downstream processes, ensuring smooth workflow coordination and preventing bottlenecks or congestion in the assembly line.
4. Flexibility in PCB Size and Orientation: The PCB 90-degree transfer conveyor can accommodate a wide range of PCB sizes and orientations. It is adjustable to handle different PCB dimensions, such as rectangular or square shapes, and can transfer PCBs with components mounted on either side. This versatility enables the handling of diverse PCB types and minimizes the need for manual intervention.
5. Integration with Other Equipment: The conveyor system can be integrated with other automated equipment, such as pick and place machines, inspection systems, or reflow ovens. This integration allows for seamless transfer of PCBs between different processes, optimizing production efficiency and reducing manual handling.

Usage Range:
The PCB 90-degree transfer conveyor finds applications in various areas within the electronics manufacturing industry, including:

1. Assembly Line Transfers: It serves as a key component in assembly lines where PCBs need to be transferred at a 90-degree angle. The conveyor enables the smooth transition of PCBs between different workstations or processes, ensuring efficient workflow coordination and minimizing production disruptions.
2. PCB Inspection and Testing: The conveyor system is utilized in inspection and testing processes. It facilitates the movement of PCBs from the assembly line to inspection stations or testing equipment, allowing for thorough quality control checks, such as visual inspection, automated optical inspection (AOI), or functional testing.
3. Change of Direction in Production Line: The conveyor system is employed when there is a need to change the direction of the PCB flow within the production line. It enables seamless reorientation of PCBs, ensuring efficient utilization of space and optimizing the layout of the assembly line.
4. Integration with SMT Equipment: The PCB 90-degree transfer conveyor can be integrated with surface mount technology (SMT) equipment, such as pick and place machines or reflow ovens. It facilitates the transfer of PCBs between different SMT processes, supporting continuous and automated assembly operations.
5. Compact Production Line Layout: The conveyor system is particularly useful in situations where space is limited. Its ability to efficiently transfer PCBs at a 90-degree angle allows for a more compact layout of the assembly line, optimizing floor space utilization and improving overall production efficiency.

The PCB 90-degree transfer conveyor plays a crucial role in the smooth and efficient transfer of PCBs during the electronics manufacturing process. It ensures precise alignment, space optimization, and integration with other equipment, contributing to improved workflow efficiency, reduced manual handling, and enhanced productivity.
