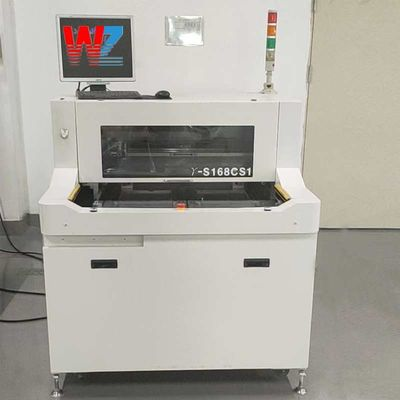

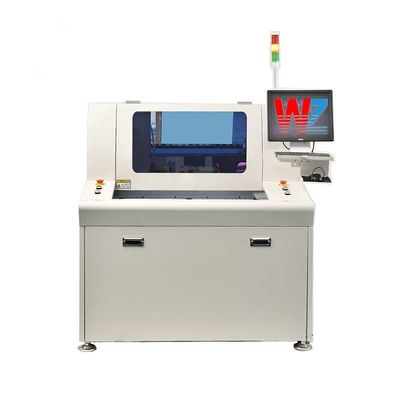

High Precision PCB Depaneling Cutter Off Line Multi Blades Automatic

Product Details

Place of Origin: China

Model Number: Y-S168CS1

Payment & Shipping Terms

Minimum Order Quantity: 1pcs

Price: Negotiable

Packaging Details: 1.Wooden case and vacuum package 2.As your requirements

Delivery Time: 3 days

Payment Terms: T/T, Western Union, Paypal, Credit card

Supply Ability: 3000

Get Best Price
Highlight:

Multi Blades PCB Depaneling Cutter

,

Off Line PCB Depaneling Cutter

,

High Precision pcb depaneling equipment

Product Name:
Off-line Multi Blades Automatic PCB Depaneler Machine
MODEL:
Y-S168CS1
Dimension(L*W*H):
1270mm*1200mm*1850mm
Single Table Cutting Range:
330MM*360MM*50MM
Principal Axis:
XONJE/ Kavos (optional)
Spindle Tool:
Diameter 0.8mm~3mm
Air Pressure:
5kg/cm2
Machine Weight:
700kg
Product Name:
Off-line Multi Blades Automatic PCB Depaneler Machine
MODEL:
Y-S168CS1
Dimension(L*W*H):
1270mm*1200mm*1850mm
Single Table Cutting Range:
330MM*360MM*50MM
Principal Axis:
XONJE/ Kavos (optional)
Spindle Tool:
Diameter 0.8mm~3mm
Air Pressure:
5kg/cm2
Machine Weight:
700kg
High Precision PCB Depaneling Cutter Off Line Multi Blades Automatic

High precision Off-line Multi Blades Automatic PCB Depaneler Machine PCB Cutting Machine Separator Depanelizer



Y-S168CS1 Depanelizer series mainly uses the high-speed operation of milling cutter, dual platform four-axis servo drive to separate the multi connected PCB, according to the pre programmed path, replacing the manual breaking or V-CUT or push cutting defects, stress damage, improving product quality and reducing scrap rate. The machine adopts man-computer interface and AC servo motor.



WIN7 system operating interface. It uses high-pixel CCD production program to teach and edit the cutting path. It can be modified and simulated in a single step. It uses two servo moving platforms. As a PCB exchange device for upper and lower substrates, it can effectively reduce the idle time of the machine, thereby achieving higher production efficiency and quality. The software has MAKE compensation, same workbench duplication, double workbench duplication, equipped with large, medium and small three windows for more precise programming, adding a rectangular frame on the basis of the original target, programming is more intuitive and accurate programming, MAKE geometric alignment is automatically captured, The two tables are completely independent of parameters. Compared with the traditional three-axis machine, the response is faster, the parameters are more independent, the efficiency is higher, and the cutting accuracy is more guaranteed.



Visual system:
High-pixel color CCD and large magnification lens can assist program teaching and editing simulation functions. The automatic MARK positioning and correction system improves the cutting accuracy and prevents the board from being damaged due to the board not being in place. It is faster to copy left and right programs and switch models. Optional barcode reading function to realize 1D/2D barcode reading and save or upload, which is convenient for traceability and digital management.



High-speed spindle:
The imported high-speed spindle uses the German SycoTec(Kavo) spindle motor widely used in the industry's high-end splitters. The spindle has a high speed(60000rpm/min), long service life, convenient assembly and disassembly, and a smooth cutting surface without burrs and defects. It is also equipped with the original SycoTec 4424 Spindle frequency converter, which allows the spindle motor to have a longer service life, higher cutting torque, and the lowest temperature rise effect.



Y-S168CS1 technical parameters
project technical parameter
XYUZ range of motion 875MM*620MM*50MM*50MM
Single table cutting range 420MM*520MM*50MM
Lead screw / guide rail HIWIN screw guide
positioning accuracy ±0. 01mm
servo system Four axis servo motor
principal axis XONJE/ Kavos (optional)
Spindle frequency conversion High speed frequency converter
Spindle speed 2000rpm/min~60000rpm/min
Spindle tool 0.8mm~3mm
Control host Industrial computer
Cutting speed 1mm/sec~100mm/sec
Cutting function It can cut straight lines, arcs and circles
Electrostatic treatment Electrostatic eliminator
Dust collection mode Optional lower dust collection or upper dust collection
Code scanning MES function Support (optional)
Size of dust collector 1050mm*800mm*550mm
Power supply power Three phase five wire 380v 3kw(including dust collector)
air pressure 5kg/cm2
Machine size 1270mm*1200mm*1850mm
machine weight 700kg

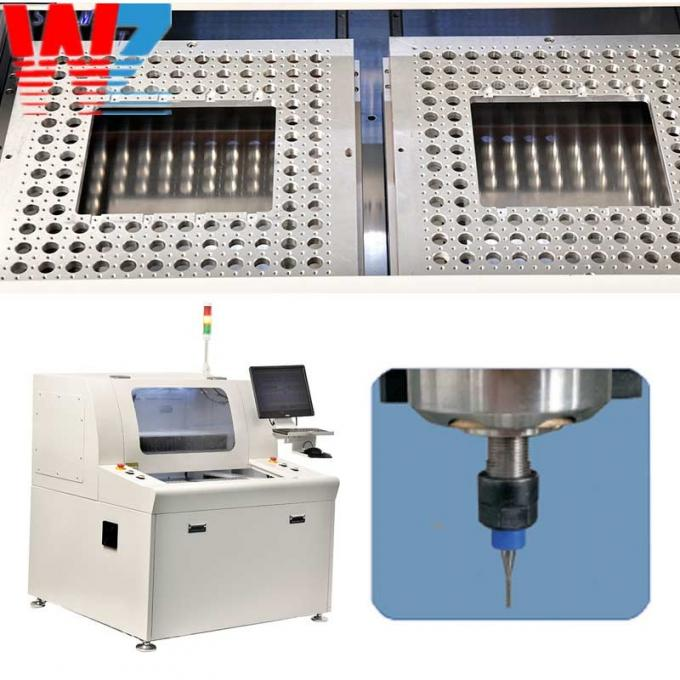

High Precision PCB Depaneling Cutter Off Line Multi Blades Automatic 0

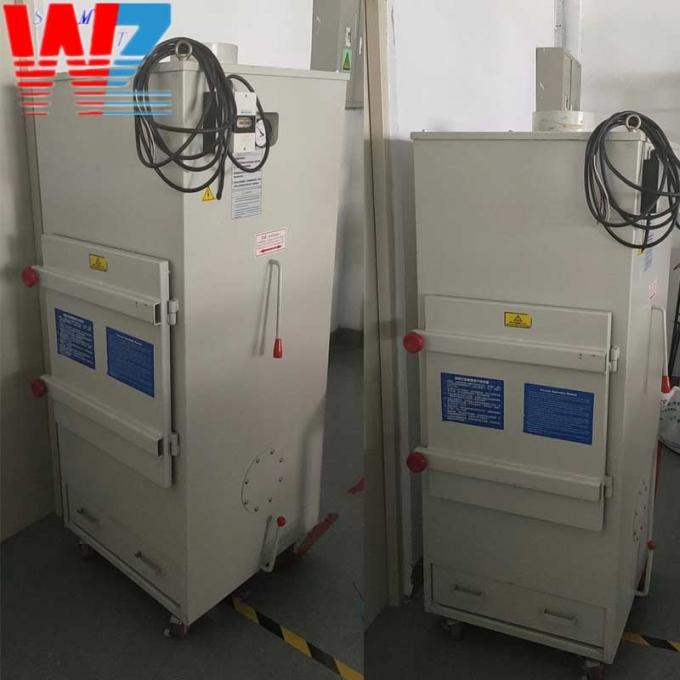

High Precision PCB Depaneling Cutter Off Line Multi Blades Automatic 1
