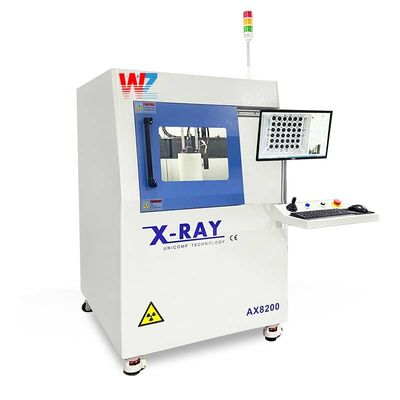

99.9% Accuracy SMT PCB X Ray Inspection Equipment For LED TV Product Line

Product Details

Place of Origin: China

Brand Name: X-Ray

Payment & Shipping Terms

Minimum Order Quantity: 1pcs

Price: Negotiable

Packaging Details: 1.Wooden case and vacuum package 2.As your requirements

Delivery Time: 3 days

Payment Terms: T/T, Western Union, Paypal, Credit card

Supply Ability: 3000

Get Best Price
Highlight:

1.0kw PCB X Ray Inspection Equipment

,

SMT PCB X Ray Inspection Equipment

,

99.9 Accuracy smt x ray machine

Product Name:
PCB X-Ray Inspection Equipment
Model:
X-Ray
Size:
L1080*W1180*H1730mm
Weight:
1050kg
Power:
1.0kw
Voltage:
220VC/50Hz
Tilting Angle:
±60℃
Big Size:
435mm*385mm
Product Name:
PCB X-Ray Inspection Equipment
Model:
X-Ray
Size:
L1080*W1180*H1730mm
Weight:
1050kg
Power:
1.0kw
Voltage:
220VC/50Hz
Tilting Angle:
±60℃
Big Size:
435mm*385mm
99.9% Accuracy SMT PCB X Ray Inspection Equipment For LED TV Product Line

SMT 99.9% accuracy SMT PCB X-Ray Inspection Equipment X Ray Machine for LED TV Product Line





Introduction
X-Ray uses a cathode ray tube to generate high-energy electrons to collide with a metal target. During the collision process, due to the sudden deceleration of the electrons, the lost kinetic energy will be released in the form of X-Ray. For the position of the sample that cannot be detected by appearance, the change of light intensity after X-Ray penetrates materials of different densities is used to record the change of light intensity. Observe the problematic area inside the analyte while destroying the analyte.

What is the principle of X-RAY equipment detection?
The detection principle of X-RAY equipment is basically X-ray projection microscope. Under the action of high voltage, the X-ray emission tube generates X-rays through the test sample (such as PCB board, SMT, etc.), and then according to the density and atomic weight of the sample material itself, and the X-rays will also have different absorption. amount to produce an image on the image receiver. The density of the measured workpiece determines the intensity of the X-ray, and the higher the density, the darker the shadow. The closer the X-ray tube is, the larger the shadow, and vice versa, the smaller the shadow, which is the principle of geometric magnification. Of course, not only the density of the workpiece has an influence on the intensity of X-rays, but also the intensity of X-rays can be adjusted through the voltage and current of the power supply on the console. The operator can freely adjust the imaging situation according to the imaging situation, such as the display size of the image, the brightness and contrast of the image, etc., and can also freely adjust and detect the part of the workpiece through the automatic navigation function.



Features:
The device is cost-effective and supports flexible selection of enhancers and high-definition FPD
The system has 600X magnification for high-definition real-time imaging
User-friendly interface, various functions, and support for graphical results
Support optional CNC high-speed movement automatic measurement function

The standard configuration
●4/2 (optional 6-inch) image intensifier and megapixel digital camera;
●90KV/100KV-5 micron X-ray source;
●Simple mouse click operation to write detection program;
●High detection repeatability;
Rotation and tilt of plus or minus 60 degrees, allowing a unique viewing angle to detect samples;
●High-performance stage control;
●Large navigation window - easy to locate and identify defective products;
●Automatic BGA detection program detects the bubbles of each BGA, makes judgments according to customer requirements and outputs Excel reports.

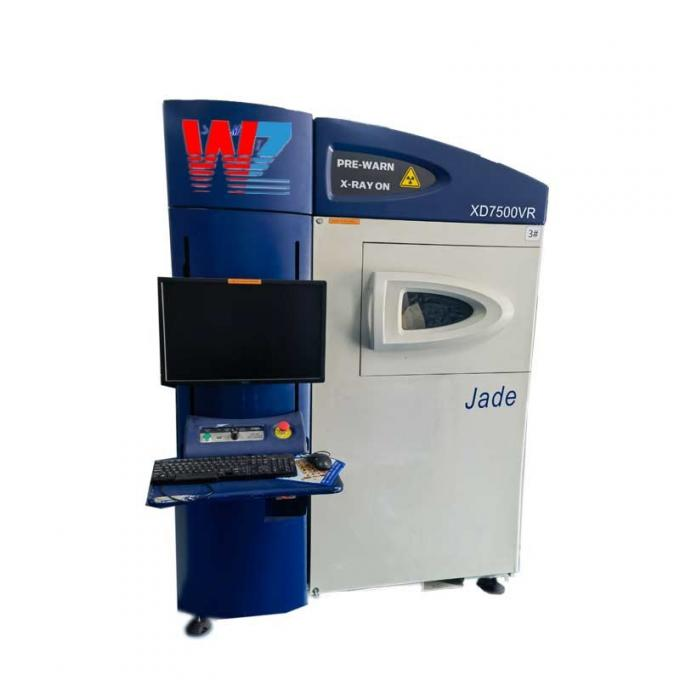

99.9% Accuracy SMT PCB X Ray Inspection Equipment For LED TV Product Line 0



Purpose:
Defect detection of internal cracks and foreign objects in metal materials and parts, plastic materials and parts, electronic components, electronic components, LED components, etc., analysis of internal displacement of BGA, circuit boards, etc.; Defects, microelectronic systems and sealing components, cables, fixtures, internal analysis of plastic parts.



Application range:
IC, BGA, PCB/PCBA, surface mount process solderability testing, etc.
