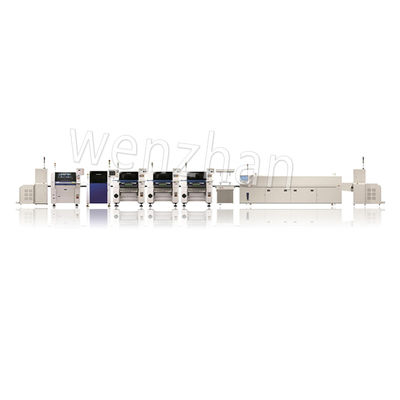

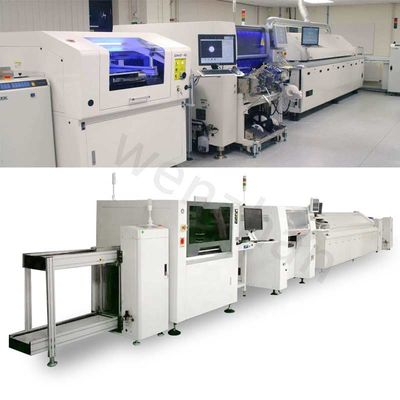

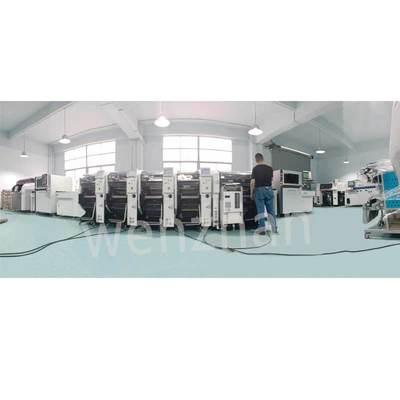

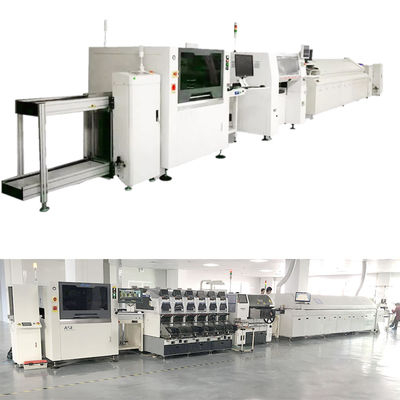

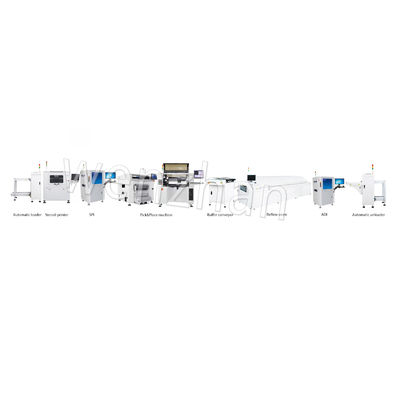

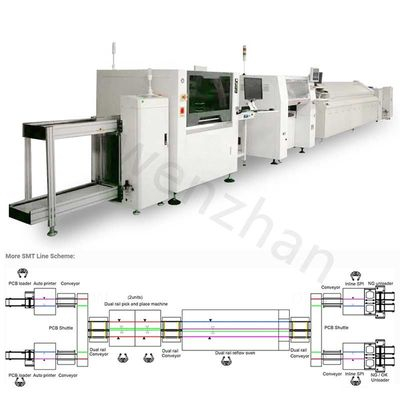

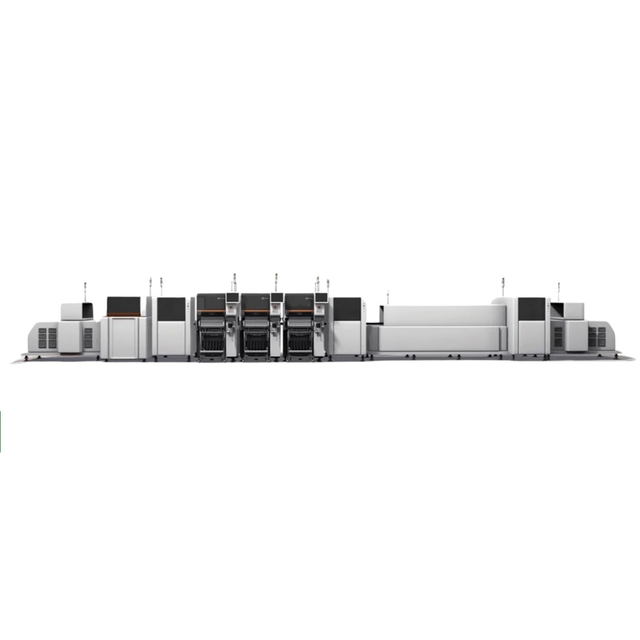

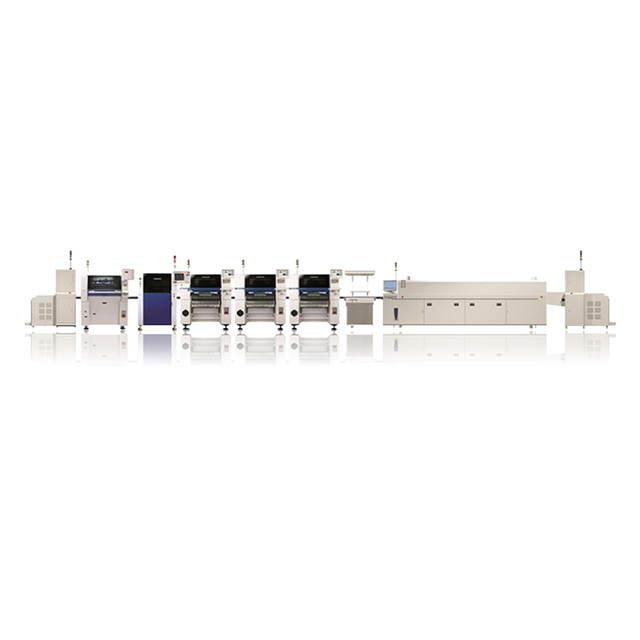

An SMT Line combines several individual processes into a coordinated workflow for printed circuit board or LED assembly. This category includes fully automatic PCB production lines, LED assembly lines, conformal coating or inspection lines, and configurable equipment combinations. The value of the category lies in matching every process and transfer section to one production target instead of purchasing disconnected machines. A typical surface mount line may include PCB loading, solder paste printing, SPI, component placement, board transfer, reflow soldering, AOI, and unloading. Additional operations can include labeling, cleaning, coating, X ray inspection, testing, repair, or material counting. Each station must communicate with its neighbors and have enough capacity to prevent the slowest process from limiting the complete line. Planning should begin with product files, component packages, board dimensions, panel structure, daily output, changeover frequency, solder process, inspection requirements, and traceability goals. The factory layout must account for equipment footprints, operator aisles, material routes, power, compressed air, exhaust, nitrogen, network access, and maintenance space. A line diagram helps identify conveyor lengths, transfer direction, buffer locations, and manual workstations. SMT Line projects can serve consumer electronics, industrial controls, communication equipment, automotive modules, lighting, appliances, power electronics, and contract manufacturing. A high mix line may require flexible machines and efficient feeder preparation, while a volume line may emphasize balanced cycle time and automated data flow. Future products and capacity growth should be considered so the layout does not become restrictive immediately after installation. WenZhan recommends providing a bill of materials, placement data, board drawings, sample product images, target throughput, preferred brands, factory floor plan, utility information, and quality requirements. The proposed SMT Line should then be reviewed process by process, with clear responsibility for equipment configuration, interfaces, tooling, software, acceptance, installation, and training. This structured approach helps buyers create a workable production system in which printing, placement, inspection, soldering, and board handling support the same output and quality plan.
