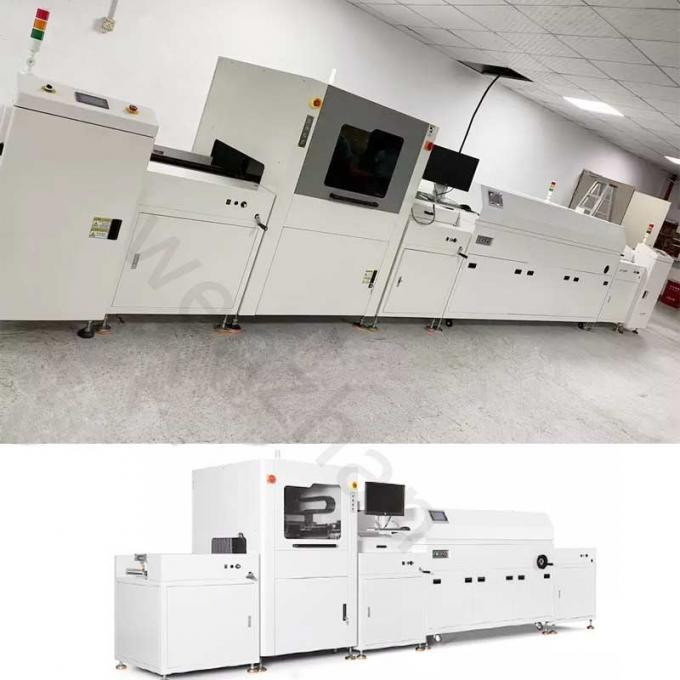

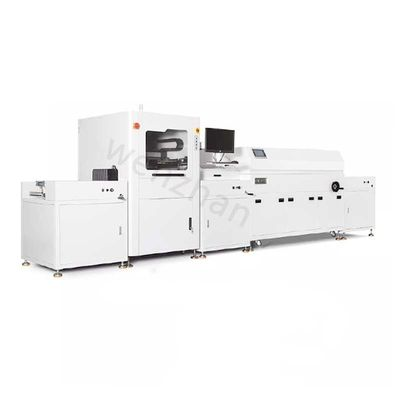

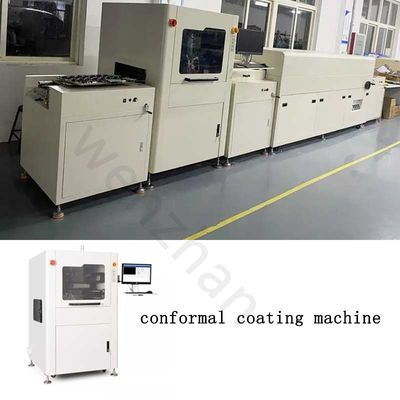

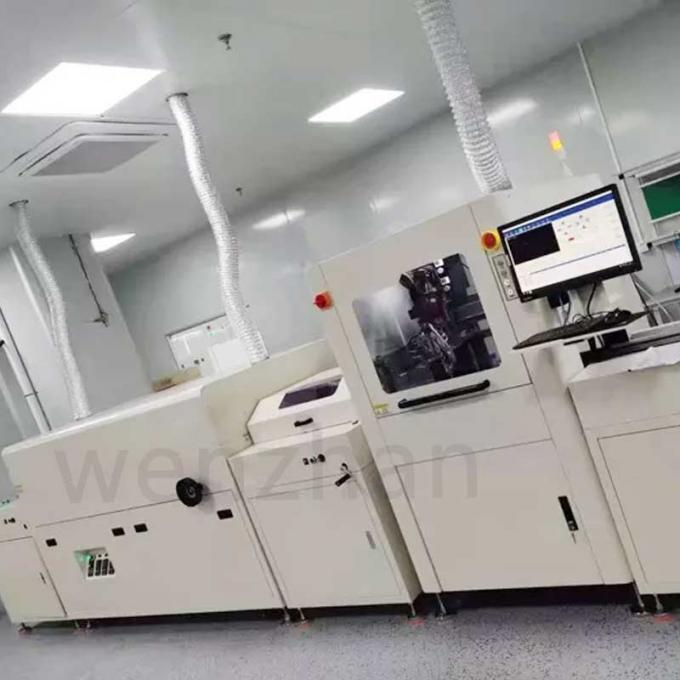

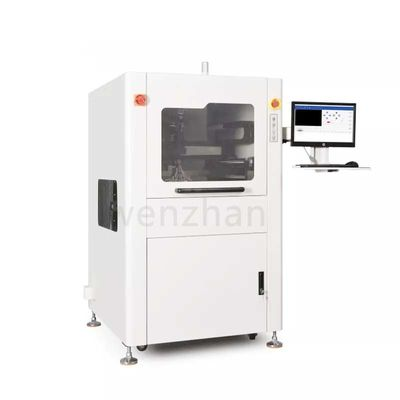

Automated SMT Line Machine PCB Three Axis Conformal Coating Inspection Spray Equipment

High accuracy automated SMT Line machine pcb Three-Axis selective conformal coating inspection spray equipment machine

The equipment is controlled by industrial computer + motion control card
Servo motor + ball screw are used for x.y.z. three axes for repeated positioning Accuracy ± 0.02mm can automatically eliminate errors
Automatic pressing plate function of equipment track to isolate the contact between glue and transport chain
The standard automatic immersion and liquid dispensing device of the valve body can avoid the blockage of the valve body, Convenient and fast maintenance

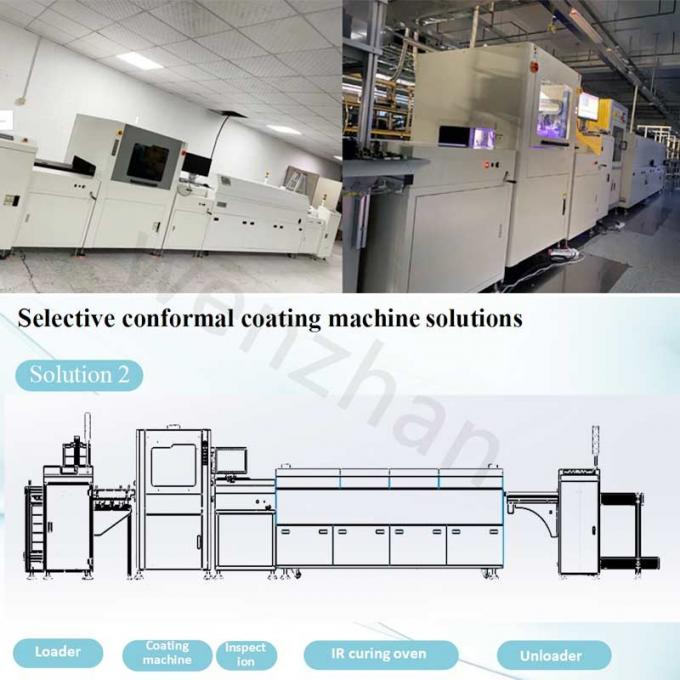

online track design allows online connection with other equipment
parameters such as nozzle moving speed, moving distance and nozzle height can be set to meet different types of spraying requirements.
Standard precision valve, which can realize high-efficiency panel spraying, and is suitable for spraying products with various difficult processes

Features:

1.The equipment adopts industrial computer control, windowssa7 operating system.

2.Driven by servo motor + ball screw, with automatic precision calibration function, which can automatically eliminate errors;

3.The equipment track automatic pressing function, the spraying accuracy is higher, the repeat accuracy is improved, the glue is isolated from contact with the transportation chain, and the maintenance cycle is reduced;

4.It can carry two or more sets of valve bodies at the same time to increase production capacity and realize splicing spraying;

5.Equipped with coating valve automatic soaking and automatic spitting device, which can avoid the clogging of the valve mouth, and the maintenance is convenient and quick;

6.Online track design, which can be connected with other equipment online;

7.Support offline programming and manual teaching programming methods;

8.Configure exhaust gas discharge port

9.Equipped with SMEMA interface to communicate with other devices

10.Optional glue level alarm system

11.Optional CCD visual positioning system

other machine
We are smt support provider for smt machine parts and equipment .such as reflow solder oven, Wave Soldering Machine, Pick and Place Machine, SMT PCB Printer, SMT AOI SPI Machine, SMT Reflow Oven, PCB conveyor , smd counter ,loader & unloader machine ,nozzle / feeder , feeder storage cart smt reel rack , smt grease , solder paste mixer, KIC thermal profiler,smt tape ,SMT Assembly line and so on .

wenzhan Techonologies Co.,Ltd
In 2009, Shenzhen wenzhan Technology Co., Ltd. was established to build a more timely and effective communication platform, and realize the company's service tenet of serving leading customers.The engineers of the company are professional technicians who have been certified by the original factory for more than 10 years. They always adhere to the value of putting the interests of customers first, and provide customers with high-quality equipment accessories, consumables, fixtures and technical support services.

In order to effectively reduce the cost of customers, the company set up a machining plant, and changed most of the feeder parts to self-produced parts, so as to ensure sufficient inventory and reduce the cost of customers at the same time.


exihibition photo:

Why Choose Us?
It is precisely because wenzhan technology has the following advantages over the same industry that
more and more customers choose wenzhan as their preferred supplier.

1. Professional pre-sales advice support

2. Excellent after-sales technical service

3. Flexible payment and return policy

4. One stop solution for SMT accessories

5. Stock in the factory with sufficient stock and fast delivery
