Automatic Magazine PCB Loader Unloader HY-250LD SMT Line
About This Magazine PCB Loader & Unloader System
This is a magazine loader and unloader for SMT and AI assembly lines. A full magazine of bare boards goes in at one end and a magazine of finished boards comes off the other, so panels are moved without an operator picking up each one by hand. Four models are covered here - HY-250LD, HY-330LD, HY-390LD and HY-460LD - which differ in the largest board they accept and in the magazine rack they take.
The loader sits at the head of a line and pushes each board out of the magazine on to the conveyor of the machine downstream. The unloader sits at the end of a line: a board arriving on its own conveyor is pushed into the magazine, the magazine then indexes to the next slot, and the unit is ready for the board behind it.
The brand field is recorded as ODM. The four models are supplied as listed, and a build that departs from them is handled as an ODM requirement - send the specification and it is reviewed before a quotation is put together.
Machine Specifications & Listing Fields
- Product Name: SMT PCB Loader Machine
- Model Number: PCB Loader
- Quality: Top
- Package: Wooden Case
- PCB Delivery Height: 900 +/- 20mm
- Type: SMT Machine
- Brand: ODM
- Air Pressure: 4-6 Bar
- Delivery: Ups,dhl,fedex,as Your Order
- Port: Shenzhen
- Condition: original/copy
- Stock: large
- Payment: L/C T/T D/P Western Union Paypal Money Gram And Others
- Shipment: In three days
- Warranty: 1 year
Four Machine Models & PCB Handling Capabilities
Nine of the parameters are common to all four models:
| Parameter | Value |
| --- | --- |
| PCB delivery height | 900 +/- 20mm |
| Direction | L-R/ R-L |
| Time Feed PCB | Approx 6 seconds or Specify |
| Magazine Change Over time | Approx 20 seconds or Specify |
| Indexing pitch | 1-4(10mm pitch) or Specify |
| Power Source & Consumption | 100. 230VAC 1Ph 300VA max |
| Air Pressure | 4-6 bar |
| Air Consumption | 10 ltr/min max |
| PCB Thickness | 0.4mm min |
The remaining four parameters differ by model:
| Description | HY-250LD | HY-330LD | HY-390LD | HY-460LD |
| --- | --- | --- | --- | --- |
| PCB size(L*W)(MM) | 50*50~350*250 | 50*50~455*330 | 50*50~530*390 | 50*50~530*460 |
| Magazine Rack Size(L*W*H)(MM) | 355*320*565 | 460*400*565 | 535*460*565 | 535*530*565 |
| Machine Dimension | 1100*780*1200 | 1400*860*1200 | 1500*920*1200 | 1600*1120*1200 |
| weight | 140kg | 180kg | 220kg | 250kg |
The model follows the board. HY-250LD takes boards up to 350*250mm, HY-330LD up to 455*330mm, HY-390LD up to 530*390mm and HY-460LD up to 530*460mm. All four accept a board as small as 50*50mm and as thin as 0.4mm. The footprint widens with the model as well, from 1100*780*1200mm on HY-250LD to 1600*1120*1200mm on HY-460LD, so the floor space at the line end is worth checking before the model is settled.
Operating Mechanism, Conveyor Direction & Automation Safety
Boards are moved by a pusher rather than by hand. At the loading end the pusher takes a board out of the magazine and sets it on to the downstream conveyor; at the unloading end the pusher takes a board off the incoming conveyor and sets it into the magazine. Transfer direction is selectable, left to right or right to left, so a unit can be put at either end of a line without being rebuilt.
The magazine indexes to the next slot after every board, which is what keeps the cycle running without attention. The safety design is aimed at preventing a board from being broken as it is pushed, and the control set carries automatic counting and a fault alarm, so a full magazine or a transfer fault is signalled at the machine rather than found further down the line. Indexing pitch is selectable, which lets the slot spacing be matched to the board thickness and to the magazine in use.
Supply at the machine is single phase with a maximum consumption of 300VA, and the air line runs at 4-6 bar using up to 10 ltr/min.
Quality Standards, Available Conditions & Industrial Packaging
Quality is recorded as Top on this number. Two conditions are offered, original and copy; specify the condition your order needs, and the quotation is prepared against it.
The machine is offered in a wooden case and travels on the carrier named on the order. Payment terms are listed as L/C, T/T, D/P, Western Union, Paypal, Money Gram and others. Terms for a particular order come with the quotation, so if the board size, the magazine type or the line end is already fixed, send those details and the order terms are set out for that machine.
| Description | HY-250LD | HY-330LD | HY-390LD | HY-460LD |
| PCB delivery height | 900 +/- 20mm | |||
| Direction | L-R/ R-L | |||
| PCB size(L*W)(MM) | 50*50~350*250 | 50*50~455*330 | 50*50~530*390 | 50*50~530*460 |
| Time Feed PCB | Approx 6 seconds or Specify | |||
| Magazine Change Over time | Approx 20 seconds or Specify | |||
| Indexing pitch | 1-4(10mm pitch) or Specify | |||
| Power Source & Consumption | 100. 230VAC 1Ph 300VA max | |||
| Air Pressure | 4-6 bar | |||
| Air Consumption | 10 ltr/min max | |||
| PCB Thickness | 0.4mm min | |||
| Magazine Rack Size(L*W*H)(MM) | 355*320*565 | 460*400*565 | 535*460*565 | 535*530*565 |
| Machine Dimension | 1100*780*1200 | 1400*860*1200 | 1500*920*1200 | 1600*1120*1200 |
| weight | 140kg | 180kg | 220kg | 250kg |
We have full range of SMT pick and place machine For FUJI,JUKI,SAMSUNG,YAMAHA, and so on,feeder, nozzle,smt pick and place machine,PCB Conveyor,

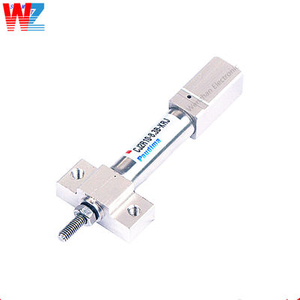

cylinder,and vibration feeder,anything you need ,just tell me!
SMT lubricating oil

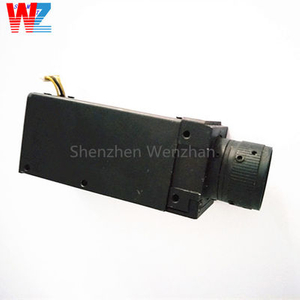

SMT parts

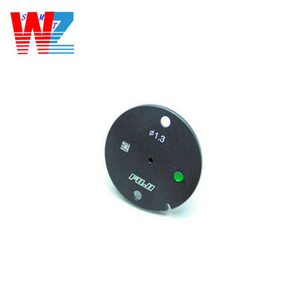

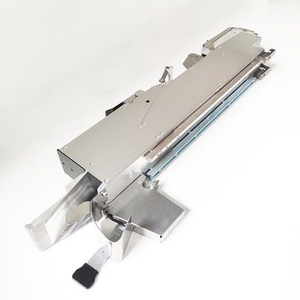

Nozzle and feeder
SMT belt and other parts in the machine
Frequently Asked Questions On The PCB Loader Unloader
Q1: How many models are there and how do I pick one?
A: Four. HY-250LD takes boards up to 350*250mm, HY-330LD up to 455*330mm, HY-390LD up to 530*390mm and HY-460LD up to 530*460mm.
Q2: Does one unit both load and unload?
A: The loader pushes boards on to the line and the unloader pushes boards into a magazine. Say which end of the line the unit will stand at.
Q3: Which way does it feed?
A: Either way. Direction is set L-R or R-L.
Q4: What supply does it need?
A: Single phase with 300VA maximum consumption, and 4-6 bar air at up to 10 ltr/min.
Q5: What board thickness and smallest board size are accepted?
A: 0.4mm minimum thickness, and 50*50mm minimum board size on all four models.
Q6: How does the machine ship?
A: It travels in a wooden case, and shipment is given as three days on this number. The schedule for a specific order comes with the quotation.
Order Inquiry & Line Integration Support
- Company: WEN ZHAN Technology
- Tel / WhatsApp: +86 18823383970
- E-mail: wenzhanhucai@163.com
Send the board size, the magazine rack size, the line end the unit will stand at, and the supply available at that point, and the matching model is confirmed with the price.
