HELLER 1936 MK7 Soldering reflow solder oven 1936MK7 Reflow Oven

2022-05-19
 Latest company case about HELLER 1936 MK7 Soldering reflow solder oven 1936MK7 Reflow Oven

HELLER 1936 MK7 Lead Free Hot Air Reflow Soldering



The 1936 MK7 from Heller Industries Inc is a Reflow Soldering Equipment with Heating Zone Length 590 mm, Max Pcb Width 558.8 mm.

main feature
A. Multi-temperature zone design, more temperature control points, to meet the requirements of different temperature curves
B. Effectively eliminate voids, the total void area can be controlled below 1%
C. Efficient production capacity, the average production cycle is 30~60 seconds
D. High-efficiency oil-free vacuum pump unit for shortest depressurization time
E. Efficient flux recovery system to prevent flux residues



latest company case about HELLER 1936 MK7 Soldering reflow solder oven 1936MK7 Reflow Oven  0

latest company case about HELLER 1936 MK7 Soldering reflow solder oven 1936MK7 Reflow Oven  1

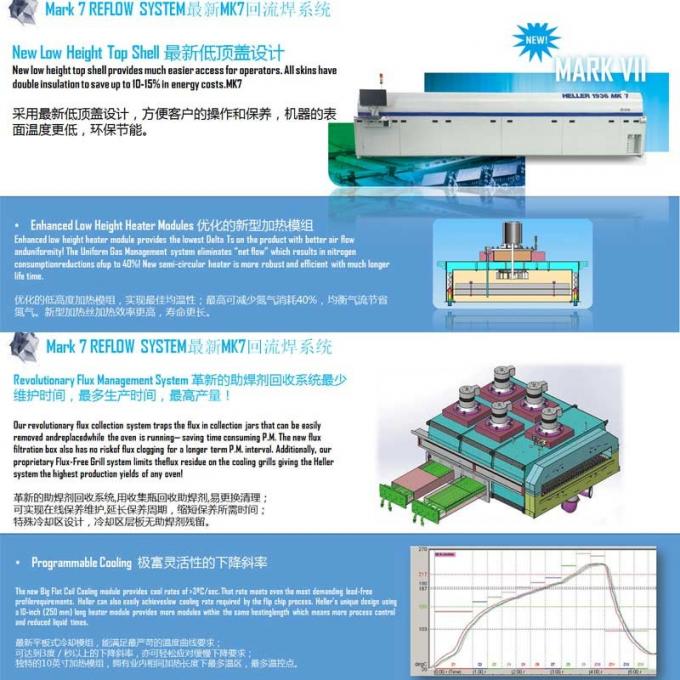

The latest MK7 reflow soldering system
1. The latest low roof design
2. The latest low-top cover design is adopted, which is convenient for customers to operate and maintain. The surface temperature of the machine is lower, which is environmentally friendly and energy-saving.

Optimized new heating module
Optimized low-height heating module to achieve the best temperature uniformity; can reduce nitrogen consumption by up to 40%, balance airflow saving Nitrogen. The new heating wire has higher heating efficiency and longer life.



HELLER 1936 MK7 SMT Reflow Oven
Overall machine length: 590 cm (232″)
Number of heating zones: 10
Number of cooling zones: 3 upper cooling zone (standard) / lower cooling zone and external cooling zone (optional)



HELLER 2043 MK7 SMT Reflow Oven
Overall machine length: 678 cm (267″)
Number of heating zones: 13
Number of cooling zones: 3 upper cooling zone (standard) / lower cooling zone and external cooling zone (optional)



HELLER 2049 MK7 SMT Reflow Oven
Overall machine length: 744 cm (292″)
Number of heating zones: 15
Number of cooling zones: 4 upper cooling zone (standard) / lower cooling zone and external cooling zone (optional)



HELLER 2156 MK7 SMT Reflow Oven
Overall machine length: 869 cm (342″)
Number of heating zones: 17
Number of cooling zones: 5 upper cooling zone (standard) / lower cooling zone and external cooling zone (optional)



latest company case about HELLER 1936 MK7 Soldering reflow solder oven 1936MK7 Reflow Oven  2
