Used Samsung SM471 Pick And Place Machine
Product name: SMT Samsung SM471 pick and place machine
Brand:Samsung
Model: SM411
Specification: Used SMT Samsung SM471 pick and place machine
Condition: original SMT Samsung SM471 pick and place machine
Quality:Top quality
Stock:large
Payment:T/T before shipment
Shipment:on-time shipment
Warranty: 1 year
Delivery:fcarton box with foam protect
About SMT Samsung SM471 pick and place machine
Packing method:
1)Standard box package for light and small item;
2)Strong wood package for heavy and large equipment;
Shipping way:
1)By air,for sample and small package ,worldwide express like DHL,UPS,EMS....
2)By sea, for large package and quantity;
3)By car or other ways as customer requested
Photos Displayedex,ups,dhl,as required

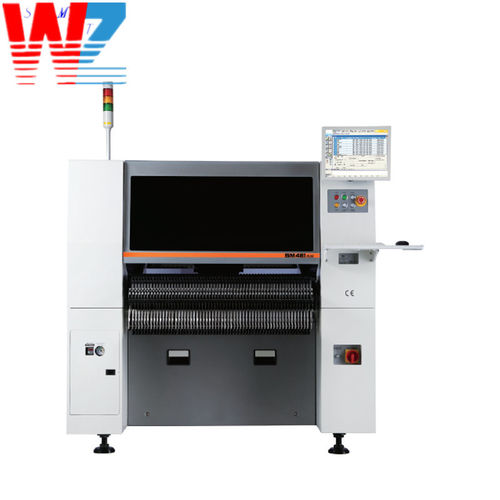

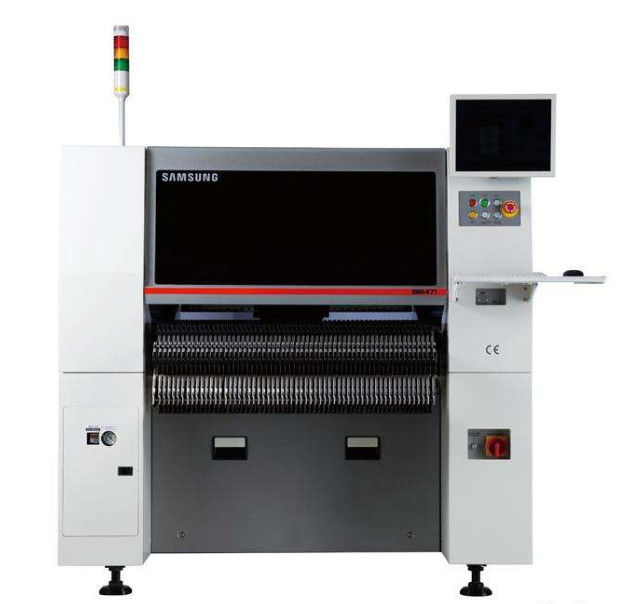

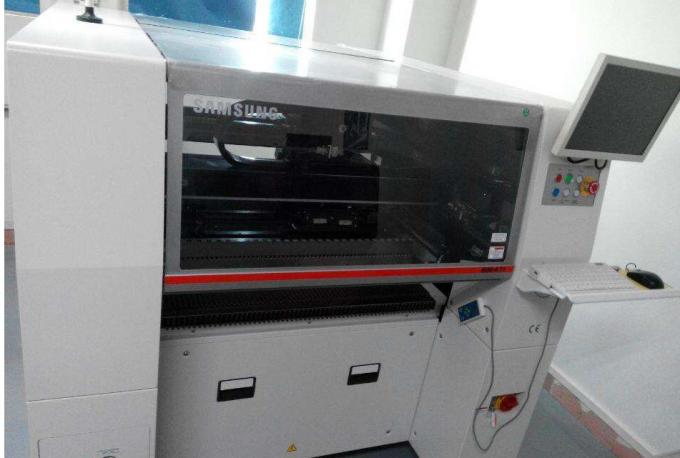

Photos Display
SMT Samsung SM471 pick and place machine
Specification
SPEED: 75,000CPH
2 Gantry x 10 Spindle/Head
accuracy: ±50μm@μ+3σ
system:windows XP
feeder: 120ea
PCB size:50*40*0.38mm---510*460*4.2mm
components range: 0402 (01005) Chip ~ □14mm, 0402，BGA，CSP（Ball Pitch 0.4mm) Max height 12mm
power supply: AC 200/208/220/240/380/415V(50/60Hz,3Phase)Max 5.0KVA
machine size /weight: 1650L*1690D*1485H /1820KG
