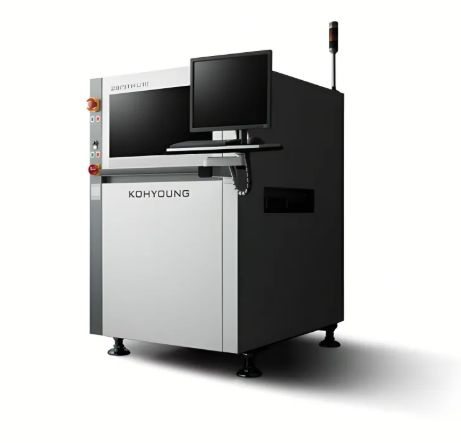

KOH YOUNG Zenith LiTE 3D Optical Inspection System
World Class Full 3D Automated Optical Inspection
Full 3D AOI overcoming the shortcomings of 2D AOI inspection
Minimize shadows problems utilizing 4-way projection
Performs defects diagnosis and root cause removal through real-time 3D data
Fast intuitive programming inspection conditions using parametric approach
Full 3D data-based process optimization solution: Realization of Industry 4.0/ smart factory
Process information DB and real-time remote monitoring
Inspection program management automation and efficiency
Good value model for a variety of production environment
KohYoung's Zenith LiTE Full 3D Automated Optical Inspection Machine. Zenith LiTE Full 3D AOI is designed with fast and intuitive programming inspection conditions using a parametric approach. This machine has a full 3D data-based process optimization solution using-the realization of industry 4.0 / smart factory. Zenith LiTE 3D Automated Optical Inspection machine is the best option and a good value model for a variety of production environments.
Features
- Excellent value model for various production environments
- Fully automatic AOI with Koh Young's patented 3D inspection technology
- Minimizes shadow problems with 4 way projection
- Fast and intuitive programming

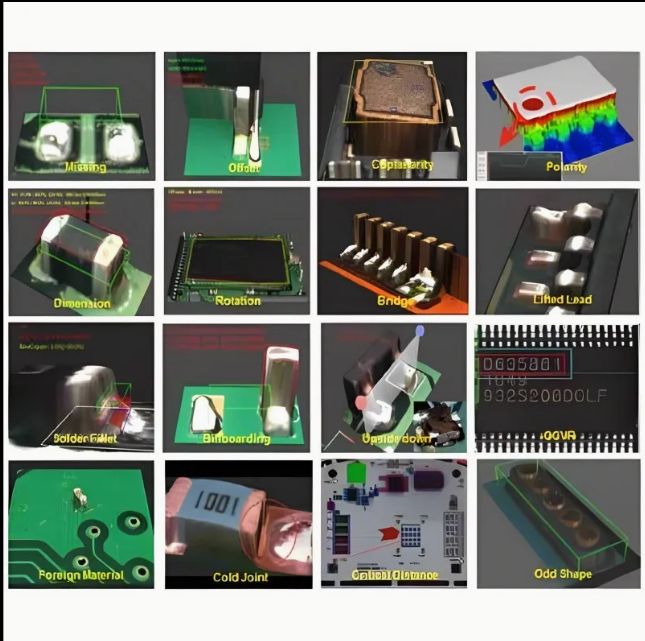

- Reveals a wide range of defects such as scewed or tombstoned components
- Enables Industry 4.0 with the Smart Factory
| KOH YOUNG Zenith LiTE | M | L | DL | XL |
| Max.PCB Size | 330X330mm (13X13inch) | 510X510mm (20X20inch) | Dual:510X320mm (20X12.6inch) Single:510X580mm (20X22.8inch) | 850X690mm (33.4X27.1inch) |
| Min.PCB Size | 50X50mm (1.97X1.97inch) | 70X70mm (2.7X2.7inch) | ||
| PCB Thickness | 0.4~5mm (0.015~0.20inch) | 0.5~8mm (0.02~0.31inch) | ||
| Max.PCB Weight | Ring Belt:2Kg(4.4 lbs),Timing Belt:5Kg(11lbs) | 10Kg(22Ibs) | ||
| Machine Weight | 550Kg(1212lbs) | 600Kg(1322lbs) | 700Kg(1543Ibs) | 850Kg(1874Ibs) |
| Bottom Side Clearance | 50mm(1.97inch) | |||
| Supplies | 200-240VAC,50/60Hz Single Phase,5Kgf/cm² | |||
| W | 820mm(32.2inch) | 1000mm(39.3inch) | 1000mm(39.3inch) | 1350mm(53.1inch) |
| D | 1265mm(49.8inch) | 1265mm(49.8inch) | 1445mm(56.9inch) | 1445mm(56.9inch) |
| H | 1627mm(64inch) | |||
| F | 985mm(38.7inch) | 1165mm(45.8inch) | ||
