| MOQ: | 1pcs |
| Price: | Negotiable |
| Standard Packaging: | 1.Wooden case and vacuum package 2.As your requirements |
| Delivery Period: | 5-8 days |
| Payment Method: | T/T, Western Union, Paypal, Credit card |
| Supply Capacity: | 5000 |
We deeply make sure to provide you the best price and wonderful technique service, whether you are in China
mainland or Asia or Europe or America countries, wenzhan always provide the best smt printer for you.
Product Specification:

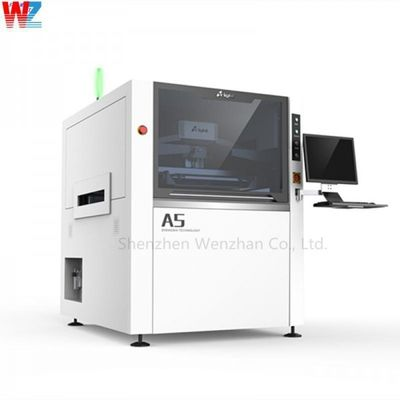

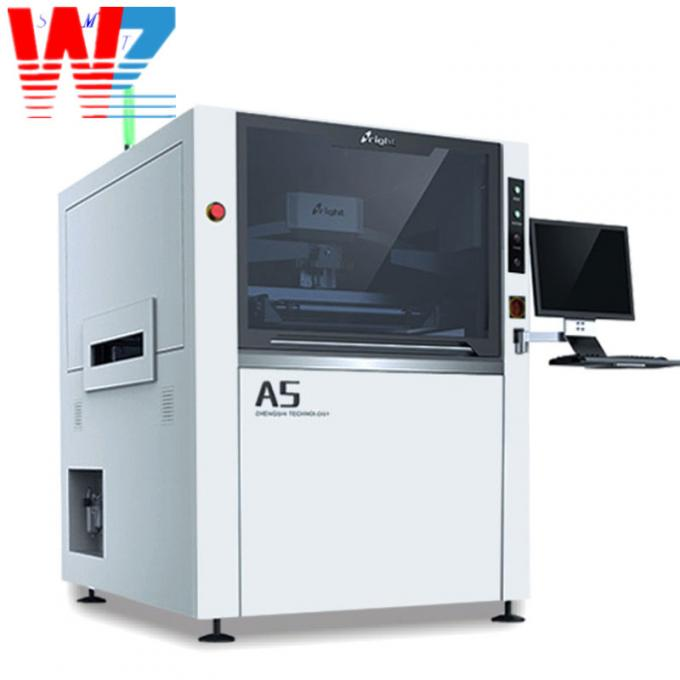

| Model | A5 | ||
| Item | |||
|
Screen Frames
|
Min Size | 470×370mm | |
| Max Size | 737×737mm | ||
| Thickness | 25~40mm | ||
| PCB Min Size | 50×50mm | ||
| PCB Max Size | 400×340mm | ||
| PCB Thickness | 0.4~6mm | ||
| PCB Warpage | <1% | ||
| Transport Height | 900±40mm | ||
| Transport Direction | Left-Right;Right-Left;Left-Left;Right-Right | ||
| Transport Speed | Max 1500mm/s(Programmable) | ||
| PCB The positioning | Support System | Magnetic Pin/Up-down table adjusted/support block | |
| Printer Head | Two independent motorised printhead | ||
| Squeegee Speed | 6~200mm/sec | ||
| Squeegee Pressure | 0~15kg | ||
| Squeegee Angel | 60°/55°/45° | ||
| Squeegee Type | Stainless steel(standard),plastic | ||
| Stencil Separation Speed | 0.1~20mm/sec (Programmable) | ||
| Cleaning System | Dry ,Wet,Vacuum (Programmable) | ||
| Table Adjustment Ranges | X:±10mm;Y:±10mm;θ:±2° | ||
| Machine | |||
| Repeate Position Accuracy | ±0.01mm | ||
| Printing Accuracy | ±0.025mm | ||
| Cycle Time | <7s(Exclude Printing & Cleaning) | ||
| Product Changeover | <5Min | ||
| Air Required | 4.5~6kg/cm2 | ||
| Power Input | AC:220±10%,50/60HZ1F3KW | ||
| Control Method | PC Control | ||
| Machine Dimensions | 1220(L)×1355(W)×1500(H)mm | ||
| Machine Weight | Approx:1000kg | ||
Related Product
We have full range of SMT pick and place machine For FUJI,JUKI,SAMSUNG,YAMAHA,PANASONIC
and so on,feeder,
nozzle,smt pick and place machine,PCB Conveyor,
cylinder,and vibration feeder,anything you need ,just tell me!
The main brand is Fuji YAMAHA Samsung Panasonic SONY heavy machine
1. SMT lubricating oil
2. SMT parts
3. Nozzle and feeder
4.SMT PRINTER,PICK AND PLACE MACHINE,REFLOW
5. SMT belt and other parts in the machine
6.WE HAVE PROFESSIONAL ENGINEER TEAM
|
|
