Product Details
Place of Origin: Guangdong, China
Brand Name: ODM
Model Number: automatic
Payment & Shipping Terms
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: 1.wooden case 2.As your order
Delivery Time: 5-8 days
Payment Terms: T/T, Western Union, Paypal, Credit card
Supply Ability: 10 Piece/Pieces per Week
Product Name: |
Automatic PCB Printing Machine |
Model Number: |
A8 Automatic |
Quality: |
Top |
Package: |
Wooden Case |
Condition: |
New |
Type: |
SMT Machine |
Brand: |
ODM |
Delivery: |
Ups,dhl,fedex,as Your Order |
Product Name: |
Automatic PCB Printing Machine |
Model Number: |
A8 Automatic |
Quality: |
Top |
Package: |
Wooden Case |
Condition: |
New |
Type: |
SMT Machine |
Brand: |
ODM |
Delivery: |
Ups,dhl,fedex,as Your Order |

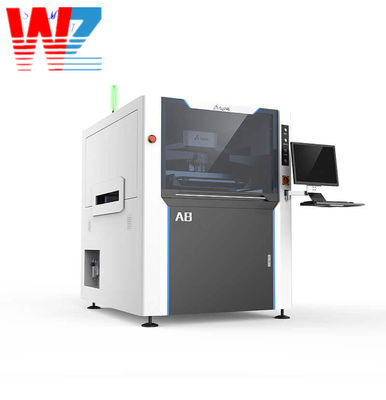

SMT Automatic PCB Solder Paste Printing Machine
Name: Automatic PCB Solder Paste Printer
Brand: ODM
Model: Automatic PCB Solder Paste Printer
Specification: Automatic PCB Solder Paste Printer
Condition: original/copy
Quality: top qualiy
Stock: large
Payment: L/C T/T D/P Western Union Paypal Money Gram And Others
Shipment: In three days
Warranty: 1 year
Delivery: fedex,ups,dhl,as required
Package: carton box with foam protect
| Item | Model | A8 |
| Screen Frames | Min Size | 470X370mm |
| Max Size | 737X737mm | |
| Thickness | 25~40mm | |
| PCB Min Size | 50X50mm | |
| PCB Max Size | 460X340mm | |
| PCB Thickness | 0.4~6mm | |
| PCB Warpage | ＜1% | |
| Transport Height | 900±40mm | |
| Transport Direction | Left-Right;Right-Left;Left-Left;Right-Right | |
| Transport Speed | Max 1500mm/S Programmable | |
| Board Location PCB的定位 |
Support System | Magnetic Pin/Up-down table adjusted/supportblock |
| Clamping System | side clamping,vacuum nozzle, | |
| Print head | Two independent motorised printheads | |
| Squeegee Speed | 6~200mm/sec | |
| Squeegee Pressure | 0~15Kg | |
| Squeegee Angle | 60°/55°/45° | |
| Squeegee Type | Stainless steel(Standard), plastic | |
| Stencil Separation Speed | 0.1~20mm/sec Programmable | |
| Cleaning System | Dry,Wet,Vacuum (Programmable) | |
| Table Adjustment ranges | X:±10mm;Y:±10mm;θ:±2° | |
| Machine | ||
| Repeat Position Accuracy | ±0.008mm | |
| Printing Accuracy | ±0.02mm | |
| Cycle Time | <7s (Exclude Printing & Cleaning) | |
| Product Changeover | <5Min | |
| Air Required | 4.5~6Kg/cm2 | |
| Power Input | AC:220±10%,50/60HZ 1Φ 3KW | |
| Control Method | PC Control | |
| Machine Dimensions | 1220(L)X1355(W)X1500(H)mm | |
| Machine Weight | Approx:1000Kg | |
Related Product
We have full range of SMT pick and place machine For FUJI,JUKI,SAMSUNG,YAMAHA,PANASONIC
and so on,feeder, nozzle,smt pick and place machine,PCB Conveyor,
cylinder,and vibration feeder,anything you need ,just tell me!
The main brand is Fuji YAMAHA Samsung Panasonic SONY heavy machine
1. SMT lubricating oil
2. SMT parts
3. Nozzle and feeder
4. SMT belt and other parts in the machine
