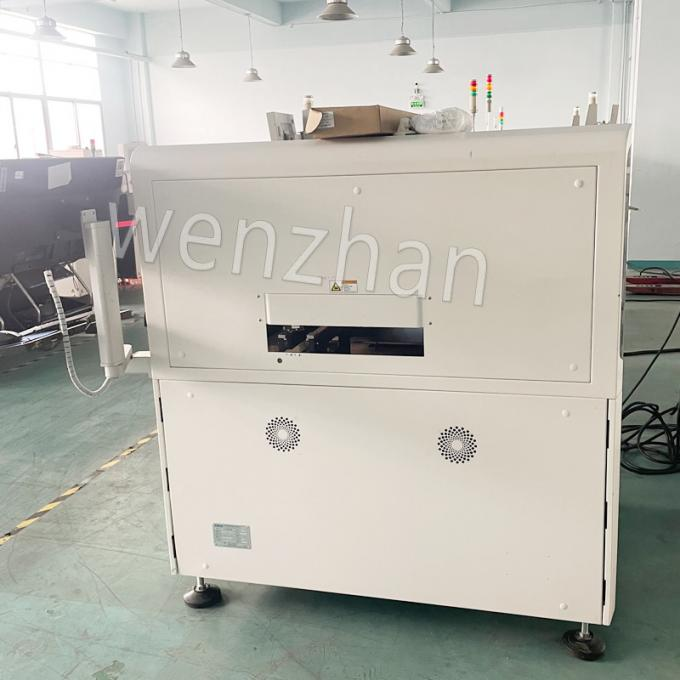

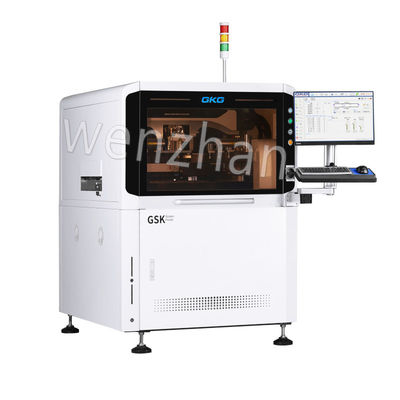

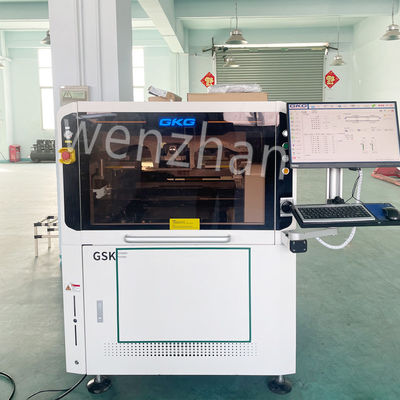

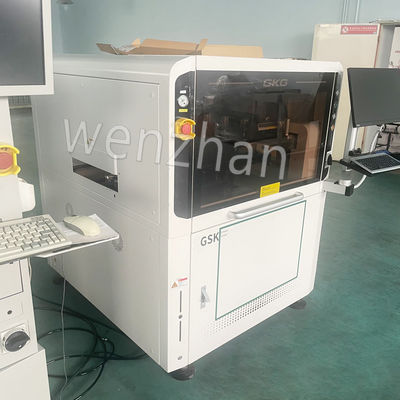

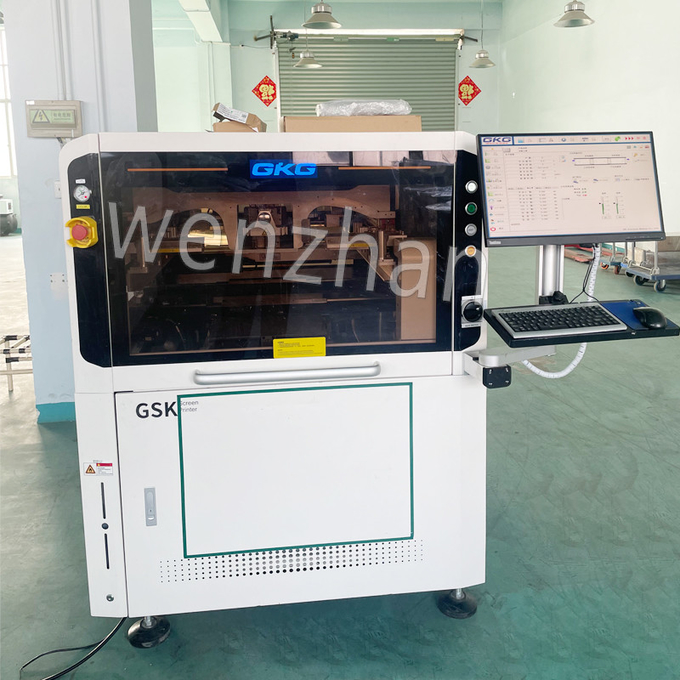

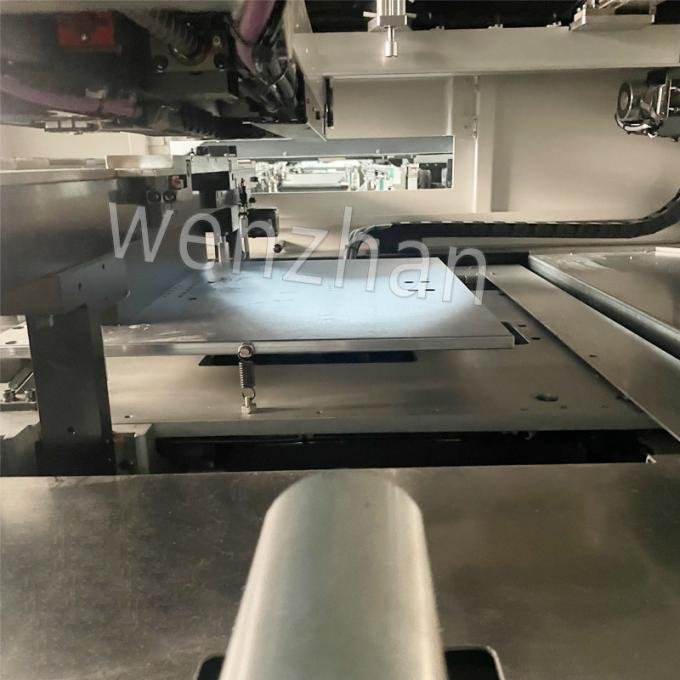

High-Precision Automatic solder paste printing GKG GSK Pcb Solder Printer
The GKG GSK PCB Solder Printer is a high-precision machine designed for applying solder paste to printed circuit boards (PCBs) during the surface mount technology (SMT) assembly process. This printer is essential for ensuring optimal solder deposition, which is critical for the performance and reliability of electronic devices.
Functionality:
Solder Paste Application: The primary function of the GKG GSK printer is to apply solder paste accurately onto the PCB pads. It uses a stencil printing method to ensure that the solder paste is evenly distributed, which is crucial for creating reliable solder joints during the reflow process.
High Precision and Speed: The GSK printer is engineered for high precision and speed, allowing for rapid printing cycles without compromising on quality. It can handle various stencil designs and sizes, making it versatile for different PCB layouts.
Automatic Alignment: The printer features advanced optical alignment systems that ensure precise alignment between the stencil and the PCB. This automatic alignment minimizes misalignment errors, which can lead to solder defects.
User-Friendly Interface: The GKG GSK printer is equipped with an intuitive control interface that allows operators to easily set parameters, monitor the printing process, and adjust settings as needed. This user-friendly design enhances operational efficiency.
Data Integration: The printer can integrate with other manufacturing systems, such as manufacturing execution systems (MES) and enterprise resource planning (ERP) systems. This integration facilitates real-time monitoring and data collection, helping to optimize production workflows.
Quality Control Features: The GSK printer includes features for quality control, such as inspection capabilities for solder paste deposition. These features allow for immediate detection of issues, enabling quick corrective actions.
Usage:
Using the GKG GSK PCB Solder Printer involves several key steps to ensure effective operation:
Setup and Preparation: Begin by setting up the printer according to the manufacturer’s guidelines. This includes connecting power, configuring the software, and ensuring that all components are in place.
Stencil Preparation: Select and clean the appropriate stencil for the PCB design being printed. Ensure that the stencil is free from debris and that it matches the pad layout of the PCB.
Loading the PCB: Place the PCB securely on the printer’s platform. The printer typically features a vacuum or clamping system to hold the PCB in position during the printing process.
Stencil Alignment: Use the automatic alignment feature to position the stencil accurately over the PCB. The optical alignment system will ensure that the stencil aligns perfectly with the pads.
Solder Paste Application: Once the stencil is aligned, initiate the solder paste application process. The printer will spread the solder paste evenly across the stencil openings, depositing the paste onto the PCB pads.
Quality Inspection: After the printing process is complete, inspect the solder paste deposition visually or using automated inspection systems, if available. Check for issues such as insufficient paste or bridging between pads.
Cleaning the Stencil: After use, clean the stencil to remove any residual solder paste. This maintenance step is crucial for ensuring the longevity of the stencil and maintaining printing quality for future runs.
Data Logging and Monitoring: Utilize the data integration features to log production data and monitor the printing process. This information can be valuable for quality assurance and process optimization.
In summary, the GKG GSK PCB Solder Printer is a vital tool in the SMT assembly process, offering high precision and efficiency in solder paste application. Its advanced features and user-friendly design make it suitable for a wide range of PCB designs, ultimately contributing to the quality and reliability of electronic assemblies. Proper usage of the printer leads to improved production outcomes and customer satisfaction.
