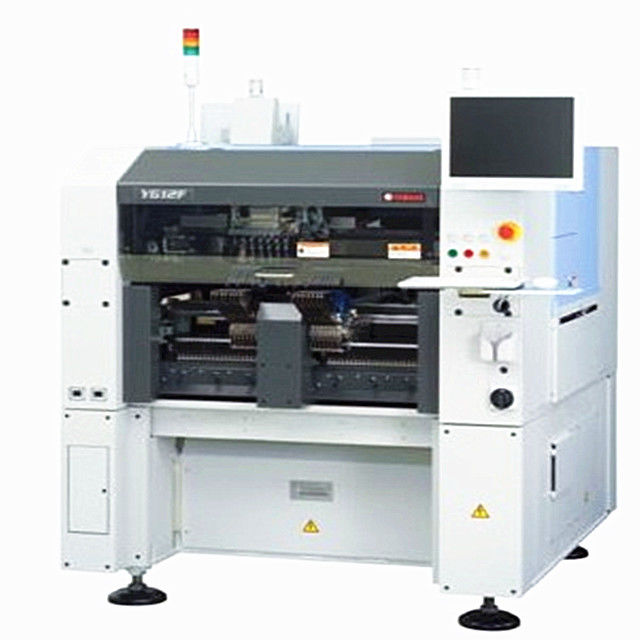

SMT yamaha chip mounter YG12 pcb pick and place machine

MOQ: 1pcs
Price: 46478$
Standard Packaging: 1.wooden case 2.As your order
Delivery Period: 5-8 days
Payment Method: T/T, Western Union, Paypal, Credit card
Supply Capacity: 10 Piece/Pieces per Week
Detail Information
Product Description
Detail Information
Place of Origin
Japan
Brand Name
YAMAHA
Model Number
YG12
Product Name:
SMT Pick And Place Machine Yamaha Yg12
Model Number:
YG12
Mounting Speed:
36,000CPH (0.1sec/CHIP)
Component Size Range:
0402(Metric Base) To □32*mm Components
Number Of Feeders:
60 (Max,8mm Tape Reel Conversion)
Required Pressure:
0.55MPa Or More, In Clean, Dry States
Brand:
YAMAHA
Object Substrate:
L50xW50mm~L330xW360mm(※1)
Weight:
1,340kg
Delivery:
Ups,dhl,fedex,as Your Order
Product Description

SMT yamaha chip mounter YG12 pcb pick and place machine



The YG12 machine is a high-speed and high-precision pick and place machine commonly used in the electronics manufacturing

industry for surface mount technology (SMT) assembly processes. The YG12 machine offers a range of features and capabilities to

meet the demands of modern electronic manufacturing, providing efficient and accurate component placement on printed circuit boards (PCBs).



PCB SIZE:L50×W50mm~L700×W460mm
SPEED:72,000CPH (0.05sec/CHIP)
accuracy:±0.05mm(μ+3σ),±0.03mm(3σ)
feeder qty:120PCS
components range:0402~□32mm MAX(Height less than 6.5mm)
Machine size: L1,254×W1,687×H1,445mm/1,700kg



Functionality:

1. High-Speed Placement: The YG12 machine is equipped with advanced placement heads and conveyor systems that enable high-speed component placement, increasing production throughput and efficiency.
2. Precision Placement: This machine features precise component placement capabilities, ensuring accurate alignment and orientation of components on the PCB for high-quality assembly.
3. Multi-Head Configuration: The YG12 machine can be configured with multiple placement heads, allowing for simultaneous placement of different component types and sizes to optimize production efficiency.
4. Vision Systems: Advanced vision systems integrated into the YG12 machine provide accurate component alignment and inspection, enhancing placement accuracy and reducing the risk of errors during assembly.
5. User-Friendly Interface: The YG12 machine is equipped with intuitive software interfaces that facilitate easy programming, setup, and monitoring of the pick and place process, enabling operators to efficiently manage production parameters.



How to Use:

1. Programming: To use the YG12 machine, operators need to program the machine with the component placement data, including component coordinates, rotation angles, and placement sequences. This can be done using the machine's software interface, where operators can input the production requirements and create placement programs.
2. Feeder Setup: Load the feeders with the necessary components and ensure they are properly configured and calibrated for seamless component feeding during the placement process. Verify that the feeders are aligned correctly and contain the correct components.
3. Calibration: Calibrate the machine's vision systems and placement heads to ensure accurate component alignment and placement. Adjust camera settings, alignment parameters, and placement nozzle heights as needed to optimize placement accuracy.
4. Production Run: Start the production run by loading the PCB onto the machine's conveyor system and initiating the pick and place process. Monitor the machine's operation and make adjustments as required to maintain consistent and precise component placement.
5. Inspection and Verification: After component placement, inspect the PCB for any defects or misalignments using the machine's vision systems or additional inspection tools. Conduct quality checks to verify that components are correctly placed and soldered on the PCB.

In conclusion, the YG12 machine is a versatile and efficient pick and place machine designed to streamline the component placement process in
SMT assembly lines. With its high-speed capabilities, precision placement features, multi-head configuration options, and user-friendly interface,
the YG12 machine provides electronics manufacturers with the tools to achieve fast, accurate, and reliable component placement for a variety of
PCB assembly applications.
