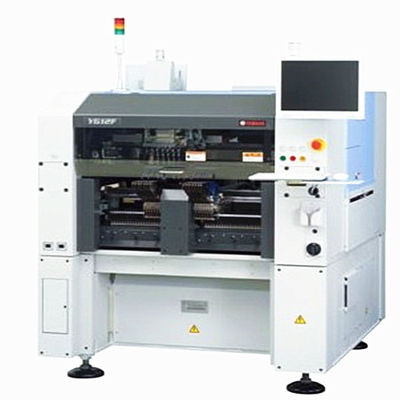

Used and new SMT YAMAHA YG12 pick and place machine

1. Component Feeding: The YG12 pick and place machine is equipped with multiple feeders that hold different types of electronic components, such as resistors, capacitors, integrated circuits, and connectors. These feeders supply the components to the machine for the placement process.
2. Vision System: The machine incorporates a sophisticated vision system to identify and locate components accurately. It uses cameras and image recognition algorithms to detect the position, orientation, and alignment of components, ensuring precise placement on the PCB.
3. Pick and Place: The YG12 machine utilizes robotic arms with vacuum nozzles to pick up components from the feeders. The arms move swiftly and precisely to pick the components and place them onto the designated positions on the PCB. The machine supports both single-component and multi-component pick and place operations.
4. Alignment and Inspection: After placing the components, the YG12 machine performs alignment checks and inspections to ensure proper positioning and solderability. It can verify the alignment of components using the vision system and detect any defects or errors during the placement process.
5. Programming and Control: The machine is controlled through a user-friendly interface, which allows operators to program the pick and place sequence, adjust placement parameters, and monitor the operation in real-time. Programming can be done manually or by importing CAD (Computer-Aided Design) data.

1. Setup: Prepare the machine by loading the appropriate feeders with components and ensuring the PCB is securely fixed on the machine's worktable.
2. Programming: Use the machine's interface to create or import the pick and place program. Define the component positions, orientations, and any specific placement requirements.
3. Calibration: Calibrate the machine by aligning the vision system and adjusting placement parameters to ensure accurate component detection and placement.
4. Operation: Start the pick and place process, and the machine will automatically pick components from the feeders and place them onto the PCB according to the programmed sequence. Monitor the operation for any errors or issues.
5. Inspection: Once the placement is complete, inspect the PCB to verify the alignment and solderability of the components. Perform any necessary rework or adjustments if required.
6. Maintenance: Regularly clean the machine, inspect and replace worn-out parts if needed, and follow the manufacturer's maintenance guidelines to ensure optimal performance and longevity.

The YG12 pick and place machine streamlines the assembly process, reduces manual labor, and improves production efficiency in electronic manufacturing. Its advanced features and user-friendly interface make it a valuable tool for achieving accurate and reliable PCB assembly.

Feature :

1. Applies two gantries equipped with 10 spindles per head as well as new flying vision.
2. The highest speed among the same class component placers,placement accuracy correction system(head offset,C/V offset etc.).
3. It is applicable to 0402-14mm(H=12mm)ICs.
4. Reinforced its applicability to odd shaped parts by applying a ß-staged light system.
5. Dual Lane System:PCB Loading Time of "ZERO" Maximiaes actual productivity by minimizing the PCB transfer time by adopting a first-in-first-out type shuttle inlet conveyor.
6. It has improved actual productivity and placement quality by applying high speed and high precision electrically driven feeders.
7. It is designed to be compatible with SM series pneumatic feeders.
8. it maximizes the customer's operational convenience.
9. Parameter:Can accommodate120pcs 8mm Feeder( Docking Cart)
