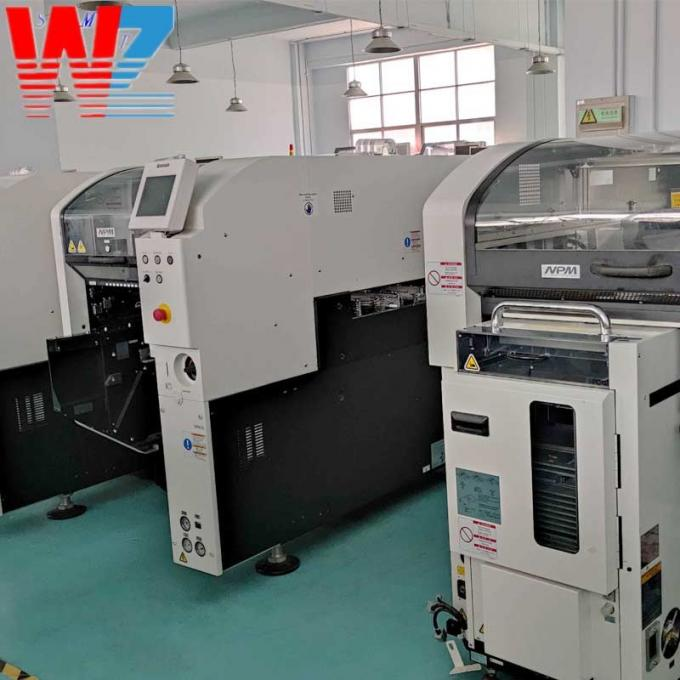

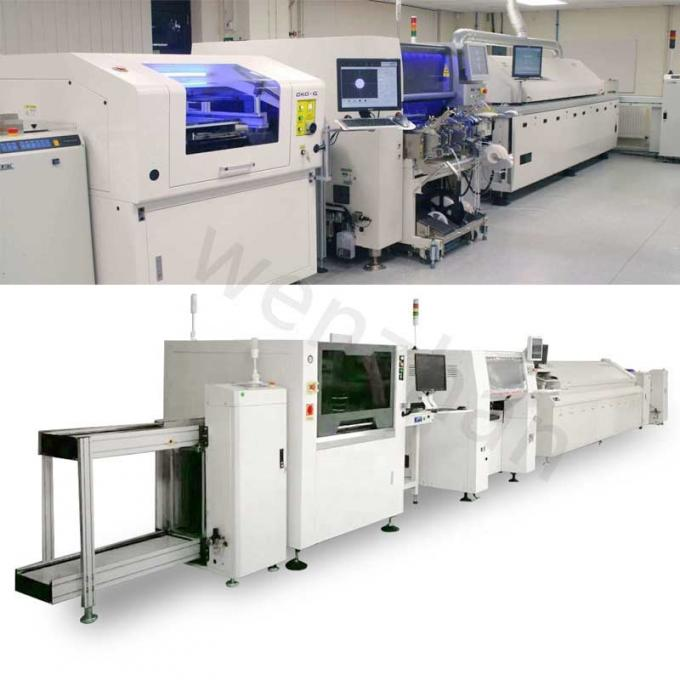

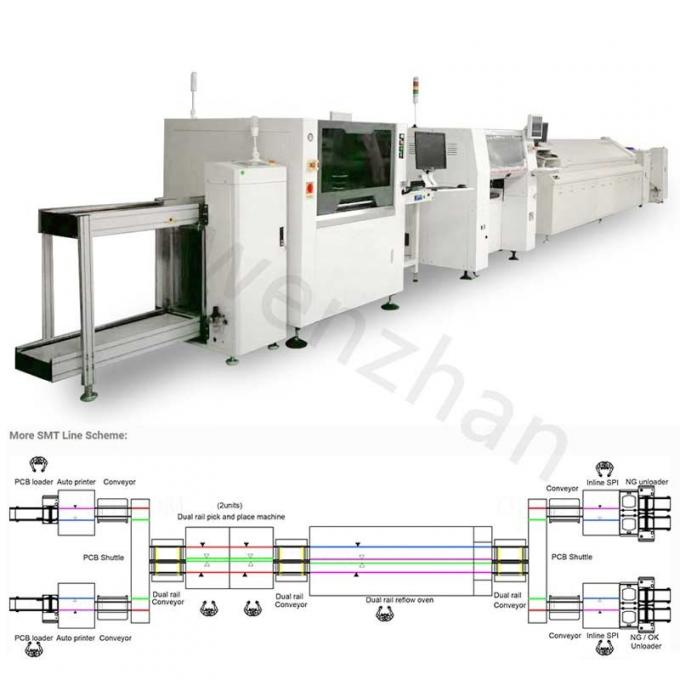

This fully automatic SMT production line is configured for LED display and LED panel assembly workflows, providing a complete process solution for LED electronic product manufacturing. The standard line includes a PCB printer, chip mounter, reflow oven, and automated optical inspection (AOI) equipment, with parameter settings adjusted to accommodate LED component processing requirements.

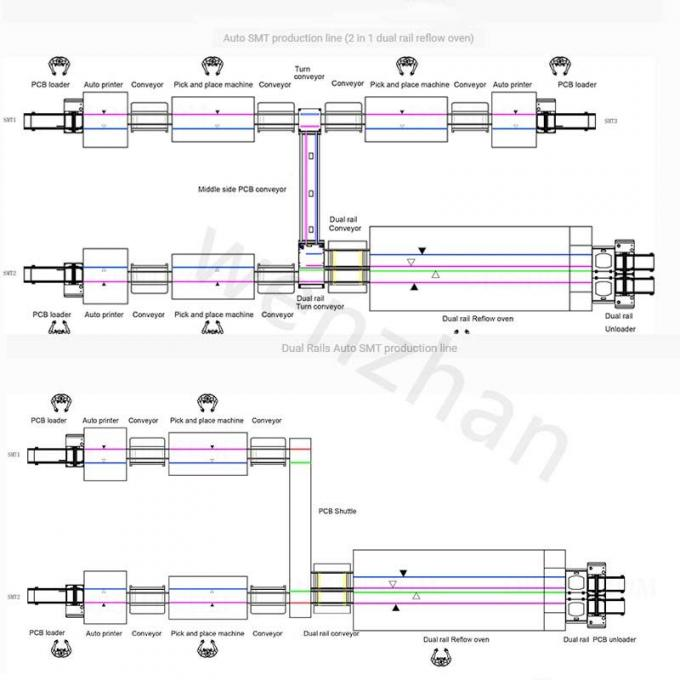

The line supports sequential processing from solder paste deposition to final inspection, designed to handle the specific component sizes and board specifications common in LED display production. It fits production facilities manufacturing LED display screens, LED lighting panels, and other LED-based electronic products, supporting both small-batch custom orders and mid-volume regular production.
The line supports processing of LED components within the 0402-5050 size range, covering most common SMD LED package types used in display and lighting products. It can also process other standard surface mount components used in LED display circuit boards, including resistors, capacitors, and driver ICs, supporting full-board assembly in a single continuous workflow.
Component placement parameters can be adjusted within the supported size range, to match different LED package specifications and board layout designs. This flexibility allows the line to be used for multiple LED product lines within the supported component size scope.
Specification | Details |
|---|---|
Product Name | Low Cost PCB Best Production Smt Assembly Machine |
Application | SMT PCB Assembly Production Line |
Brand | Wenzhan |
Model | Wz-smt -line |
Applicable Components | 0402-5050 |
Condition | NEW AND USED |
Item | Chip Mounter, Reflow Oven ,aoi, Pcb Printer.. |
Size | Customizable |
Package | Wooden Case |
DELIVERY | DHL UPS Fedex TNT EMS |
Weight | 4600kg |
 |  |
The SMT production line supports customizable dimensions to fit different factory floor layouts and production space constraints. For LED production applications, clients can request adjusted equipment configurations based on their specific LED panel specifications and production volume requirements, including modified feeder setups and adjusted reflow oven temperature profiles.
All customization requests are reviewed on a per-order basis, with final specifications confirmed with clients prior to manufacturing. The line can be adapted for different LED board sizes and component densities, and supports integration with existing production management systems where technically feasible.
All line equipment is packaged in wooden cases for transport, providing structural protection against impact and moisture during long-distance cross-border shipping. The complete standard line has a total weight of 4600kg, and packaging is designed to comply with international sea freight and land transport standards.
Multiple delivery options are available for enterprise customers, including international express carriers such as DHL, UPS, FedEx, TNT, and EMS for urgent partial shipments, and sea freight options for complete line bulk orders to reduce overall logistics costs. Full tracking information is provided for all shipments, and delivery timelines are confirmed based on destination and order configuration.
This SMT line supports LED components in the 0402-5050 size range, covering most common SMD LED packages used in display and lighting products. It also supports other standard surface mount components within compatible size ranges for full board assembly. Clients with specialized component requirements can consult with the supplier to confirm compatibility.
Yes, the line can be adapted for different LED panel specifications. Size customization is available as standard, and equipment parameters can be adjusted to match different board dimensions, component densities, and production volume requirements. All configuration adjustments are confirmed with clients prior to final order confirmation.
The standard complete production line has a total weight of 4600kg. Total weight may vary slightly based on customized configuration adjustments, such as added auxiliary equipment or modified line dimensions. Exact weight specifications are provided with final order quotes for logistics planning purposes.
