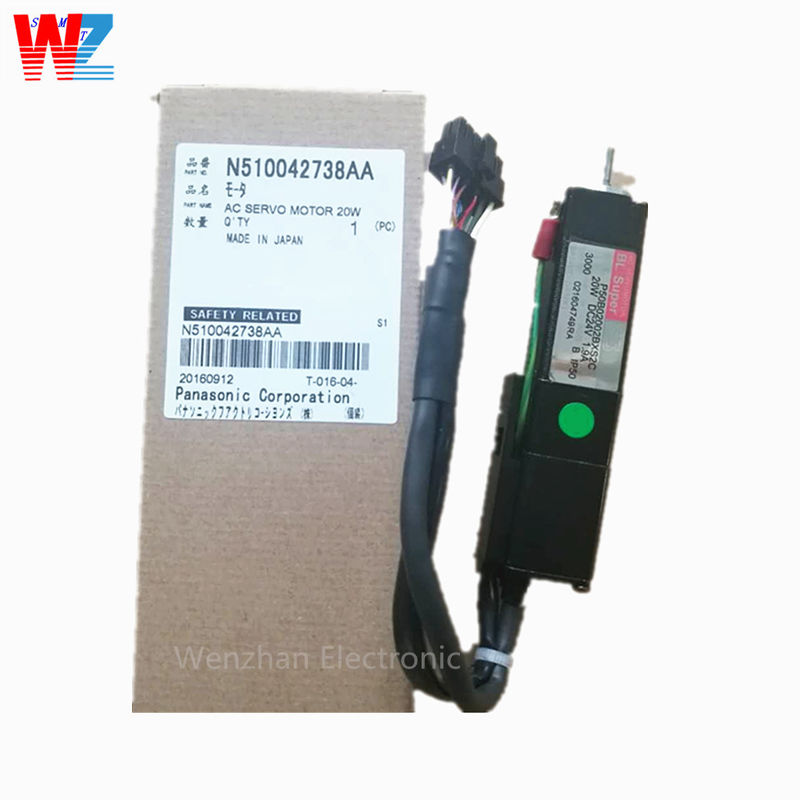

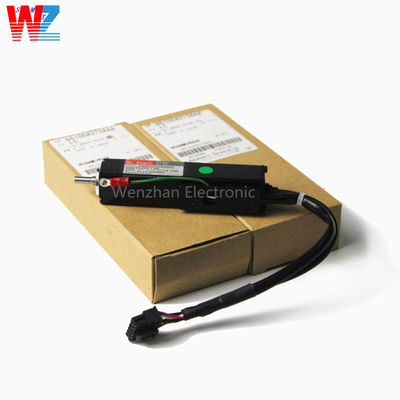

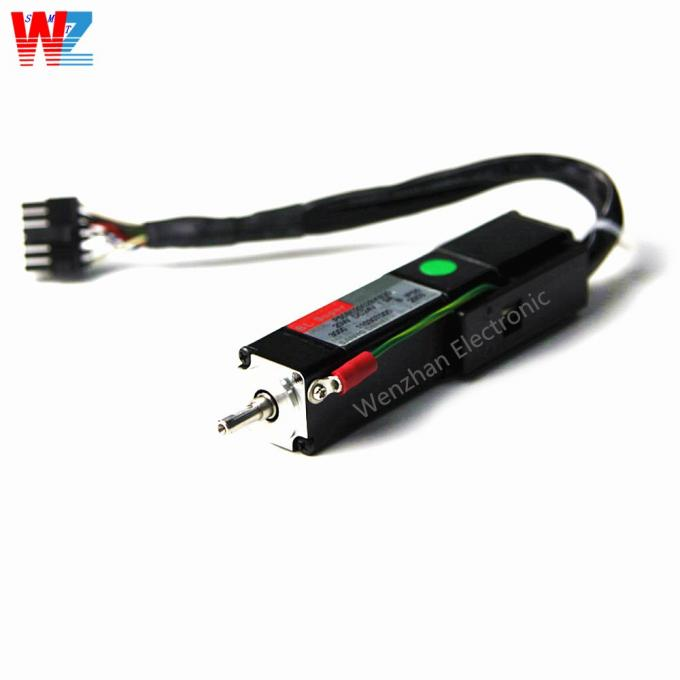

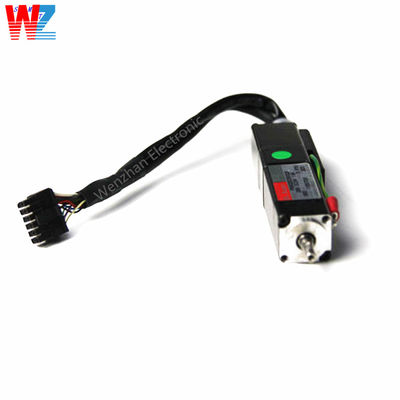

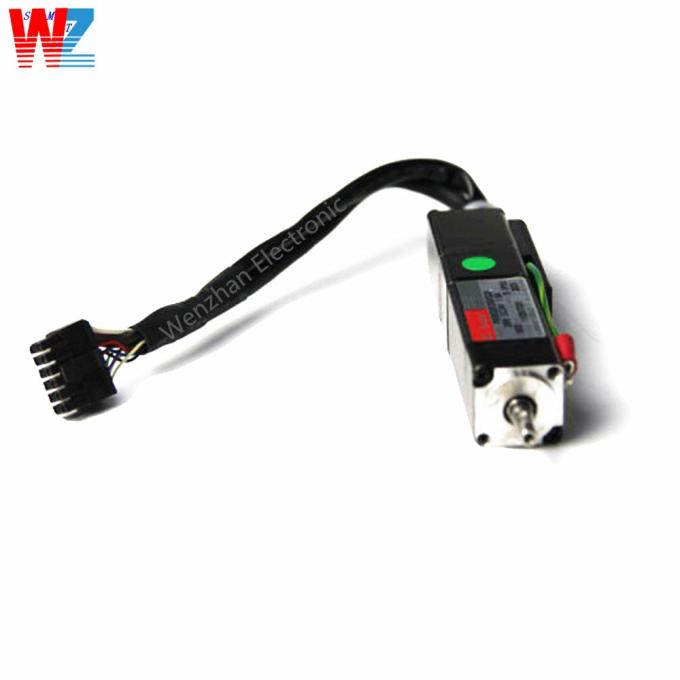

The N510042738AA is a 20W DC servo motor produced by Panasonic, designed as an original spare part for Panasert CM402 and CM602 series SMT pick and place machines. This motor serves as a motion component within the machine’s servo system, driving precise movement of machine axes.
This motor matches the mechanical mounting dimensions and electrical specifications of the original factory component installed in CM402 and CM602 equipment. This direct compatibility allows maintenance teams to install the unit without mechanical modification or adapter parts, reducing maintenance turnaround time and production line downtime.
Each unit undergoes 100 percent functional testing before shipment to verify performance against rated parameters. The motor is manufactured in Japan as part of Panasonic’s official SMT equipment spare part supply chain. It is classified as a safety-related component per original equipment production standards.

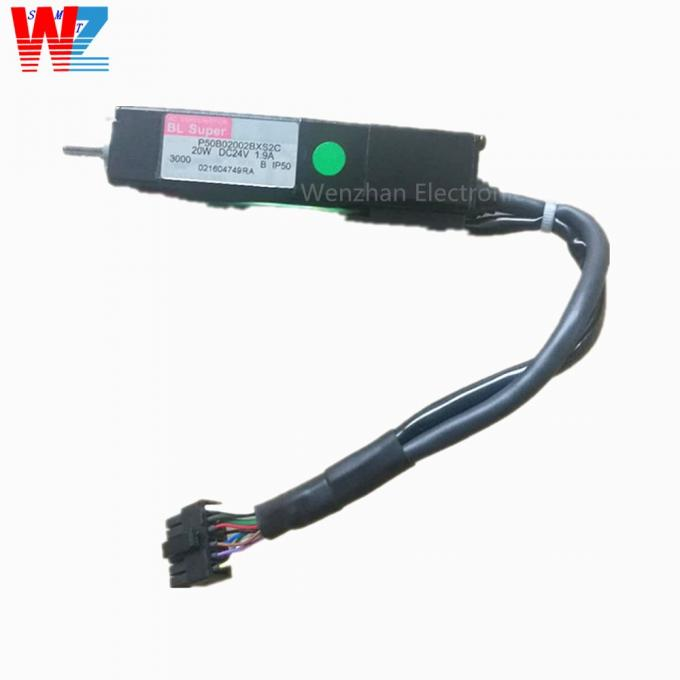

The table below lists full technical specifications extracted from the product label, with all values retained in their original form.
Specification Item | Parameter Value |
|---|---|
Part Number | N510042738AA |
Motor Type | DC servo motor |
Rated Power | 20W |
Rated Voltage | DC 24V |
Rated Current | 1.9A |
Rated Speed | 3000rpm |
Compatible Machine Models | CM402, CM602 SMT pick and place machines |
Origin | Made in Japan |
Core Component | Motor |
 |  |
 |  |
 | |
This DC servo motor is primarily used for maintenance and repair of Panasonic CM402 and CM602 SMT placement machines. When original motors exhibit performance degradation or functional failure, this unit replaces the faulty component to restore axis motion accuracy. It supports motion functions including placement head positioning, feeder transport and worktable adjustment.
For enterprise maintenance teams, this part supports both planned preventive maintenance programs and emergency breakdown response. Its original specification matching ensures consistent performance with existing machine control systems, eliminating the need for control parameter recalibration after replacement.
This component supports commercial spare part procurement for electronic manufacturing facilities that operate Panasonic SMT assembly lines. It is suitable for inclusion in on-site spare parts inventory to reduce downtime during unexpected equipment failures. It also applies to SMT equipment refurbishment projects that require original specification replacement components to restore factory-level motion performance.

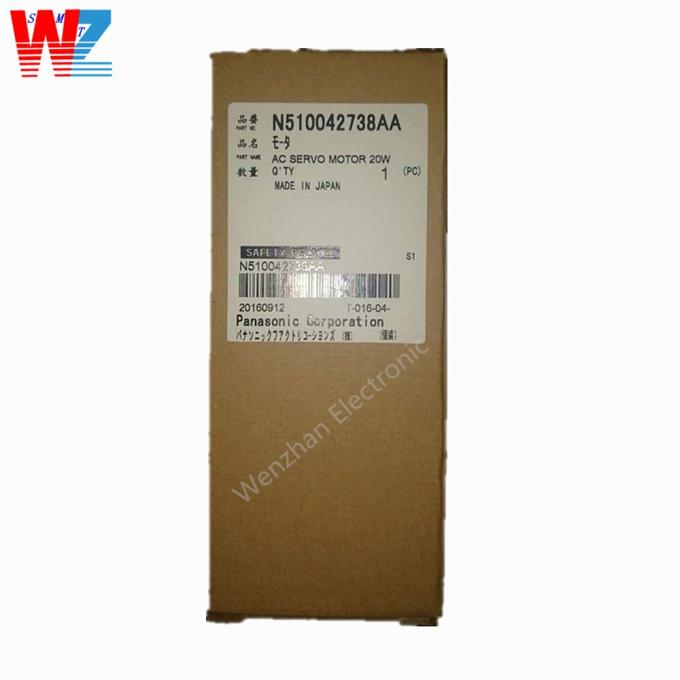

The complete unit carries a 3-month warranty term, with a 1-month warranty for core motor components. Each unit is packaged in a carton box with foam protective material to prevent damage during transport and storage.
Shipment can be arranged via FedEx, UPS, DHL or other carriers as requested by the buyer. Shipment is dispatched from Shenzhen or Hong Kong ports per buyer preference. Payment is processed via telegraphic transfer prior to shipment.
This servo motor is designed as a spare part for Panasonic CM402 and CM602 series SMT pick and place machines, matching original equipment mechanical and electrical specifications.
The N510042738AA DC servo motor has a rated power of 20W.
The product includes a 3-month warranty for the complete unit, and a 1-month warranty for the core motor component.
