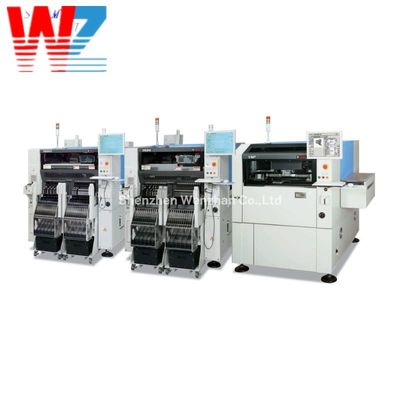

SMT Machine YAMAHA YS24 Pick And Place Machine

Products

Samsung Pick and Place Machine

SMT Machine YAMAHA YS24 Pick And Place Machine

MOQ:	1pcs
Price:	67605$
Standard Packaging:	1.wooden case 2.As your order
Delivery Period:	5-8 days
Payment Method:	T/T, Western Union, Paypal, Credit card
Supply Capacity:	10 Piece/Pieces per Week

Detail Information

Product Description

Detail Information

Place of Origin

Japan

Brand Name

YAMAHA

Model Number

Product Name:

SMT Pick And Place Machine YAMAHA YS24

Model Number:

Quality:

Package:

Wooden Case

Condition:

Type:

SMT Machine

Brand:

YAMAHA

Delivery:

Ups,dhl,fedex,as Your Order

Highlight:

YAMAHA Pick And Place Machine

SMT Pick And Place Machine

YAMAHA YS24 Pick And Place Machine

Product Description

SMT Machine YAMAHA YS24 Pick And Place Machine

The YS24 Pick and Place Machine is a state-of-the-art device designed for the automated assembly of surface mount devices (SMDs) onto printed circuit boards (PCBs). This machine is essential in the electronics manufacturing industry, providing high precision and efficiency in component placement, which is critical for the performance and reliability of electronic products.

PCB SIZE: L50×W50mm～L700×W460mm
SPEED: 72,000CPH (0.05sec/CHIP)
accuracy: ±0.05mm(μ+3σ),±0.03mm(3σ)
feeder qty: 120PCS
components range: 0402～□32mm MAX(Height less than 6.5mm)
Machine size: L1,254×W1,687×H1,445mm/1,700kg

Product name	YS24 Pick And Place Machine
PCB SIZE	L50×W50mm～L700×W460mm
SPEED	72,000CPH (0.05sec/CHIP)
Accuracy	±0.05mm(μ+3σ),±0.03mm(3σ)
feeder qty	120PCS
components range	0402～□32mm MAX(Height less than 6.5mm)
Machine size	L1,254×W1,687×H1,445mm/1,700kg

Functionality:

1. High-Speed Placement: The YS24 is equipped with advanced robotic arms that enable rapid and precise picking and placing of components. It can handle a wide range of component sizes and types, making it versatile for various PCB designs.

2. Vision System: The machine features an integrated vision system that ensures accurate alignment of components. This system captures images of the PCB and compares them to predefined templates, allowing for real-time adjustments to placement accuracy.

3. Flexible Feeder System: The YS24 supports multiple feeder configurations, accommodating different types of component packages. This flexibility allows for quick changeovers between production runs, enhancing overall efficiency.

4. User-Friendly Interface: The machine comes with an intuitive control panel that simplifies operation.Operators can easily set parameters, monitor the assembly process, and perform maintenance tasks without extensive training.

5. Data Logging and Integration: The YS24 can be integrated with manufacturing execution systems (MES) for real-time data logging and monitoring. This feature helps optimize production processes and ensures quality control.

Usage:

Using the YS24 Pick and Place Machine involves several key steps:

1. Setup: Begin by setting up the machine according to the manufacturer’s guidelines. This includes connecting power, configuring the software, and ensuring all components are correctly installed.

2. Feeder Configuration: Load the appropriate feeders with the required SMD components. Ensure that each feeder is correctly aligned and calibrated for accurate dispensing.

3. PCB Preparation: Place the PCB securely on the machine’s worktable. Confirm that it is held in position using the machine’s vacuum or clamping system.

4. Programming the Machine: Use the user-friendly interface to input the PCB design specifications and component placement locations. The vision system will assist in ensuring that all parameters are set correctly.

5. Running the Machine: Start the assembly process. The YS24 will automatically pick components from the feeders and place them onto the PCB according to the programmed parameters.

6. Quality Inspection: After the placement process, conduct a quality inspection of the assembled PCB. This can be done visually or through an integrated inspection system to verify correct placement and alignment.

7. Data Monitoring: Monitor the assembly process through the machine’s data logging features. Use this information to analyze production efficiency and identify areas for improvement.

8. Maintenance: Regularly perform maintenance checks as recommended by the manufacturer to ensure optimal performance and longevity of the machine.

In summary, the YS24 Pick and Place Machine is a vital tool in modern electronics manufacturing, offering high-speed, high-precision assembly of SMDs. Its advanced features and user-friendly design make it suitable for a wide range of applications, ultimately enhancing production efficiency and product quality. Proper usage of the machine leads to improved operational performance and customer satisfaction.
