| Quantity: | |
|---|---|

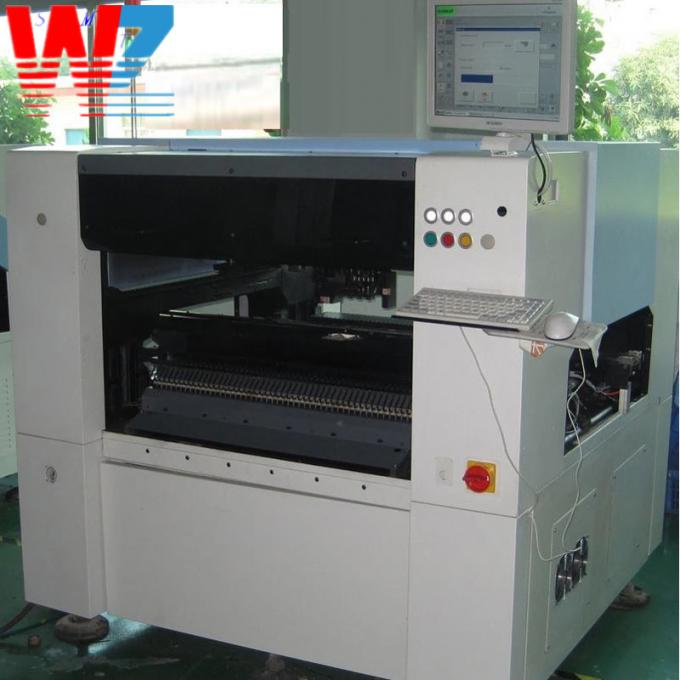

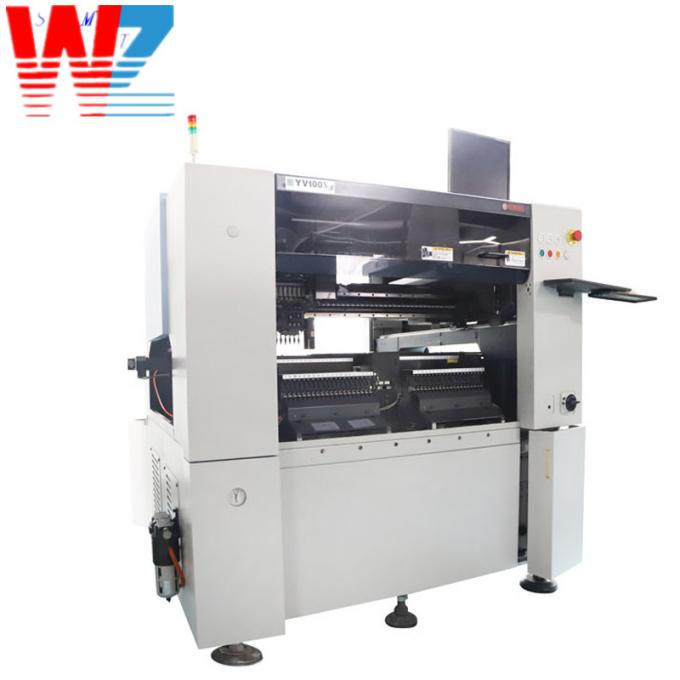

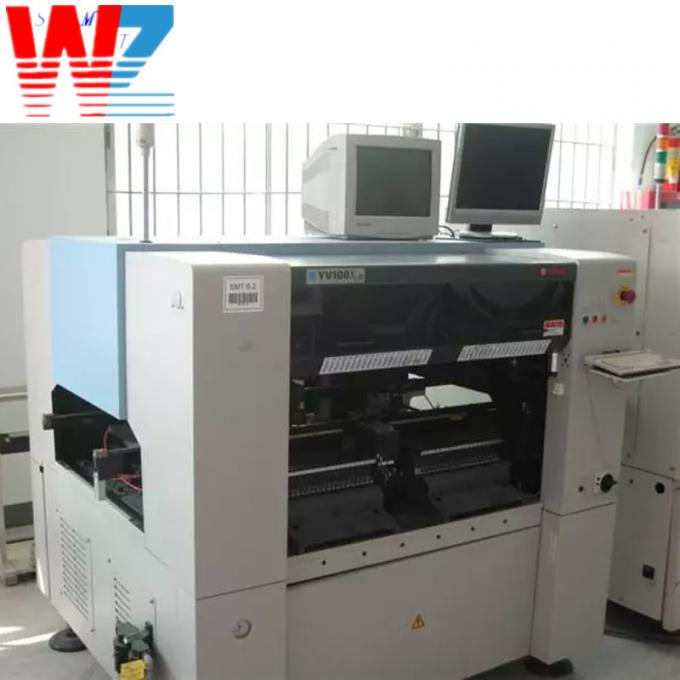

| Model | YV100XGP |
| Applicable PCB | L460 x W440mm to L50 x W50mm |
| Through-put (Optimum) | 20,000CPH (0.18sec/CHIP Equivalent) |
| Mounting accuracy | Absolute accuracy (j.1 +30 ) : +1-0.05mm/CHIP, +/-0.05mm/QFP, Repeatability (3 0) : +/-0.03mm/CHIP, +/-0.03mm/QFP |
| Applicable components | Height of components which can be mounted: 6.5mm or less |
| Numberof componenttypes | 90 types (Max, 8mm tape reel conversion) |
| Power supply | 3-Phase AC 200/208/220/240/380/400/416V +1-10% 50/60Hz |
| Air supply source | 0.55MPa or more, in clean, dry states |
| External dimension | L1,650 x W1 ,408 x H1,425mm (cover top) |
| Weight | Approx. 1,580kg |
| YAMAHA SMT pick and place and machine | Part Number |
| YAMAHA | YG200 |
| YAMAHA | YS24 |
| YAMAHA | YV100X |
| More | ...... |
| JUKI SMT pick and place and machine | Part Number |
| juki | KE750 |
| juki | KE-2050L |
| juki | KE2080 |
| juki | KE2060-M |
| More | ...... |
| FUJI SMT pick and place and machine | Part Number |
| Fuji | CP743,CP842 |
| Fuji | NXT M3 |
| Fuji | XPF-L |
| Fuji | XP141/XP142XP-143E |
| More | ...... |
| SMT pick and place and machine | Part Number |
| BM123/BM221 | |
| CM101 | |
| CM202-DH | |
| More | ...... |
| Samsung SMT pick and place and machine | Part Number |
| Samsung | CP40 |
| Samsung | CP45 FV |
| Samsung | SM320/SM321 |
| Samsung | SM421/SM421S |
| More | ...... |
Our company supplies different kinds of products. High quality and favorable price. We're pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with good quality at the reasonable price.
