Home > products > SMT Reflow Oven > Heller 1809EXL PCB SMT Reflow Oven 9 Zones SMT Reflow Soldering Machine

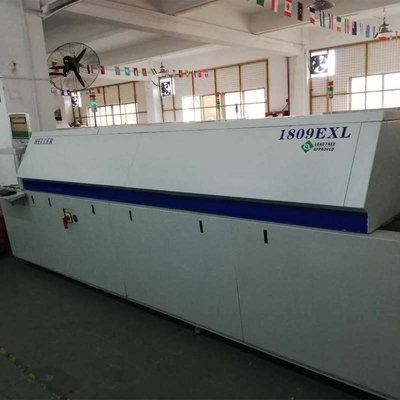

Heller 1809EXL PCB SMT Reflow Oven 9 Zones SMT Reflow Soldering Machine

Product Details

Place of Origin: Guangdong, China

Brand Name: ODM

Certification: CE ISO

Model Number: SMT reflow oven 6/8/10/12 zones

Payment & Shipping Terms

Minimum Order Quantity: 1pcs

Price: Negotiable

Packaging Details: 1.wooden case 2.As your order

Delivery Time: 5-8 days

Payment Terms: T/T, Western Union, Paypal, Credit card

Supply Ability: 10 Piece/Pieces per Week

Get Best Price
Highlight:

Heller 1809EXL SMT Reflow Oven

,

SMT Reflow Oven ODM

,

9 Zones SMD Reflow Soldering Machine

Product Name:
SMT Reflow Oven 6/8/10/12 Zones
Bottom:
9 Zones Forced Convection
Weight:
2041kg
Cooling Zones:
2
Conveyor Direction:
Left To Right
Maximum PCB Width:
22" (55.8 Cm)
Minimum/Maximum Board Width:
2.0" – 20" (5 – 50.8 Cm)
Overall Length:
183" (465 Cm)
Overall Width:
54" (137 Cm)
Overall Height:
63" (160 Cm)
Product Name:
SMT Reflow Oven 6/8/10/12 Zones
Bottom:
9 Zones Forced Convection
Weight:
2041kg
Cooling Zones:
2
Conveyor Direction:
Left To Right
Maximum PCB Width:
22" (55.8 Cm)
Minimum/Maximum Board Width:
2.0" – 20" (5 – 50.8 Cm)
Overall Length:
183" (465 Cm)
Overall Width:
54" (137 Cm)
Overall Height:
63" (160 Cm)
Heller 1809EXL PCB SMT Reflow Oven 9 Zones SMT Reflow Soldering Machine

Cheap used SMT reflow oven 6/8/10/12 zones, SMD reflow soldering machine

The 1809EXL supports high mix / high volume throughput… at speeds up to 32 inches
(80 centimeters) per minute, while conserving valuable factory floor space. Rapid response
times and precise temperature controls assure process uniformity, regardless of component
density or board loading, with identical profile performance in either air or nitrogen.
The Model 1809 EXL combines sophisticated design elements with the engineering expertise and
reflow technology leadership you've come to expect from Heller Industries:



1809EXL Highest Yields and Tight Process Control
• The most efficient heat transfer from extra high volume, high-velocity, heating
modules, producing heater module response of less than one second to
temperature changes of less than 0.1°C, thereby maintaining profile integrity for
heavy board loads.
• Wide process window for "universal profiling" — allows many different boards to
be run on a single temperature profile
• Included with every system:
• Advanced 5 thermocouple PCB profiling and process parameter logging
capability with the capacity to store up to 500 temperature recipes and 500
profile graphs
• Cpk software — “real-time” Cpk calculation shows oven performance and
repeatability and gives Cpk data for each zone and the entire oven — a Heller
exclusive!
Lowest Cost of Ownership 1809EXL
• Computer-controlled automatic lubrication system for "hands-off" maintenance
• Optional flux separation system removes up to 95% of flux from the oven
tunnel — virtually eliminating maintenance and protecting the environment
• Pure forced convection design saves nitrogen — with consumption levels as
low as 700 SCFH at 500 PPM*
• Low KW design saves electricity and reduces warm up and profile changeover time



Heller 1809EXL PCB SMT Reflow Oven 9 Zones SMT Reflow Soldering Machine 0Heller 1809EXL PCB SMT Reflow Oven 9 Zones SMT Reflow Soldering Machine 1

• Top: 9 Zones Forced Convection
• Bottom: 9 Zones Forced Convection
• Cooling Zones: 2
• Conveyor Direction Left to Right
• Edge Rail and Mesh Belt
• Lead Free Free Capable
• Auto Lubrication System
• Powered Hood Lift
• Maximum PCB Width: 22" (55.8 cm)
• KIC / ECD Profiling Software
• Windows Operating System Windows XP®
• Minimum/Maximum Board Width: 2.0" – 20" (5 – 50.8 cm)
• Power Width Adjustment
• Auto Start Software
• Data Logging
• Password Protection
• Overall Length: 183" (465 cm)
• Overall Width: 54" (137 cm)
• Overall Height: 63" (160 cm)
• Flat Screen Monitor (may be changed from the photos)





Heller 1809EXL PCB SMT Reflow Oven 9 Zones SMT Reflow Soldering Machine 2
