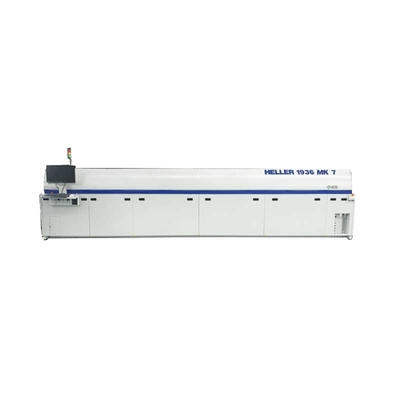

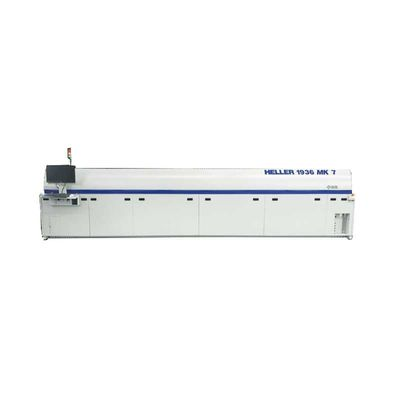

The 1936 MK7 from Heller Industries Inc is a Reflow Soldering Equipment with Heating Zone Length 590 mm, Max Pcb Width 558.8 mm.

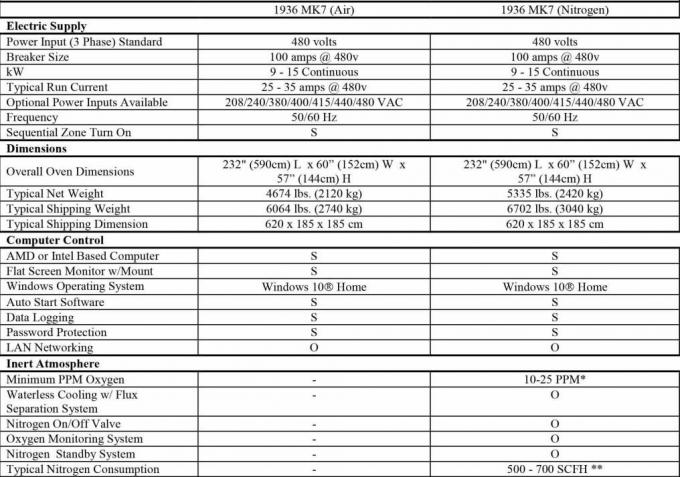

| Machine Model | Heller 1936MK7 |
| Heating Zones | Top 10 / Bottom 10 |
| Cooling Zones | Top 3 |
| PCB Width | 50 - 560 mm |
| Max Conveyor Speed | 188 cm/min |
| Cross-Belt Temperature Tolerance | ± 2 ℃ |
| Accuracy of Temperature Controller | ± 0.1 ℃ |
| Conveyor Width Adjustment | Manual Motor Control |
| Operating System | Windows 10 |
| Overall Dimensions | W5900 x D1520 x H1440 mm |
| Typical Net Weight | Approx. 2120 kg |
1. The latest low roof design
2. The latest low-top cover design is adopted, which is convenient for customers to operate and maintain. The surface temperature of the machine is lower, which is environmentally friendly and energy-saving.
Optimized low-height heating module to achieve the best temperature uniformity; can reduce nitrogen consumption by up to 40%, balance airflow saving Nitrogen. The new heating wire has higher heating efficiency and longer life.
Overall machine length: 590 cm (232″)
Number of heating zones: 10
Number of cooling zones: 3 upper cooling zone (standard) / lower cooling zone and external cooling zone (optional)
Overall machine length: 678 cm (267″)
Number of heating zones: 13
Number of cooling zones: 3 upper cooling zone (standard) / lower cooling zone and external cooling zone (optional)
Overall machine length: 744 cm (292″)
Number of heating zones: 15
Number of cooling zones: 4 upper cooling zone (standard) / lower cooling zone and external cooling zone (optional)
Overall machine length: 869 cm (342″)
Number of heating zones: 17
Number of cooling zones: 5 upper cooling zone (standard) / lower cooling zone and external cooling zone (optional)
