High Efficiency Benchtop Reflow Oven Dual Zone Temperature Control Reflow Soldering for SMT PCB Assembly

Products

Samsung Pick and Place Machine

High Efficiency Benchtop Reflow Oven Dual Zone Temperature Control Reflow Soldering for SMT PCB Assembly

MOQ:	1pcs
Price:	7042~14082$
Standard Packaging:	1.wooden case 2.As your order
Delivery Period:	5-8 days
Payment Method:	T/T, Western Union, Paypal, Credit card
Supply Capacity:	10 Piece/Pieces per Week

Detail Information

Product Description

Detail Information

Place of Origin

Guangdong, China

Brand Name

Certification

CE ISO

Model Number

SMT reflow oven 6/8/10/12 zones

Product Name:

SMT Reflow Oven 6/8/10/12 Zones

Voltage:

Current:

Rated Capacity:

4800W

Rated Duty Cycle:

Dimensions:

640*630*900mm

Usage:

Welding Machine

Model Number:

Reflow Oven 6/8/10/12 Zones

Package:

Wooden Case

Condition:

Type:

SMD Reflow Soldering Machine, Other

Brand:

Delivery:

Ups,dhl,fedex,as Your Order

Weight:

After-sales Service Provided:

Engineers Available To Service Machinery Overseas

Port:

Shenzhen

Highlight:

12 zone pcb reflow oven

20A pcb reflow oven

12 zone conveyor reflow oven

Product Description

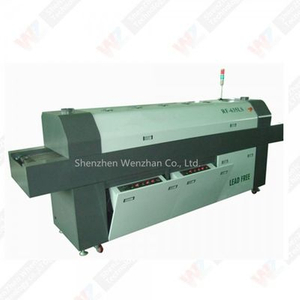

High Efficiency Benchtop Reflow Oven Dual Zone Temperature Control Reflow Soldering for SMT PCB Assembly Name: SMT reflow oven

The domestic reflow soldering machine is a crucial piece of equipment in the electronics manufacturing industry, primarily used for soldering surface mount devices (SMDs) onto printed circuit boards (PCBs). This machine ensures reliable electrical connections and is essential for producing high-quality electronic assemblies.

Functionality:

1. Heating Process: The reflow soldering machine uses a controlled heating process to melt solder paste applied to the PCB. The heating is typically done in multiple zones, allowing for precise temperature control to avoid damaging sensitive components.

2. Solder Paste Application: Prior to reflow, solder paste is applied to the PCB pads. The machine can accommodate various types of solder pastes, ensuring compatibility with different components and applications.

3. Conveyor System: The machine features a conveyor system that transports PCBs through different heating zones. This continuous movement allows for efficient processing of multiple boards in a single run.

4. Cooling Phase: After the soldering process, the PCBs enter a cooling zone where they are rapidly cooled to solidify the solder joints. This step is critical for ensuring strong and reliable connections.

5. Quality Control: Many reflow soldering machines include integrated inspection systems to check for defects such as insufficient solder or misaligned components, ensuring that only quality products proceed to the next manufacturing stage.

Usage Instructions:

1. Setup: Position the reflow soldering machine in a clean and controlled environment. Ensure all necessary connections and materials are ready.

2. Load PCBs: Place the PCBs onto the conveyor system, ensuring they are properly aligned and secured.

3. Configure Settings: Use the control panel to input parameters such as temperature profiles, conveyor speed, and time settings based on the solder paste specifications.

4. Start the Reflow Process: Activate the machine and monitor the process to ensure that the heating and cooling phases occur as planned.

5. Regular Maintenance: Conduct routine checks and maintenance to ensure the machine operates efficiently and reliably.

	RF-8820PC-LF	WZ-8810PC/LS-LF	WZ-8830PC/LS-LF
Dimension	5000×1200×1550mm	4600×1000×1550mm	4600×1500×1550mm
Weight	1800kg	1200kg	1600kg
Number of heating zone	Top 8/Bottom 8
Length of heating zone	3160mm	2800mm	2800mm
Cooling quantity	Up 2/Bottom 2	Up 1/Bottom 1	Up 1/Bottom 1
Air discharge requirement	10m³/min×2
Power requirements	3 phase 380V 50/60Hz
Starting power	36KW	32KW	48KW
Operating power	7KW	6.5KW	8KW
Heating time	Approx: 20min
Temperature control range	Room temp-320°C
Temperature control Mode	PID closed-loop control with SSR drive (computer + PLC)
Temperature control precision	±1°C
Temperature deviation On PCB	± 2°C
Abnormal alarm	Ultra high temperature or low temperature alarm
Maximum width of PCB	50-500mm	50-450mm	50-600/700/800mm
Guide rail width range	50-400mm	50-370mm	50-500/600/700mm
PCB element height	Top 30mm Bottom 25mm
Transportation direction	L-R (Option: R-L)
Transportation speed	0-1800mm/min
Transportation height	900±20mm
Transport guide rail fixation	Front end fixed (Option: Back end fixed)
Cooling mode		Force wind cooling
PCB transport mode	Chain +Ribbon	Chain (Chain optional)	Chain (Chain optional)

Application Areas:

Domestic reflow soldering machines are widely used in:

1. Consumer Electronics: For assembling devices like smartphones, tablets, and computers.

2. Automotive Electronics: In the production of electronic control units and sensors.

3. Medical Devices: For soldering components in critical medical equipment.

The domestic reflow soldering machine is essential for ensuring high-quality solder joints and reliable electronic assemblies in various applications.
