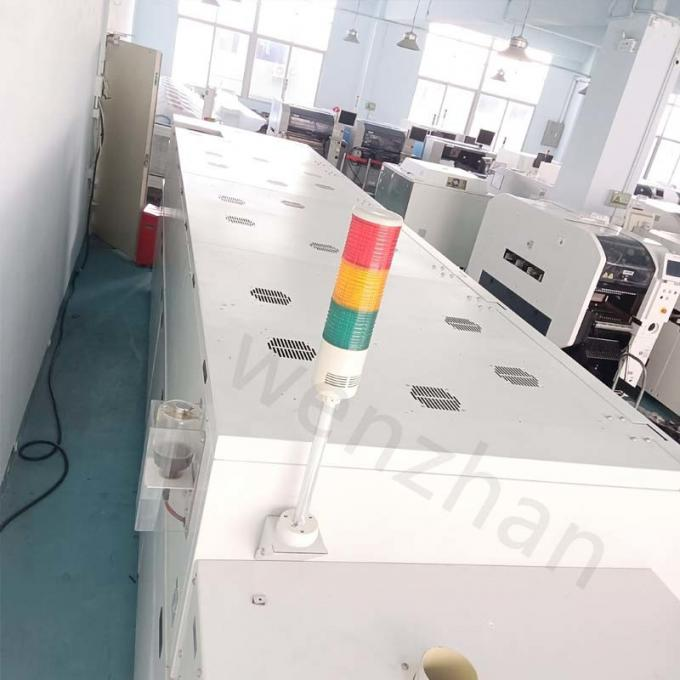

SMT line Machine HELLER 1936 MK5 Reflow Soldering Machine SMT Reflow Oven

HELLER 1936 1913 MK5 Lead Free Hot Air Reflow Soldering reflow oven

HELLER 1936 MK3 MK5 reflow oven can be equipped with a dual-track different speed, air-cooled or water-cooled cooling system; the system can achieve the highest reproducibility through the lowest delta Ts. The latest breakthrough in the Mark 5 reflow oven system enables customers to further reduce their acquisition costs. Heller's new heating and cooling improvements will reduce nitrogen gas consumption and electricity consumption by 40%. MK5 series is not only the best reflow soldering system, but also has the best comprehensive value in the industry!

The MK5 reflow oven is a sophisticated equipment used in the electronics manufacturing industry for the soldering process of surface mount components onto printed circuit boards (PCBs). It offers a wide range of functionality and features that enhance soldering accuracy, temperature control, and process flexibility.

Functionality:

1. Temperature Control: The MK5 reflow oven provides precise temperature control throughout the soldering process. It utilizes advanced heating elements and temperature sensors to ensure accurate temperature profiling and thermal stability in each heating zone. This ensures optimal soldering conditions for different components and solder paste types.
2. Conveyor System: The oven features a conveyor system that transports the PCBs through the heating zones. The conveyor speed can be adjusted, allowing for fine-tuning of the soldering process and ensuring proper heat transfer and solder reflow on the PCBs.
3. Multiple Heating Zones: The oven consists of multiple independent heating zones, typically ranging from 4 to 10 zones. Each zone has its own heating elements and temperature control, allowing for precise temperature distribution across the PCB. This configuration accommodates different thermal requirements of various components and soldering profiles.
4. Nitrogen Atmosphere Capability: Some MK5 reflow ovens offer the option to operate in a nitrogen atmosphere. Nitrogen gas minimizes oxidation during the soldering process, resulting in improved solder joint quality, reduced defects, and enhanced reliability, particularly for lead-free soldering processes.
5. Profile Storage and Management: The oven allows users to create, store, and manage multiple temperature profiles for different PCB assemblies. These profiles define the desired temperature ramp-up, soak, and reflow stages, ensuring consistent and repeatable soldering results for various products.
6. Real-Time Monitoring and Feedback: The oven provides real-time monitoring of temperature profiles, conveyor speed, and other process parameters. It offers feedback on the status of each zone, allowing operators to identify and resolve any issues that may affect soldering quality.

Usage Range:

The MK5 reflow oven is suitable for a wide range of soldering applications, including:

1. Surface Mount Technology (SMT) Assembly: It is used for soldering surface mount components onto PCBs. The oven ensures proper solder reflow, creating reliable electrical connections between the components and the PCB pads.
2. Lead-Free Soldering: The oven is capable of handling lead-free soldering processes, which are widely used due to environmental regulations. It provides the necessary thermal profiles and temperature control required for lead-free solder materials, ensuring high-quality solder joints.
3. Mixed Technology PCBs: The oven can handle PCBs with a combination of surface mount and through-hole components. It allows for proper solder reflow for surface mount components while accommodating the higher temperatures required for through-hole soldering.
4. Prototype Development: The MK5 reflow oven is suitable for prototype development and small-scale production. Its flexibility in temperature control and profile management allows for quick iteration and optimization of soldering processes during the early stages of product development.
5. Medium to High Volume Production: The oven is also suitable for medium to high volume production environments. Its multiple heating zones and adjustable conveyor speed enable efficient and consistent soldering across a large number of PCBs.
6. Automotive, Aerospace, and Industrial Electronics: The MK5 reflow oven is commonly used in industries that require high-reliability electronics, such as automotive, aerospace, and industrial sectors. It ensures the quality and integrity of solder joints, meeting the stringent requirements of these applications.

The MK5 reflow oven provides advanced functionality for precise and reliable soldering of surface mount components. It plays a critical role in the electronics manufacturing process, ensuring high-quality solder connections and the overall reliability of PCB assemblies.

Key Features

• Nitrogen / Air Lead-Free Soldering Reflow Oven
• Enhanced Heater Modules & Fastest Cooling Rates
• Lowest Nitrogen & Electrical Usage
• Maintenance Free Design
• One-Step Profiling
• Reflow Oven Process Monitoring Tools
• Dual Lane Design for High Throughput Capacity
