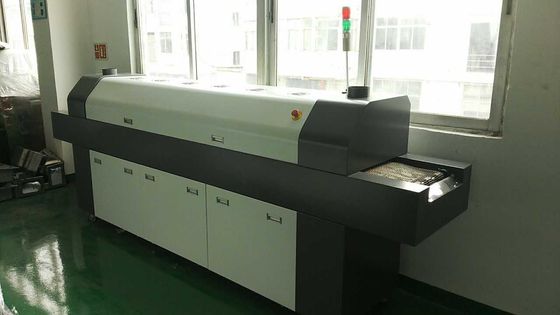

SMT line RF-835LS 8 Zones Reflow Oven Machine LED Reflow Soldering Machine

The 8 zones reflow oven is a versatile equipment used in the electronics manufacturing industry for soldering surface mount components onto printed circuit boards (PCBs). It offers a wide range of functionality and features that enhance soldering accuracy, temperature control, and process flexibility.

The heating system with high efficiency and energy saving of Sweden 110 v nickel flipping hair heat pipe, radiation power peak wavelength 4 um, cooperate with curved reflector, high thermal efficiency, fast temperature rise, special forced hot air circulation system structure, make the PCB and components heated evenly, completely eliminate the "shadow effect".

1. Temperature Control: The 8 zones reflow oven provides precise temperature control throughout the soldering process. Each zone is equipped with individual heating elements and temperature sensors, allowing for precise temperature profiling and thermal stability. This ensures optimal soldering conditions for different components and solder paste types.
2. Adjustable Conveyor Speed: The oven features an adjustable conveyor system that controls the speed at which the PCBs move through the heating zones. This flexibility allows for fine-tuning of the soldering process and ensures proper heat transfer and solder reflow on the PCBs.
3. Multiple Heating Zones: The oven consists of eight independent heating zones, each with its own heating elements and temperature control. This configuration enables precise temperature distribution across the PCB, accommodating different thermal requirements of various components and soldering profiles.
4. Nitrogen Atmosphere Capability: Some 8 zones reflow ovens offer the option to operate in a nitrogen atmosphere. Nitrogen gas minimizes oxidation during the soldering process, resulting in improved solder joint quality, reduced defects, and enhanced reliability.
5. Profile Storage and Management: The oven allows users to create, store, and manage multiple temperature profiles for different PCB assemblies. These profiles define the desired temperature ramp-up, soak, and reflow stages, ensuring consistent and repeatable soldering results for various products.
6. Real-Time Monitoring and Feedback: The oven provides real-time monitoring of temperature profiles, conveyor speed, and other process parameters. It offers feedback on the status of each zone, allowing operators to identify and resolve any issues that may affect soldering quality.

The 8 zones reflow oven is suitable for a wide range of soldering applications, including:

1. Surface Mount Technology (SMT) Assembly: It is used for soldering surface mount components onto PCBs. The oven ensures proper solder reflow, creating reliable electrical connections between the components and the PCB pads.
2. Lead-Free Soldering: The oven is capable of handling lead-free soldering processes, which are widely used due to environmental regulations. It provides the necessary thermal profiles and temperature control required for lead-free solder materials, ensuring high-quality solder joints.
3. Mixed Technology PCBs: The oven can handle PCBs with a combination of surface mount and through-hole components. It allows for proper solder reflow for surface mount components while accommodating the higher temperatures required for through-hole soldering.
4. Prototype Development: The 8 zones reflow oven is suitable for prototype development and small-scale production. Its flexibility in temperature control and profile management allows for quick iteration and optimization of soldering processes during the early stages of product development.
5. Medium to High Volume Production: The oven is also suitable for medium to high volume production environments. Its multiple heating zones and adjustable conveyor speed enable efficient and consistent soldering across a large number of PCBs.
6. Automotive, Aerospace, and Industrial Electronics: The oven is commonly used in industries that require high-reliability electronics, such as automotive, aerospace, and industrial sectors. It ensures the quality and integrity of solder joints, meeting the stringent requirements of these applications.

We are smt support provider for smt machine parts and equipment .such as reflow solder oven, Wave Soldering Machine, Pick and Place Machine, SMT PCB Printer, SMT AOI SPI Machine, SMT Reflow Oven, PCB conveyor , smd counter ,loader & unloader machine ,nozzle / feeder , feeder storage cart smt reel rack , smt grease , solder paste mixer, KIC thermal profiler,smt tape ,SMT Assembly line and so on .

In 2009, Shenzhen wenzhan Technology Co., Ltd. was established to build a more timely and effective communication platform, and realize the company's service tenet of serving leading customers.The engineers of the company are professional technicians who have been certified by the original factory for more than 10 years. They always adhere to the value of putting the interests of customers first, and provide customers with high-quality equipment accessories, consumables, fixtures and technical support services.

In order to effectively reduce the cost of customers, the company set up a machining plant, and changed most of the feeder parts to self-produced parts, so as to ensure sufficient inventory and reduce the cost of customers at the same time.

It is precisely because wenzhan technology has the following advantages over the same industry that more and more customers choose wenzhan as their preferred supplier.

1. Professional pre-sales advice support
2. Excellent after-sales technical service
3. Flexible payment and return policy
4. One stop solution for SMT accessories
5. Stock in the factory with sufficient stock and fast delivery
