Shenzhen Wenzhan Electronic Technology Co., Ltd.

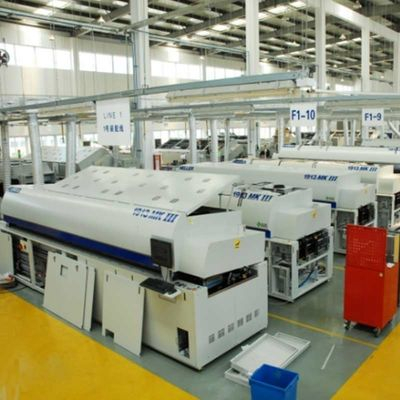

SMT HELLER 1936 MK7 Lead Free Hot Air 10 Zones SMT Reflow Oven

Product Details:
Place of Origin: Guangdong, China
Brand Name: HELLER
Model Number: HELLER 1936 MK7
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set/Sets
Packaging Details: 1.wooden case 2.As your order
Delivery Time: 5-8 days
Payment Terms: T/T, Western Union, Paypal, Credit card
Supply Ability: 10 Piece/Pieces per Week
  • Detail Information
  • Product Description

Detail Information

Product Name: HELLER 1936 MK7 Heating Zones: 10 Zones
Heating Zone Length: 590 Mm Max. Conveyor Speed: 188 Cm/min
Cooling Zones: 3 Zones Max Pcb Width: 558.8 Mm
Heat Type: Convection Installation: Vertical
High Light:

HELLER SMT Reflow Oven

,

188 cm/min SMT Reflow Oven

,

10 Zones hot air reflow oven

Product Description

HELLER 1936 MK7 Lead Free Hot Air Reflow Soldering



The 1936 MK7 from Heller Industries Inc is a Reflow Soldering Equipment with Heating Zone Length 590 mm, Max Pcb Width 558.8 mm.

main feature:
A. Multi-temperature zone design, more temperature control points, to meet the requirements of different temperature curves
B. Effectively eliminate voids, the total void area can be controlled below 1%
C. Efficient production capacity, the average production cycle is 30~60 seconds
D. High-efficiency oil-free vacuum pump unit for shortest depressurization time
E. Efficient flux recovery system to prevent flux residues



SMT HELLER 1936 MK7 Lead Free Hot Air 10 Zones SMT Reflow Oven 0



The latest MK7 reflow soldering system
1. The latest low roof design
2. The latest low-top cover design is adopted, which is convenient for customers to operate and maintain. The surface temperature of the machine is lower, which is environmentally friendly and energy-saving.

Optimized new heating module
Optimized low-height heating module to achieve the best temperature uniformity; can reduce nitrogen consumption by up to 40%, balance airflow saving Nitrogen. The new heating wire has higher heating efficiency and longer life.



HELLER 1936 MK7 SMT Reflow Oven
Overall machine length: 590 cm (232″)
Number of heating zones: 10
Number of cooling zones: 3 upper cooling zone (standard) / lower cooling zone and external cooling zone (optional)



HELLER 2043 MK7 SMT Reflow Oven
Overall machine length: 678 cm (267″)
Number of heating zones: 13
Number of cooling zones: 3 upper cooling zone (standard) / lower cooling zone and external cooling zone (optional)



HELLER 2049 MK7 SMT Reflow Oven
Overall machine length: 744 cm (292″)
Number of heating zones: 15
Number of cooling zones: 4 upper cooling zone (standard) / lower cooling zone and external cooling zone (optional)



HELLER 2156 MK7 SMT Reflow Oven
Overall machine length: 869 cm (342″)
Number of heating zones: 17
Number of cooling zones: 5 upper cooling zone (standard) / lower cooling zone and external cooling zone (optional)



SMT HELLER 1936 MK7 Lead Free Hot Air 10 Zones SMT Reflow Oven 1

SMT HELLER 1936 MK7 Lead Free Hot Air 10 Zones SMT Reflow Oven 2
