Home > products > SMT Reflow Oven > Lead Free 6/8/10/13 Heller Solder Reflow Oven 1826MK7 1718MK 2043MK5 2043MK7 1826MK5 1936MK7 MK5 SMT Reflow Oven MACHINE

Lead Free 6/8/10/13 Heller Solder Reflow Oven 1826MK7 1718MK 2043MK5 2043MK7 1826MK5 1936MK7 MK5 SMT Reflow Oven MACHINE

Product Details

Place of Origin: Guangdong, China

Brand Name: HELLER

Model Number: 1826MK7 1718MK 2043MK5 2043MK7 1826MK5 1936MK7 MK5

Payment & Shipping Terms

Minimum Order Quantity: 1pcs

Price: Negotiable

Packaging Details: 1.wooden case 2.As your order

Delivery Time: 3 days

Payment Terms: T/T, Western Union, Paypal, Credit card

Supply Ability: 10 Piece/Pieces per Week

Get Best Price
Highlight:

Lead Free Heller Solder Reflow Oven

,

1826MK7 Heller Solder Reflow Oven

,

Heller Reflow Oven Machine

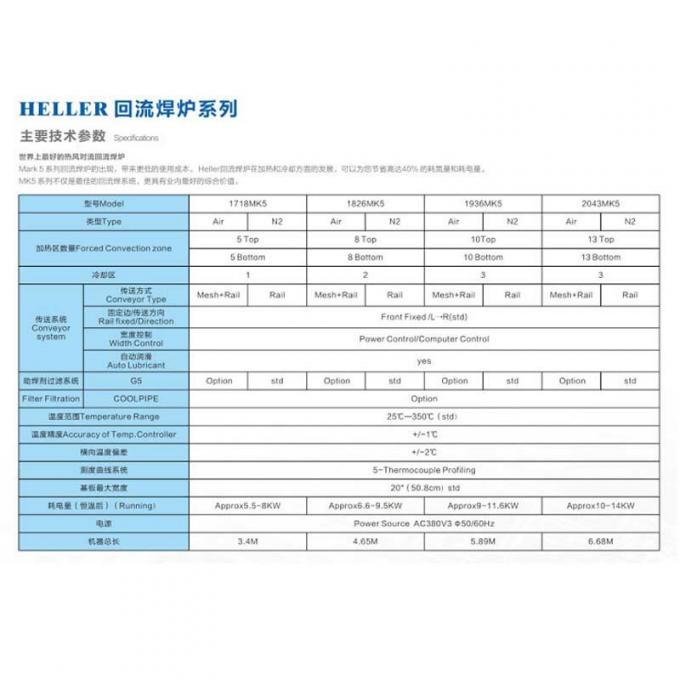

Product Name:
HELLER 1826MK7 1718MK 2043MK5 2043MK7 1826MK5 1936MK7 MK5
Heating Zones:
6/8/10/13 Zone
Heated Length (mm)::
3.430
Max. Conveyor Speed:
188 Cm/min
Cooling Zone:
1 On The Top
Voltage:
480V, 3 Phase, 50/60Hz
Dimension (mm):
5.900 X 1.520 X 1.600
Weight:
2.900kg
Product Name:
HELLER 1826MK7 1718MK 2043MK5 2043MK7 1826MK5 1936MK7 MK5
Heating Zones:
6/8/10/13 Zone
Heated Length (mm)::
3.430
Max. Conveyor Speed:
188 Cm/min
Cooling Zone:
1 On The Top
Voltage:
480V, 3 Phase, 50/60Hz
Dimension (mm):
5.900 X 1.520 X 1.600
Weight:
2.900kg
Lead Free 6/8/10/13 Heller Solder Reflow Oven 1826MK7 1718MK 2043MK5 2043MK7 1826MK5 1936MK7 MK5 SMT Reflow Oven MACHINE

Lead-Free 6/8/10/13 Heller solder Reflow Oven 1826MK7 1718MK 2043MK5 2043MK7 1826MK5 1936MK7 MK5 SMT Reflow Oven MACHINE



HELLER 1936 MK3 MK5 reflow oven can be equipped with a dual-track different speed, air-cooled or water-cooled cooling system; the system can achieve the highest reproducibility through the lowest delta Ts. The latest breakthrough in the Mark 5 reflow oven system enables customers to further reduce their acquisition costs. Heller's new heating and cooling improvements will reduce nitrogen gas consumption and electricity consumption by 40%. MK5 series is not only the best reflow soldering system, but also has the best comprehensive value in the industry!

1826MK5 reflow oven
Key Features
Nitrogen / Air Lead-Free Soldering Reflow Oven
Enhanced Heater Modules & Fastest Cooling Rates
Lowest Nitrogen & Electrical Usage
Maintenance Free Design
One-Step Profiling
Reflow Oven Process Monitoring Tools
Dual Lane Design for High Throughput Capacity

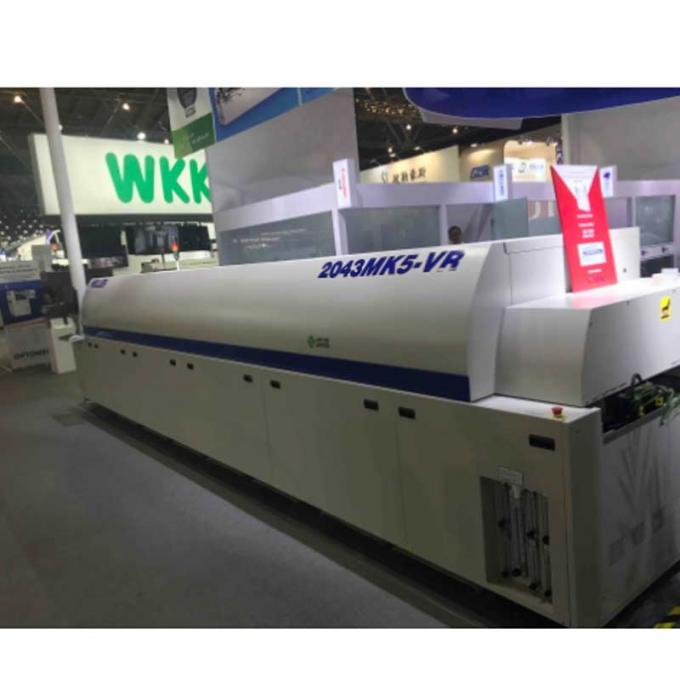

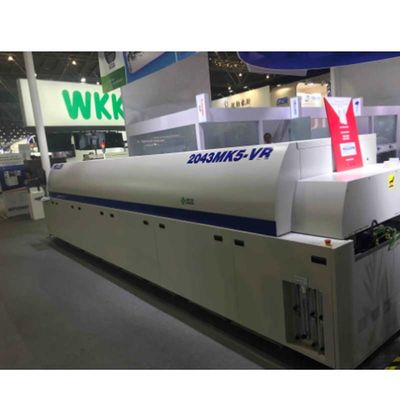

2043MK5 reflow oven
Main Features
Nitrogen / Air Lead-Free Soldering Reflow Oven
Enhanced Heater Modules & Fastest Cooling Rates
Lowest Nitrogen & Electrical Usage
Maintenance Free Design
One-Step Profiling
Reflow Oven Process Monitoring Tools
Optional Dual Lane Design for High Throughput Capacity



1718MK5 reflow oven
Key Features
Nitrogen / Air Lead-Free Soldering Reflow Oven
Enhanced Heater Modules & Fastest Cooling Rates
Lowest Nitrogen & Electrical Usage
Maintenance Free Design
One-Step Profiling & Reflow Oven Process Monitoring Tools
Dual Lane Design for High Throughput Capacity


1826MK7 reflow oven
Key Features
Highest Yield Reflow Oven!
Lowest Delta T on the board
Lowest Nitrogen & Electrical Usage!
Maintenance Free!
VOID Free Reflow Oven – with Vacuum option
Industry 4.0 Compatibility
Integrated Cpk software at No Charge!


1936MK5 reflow oven
Key Features
Nitrogen / Air Lead-Free Soldering Reflow Oven
Enhanced Heater Modules & Fastest Cooling Rates
Lowest Nitrogen & Electrical Usage
Maintenance Free Design
One-Step Profiling
Reflow Oven Process Monitoring Tools
Dual Lane Design for High Throughput Capacity

Lead Free 6/8/10/13 Heller Solder Reflow Oven 1826MK7 1718MK 2043MK5 2043MK7 1826MK5 1936MK7 MK5 SMT Reflow Oven MACHINE 0Lead Free 6/8/10/13 Heller Solder Reflow Oven 1826MK7 1718MK 2043MK5 2043MK7 1826MK5 1936MK7 MK5 SMT Reflow Oven MACHINE 1

Lead Free 6/8/10/13 Heller Solder Reflow Oven 1826MK7 1718MK 2043MK5 2043MK7 1826MK5 1936MK7 MK5 SMT Reflow Oven MACHINE 2

Lead Free 6/8/10/13 Heller Solder Reflow Oven 1826MK7 1718MK 2043MK5 2043MK7 1826MK5 1936MK7 MK5 SMT Reflow Oven MACHINE 3
