Home > products > SMT Spare Parts > FSP300-60ATV PF Switching Power Supply 150W - 250W Industrial Computer Power Supply

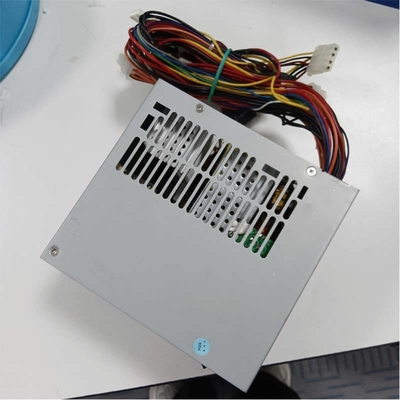

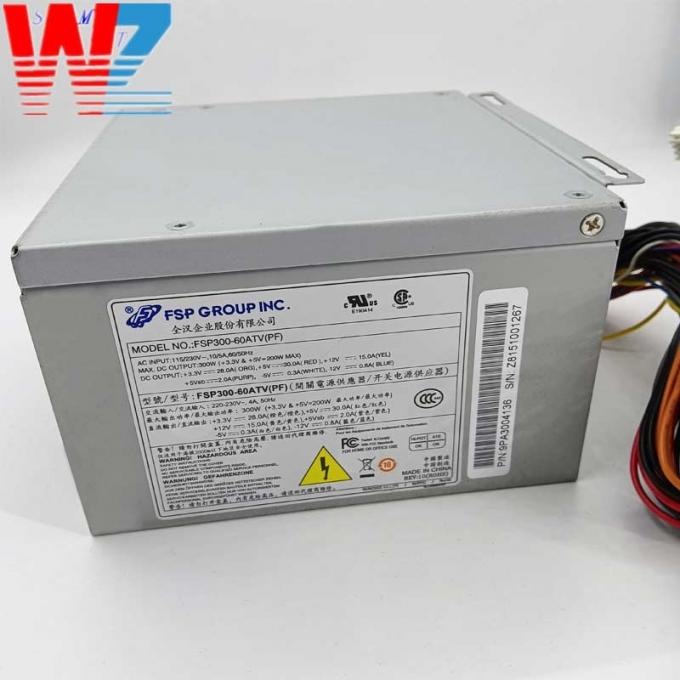

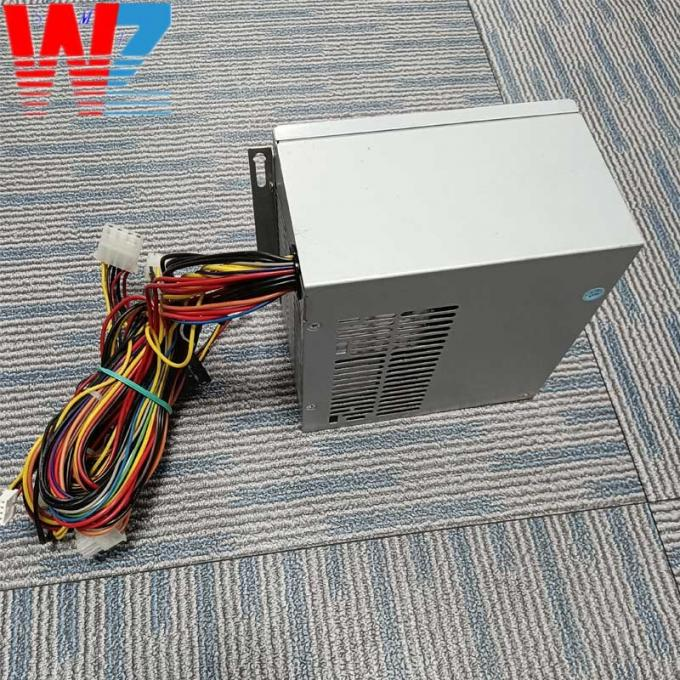

FSP300-60ATV PF Switching Power Supply 150W - 250W Industrial Computer Power Supply

Product Details

Place of Origin: China

Model Number: FSP300-60ATV(PF)

Payment & Shipping Terms

Minimum Order Quantity: 1pcs

Price: Negotiable

Packaging Details: 1.Wooden case and vacuum package 2.As your requirements

Delivery Time: 3 days

Payment Terms: T/T, Western Union, Paypal, Credit card

Supply Ability: 3000

Get Best Price
Highlight:

FSP300-60ATV switching power supply

,

Pentium processors switching power supply

,

250W Industrial Computer Power Supply

Product Name:
Power Supply FSP300-60ATV(PF)
Model:
FSP300-60ATV(PF)
Rating Power:
150W - 250W
Interface Type:
20 + 4Pin
Test Condition:
100% Tested Before Shipping
Application:
Desktop, Server
Condition:
New
Products Status:
In Stock
Product Name:
Power Supply FSP300-60ATV(PF)
Model:
FSP300-60ATV(PF)
Rating Power:
150W - 250W
Interface Type:
20 + 4Pin
Test Condition:
100% Tested Before Shipping
Application:
Desktop, Server
Condition:
New
Products Status:
In Stock
FSP300-60ATV PF Switching Power Supply 150W - 250W Industrial Computer Power Supply

Power Supply FSP300-60ATV(PF) switching power supply FSP300-60PLN Industrial Computer Power Supply



Product SKU:FSP17976_Se
Condition:Brand New
Current:115/230V~,10/5A,60/50Hz
Voltage:300W(+3.3V & +5V=200W MAX)
Power:300W
Supports Pentium processors from Intel and Athlon from AMD
passive PFC at 300 watts ATX

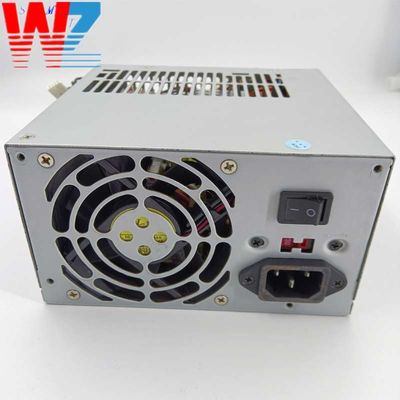

80 mm fan, without temperature control
20 + 4 pin plug

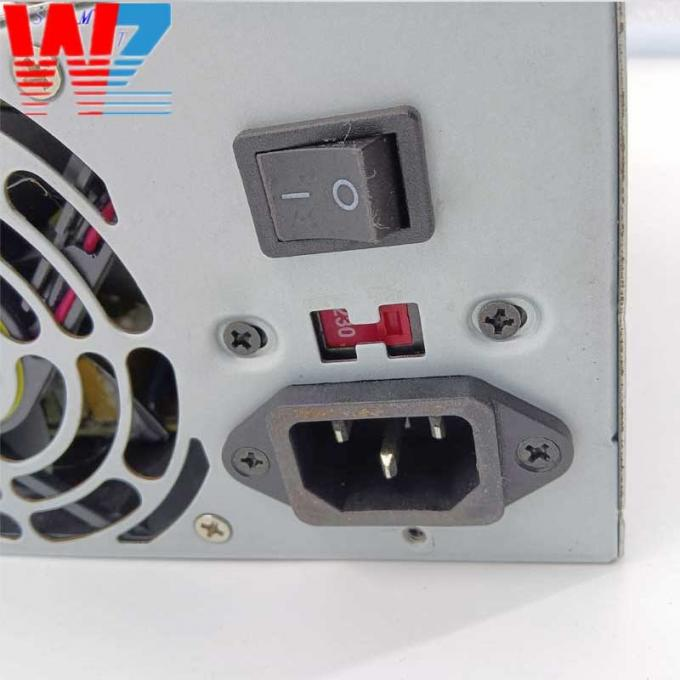

Power switch for on and off
UL, TÜV and VDE approval
Housing 140 x 150 x 86mm (PS / 2 design)
Robust universal office and industrial power supply



Maintenance and instructions for the Han FSP300-60PFN adapter:
1. Wiring is exposed. If the cable is worn in any way, this may result in some internal cable exposure. If the cable is severely worn and the cable is exposed, the adapter should be stopped.

The cable is broken. A cable break may occur in the flexible connector near the adapter module or connector. These flexible joints are used to bend the cable when the adapter module is wound, but may become brittle over time, causing breakage. If the cable hits the edge of an object such as a table or stool, it may also break.

2. The stitches are bent or broken. If the computer port is not properly inserted, the adapter pins may bend or break completely. Unplugging or inserting the cable at an angle may cause the center pin of the adapter to bend. If this happens frequently, the pins may break and the adapter will stop working.

3. The cable is loose. If your cable is loose, try unplugging the cable and reconnecting it to make sure it is in place. If the cable is still loose, check for broken or broken pins or connectors or cables. If the cable is damaged and it is loose, you must replace the adapter or cable.

4. The cable is worn. Cable wear is most likely to occur at either end of the cable connecting the adapter module to the connector that connects to the computer. This may be due to the number of times the cable wraps around the adapter module or the cable is subjected to any unnecessary stress.

Tags:Han FSP300-60PFN Adapter,Han FSP300-60PFN Charger,Han FSP300-60PFN Power Supply,replacement adapter for Han FSP300-60PFN,Han power supply FSP300-60ATV (pf).






MINIMUM
LOAD
NORMAL
LOAD
MAXIMUM
LOAD
LOAD REG.
LINE REG
RIPPLE &
NOISE
+3.3V
0.3A
14A
15/28A
± 5%
± 1%
50mV P-P
+5V
0.5A
8.75A
30/21.5A
± 5%
± 1%
50mV P-P
+12V
0.0A
4.2A
15A
± 5%
± 1%
120mV P-P
-12V
0.0A
0.4A
0.8A
± 10%
± 2%
120mV P-P
-5V
0.0A
0.15A
0.3A
± 10%
± 2%
100mV P-P
+5Vsb
0.0A
1.0A
2.0A
± 5%
± 1%
50mV P-P
