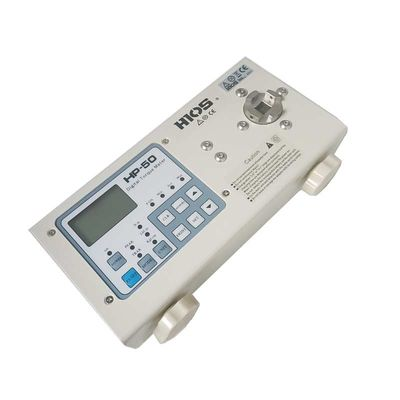

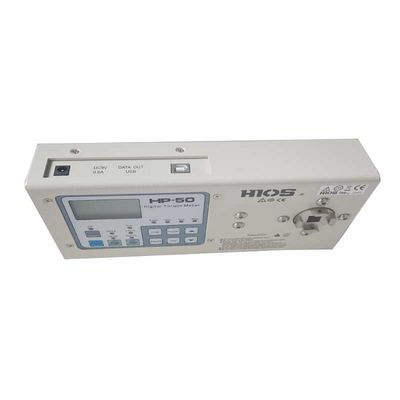

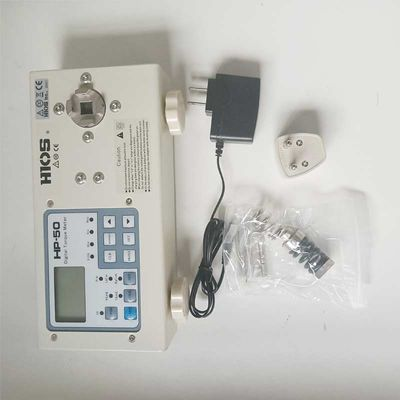

SMT Spare Parts Hios HP-50 HP-100 HP-10 Digital Torque Meter Tester

SMT Spare Parts Hios HP-50 HP-100 HP-10 Digital Torque Meter Tester
Brand Name
hios
Product Model
HP-50
Country Of Origin
Japan
MOQ
1pcs
Unit Price
Negotiable
Payment Method
T/T,Western Union,Paypal,Credit card
Supply Capacity
5000
Product Details
Highlight:

Hios HP-50 digital torque meter

,

Electronic Power digital torque meter

,

Hios HP-10 digital torque tester
Product Name: Hios HP-50 Digital Torque Meter Tester
Model: HP-50 /HP-10 /HP-100
Power: Electronic, 1.2V*6 Ni-MH Battery
Peak Range: 0.15-5.00
Battery Life: Around 500 Times Rechargeable
Accuracy: In The Range Of ± 0.5% (full Scale)
Working Hours After Fully Charged: About 16 Hours
Weight: 1.8Kg
Responsive Frequency: 600Hz
Output: 7.5-8.5V DC (0.5A)
Product Description
Detailed Specifications And Features
HP-50 Digital torque meter tester testing equipment supplier
  • Turning off automatically(it will automatically turn off 10 minutes after leaving it without use)
  • Storing data(it can record 100 torque data,and can store, browse partly delete and completely delete them)
  • It can calculate the MAX, MIN and AVE
  • Deleting torque data automatically(it can adjust the time of automatic reset with the seitch)
  • Adjusting zero automatically(it can automatically adjust zero)
  • Setting torque data and reminding workers with the buzzer
Application

The tension testing machines are mostly used for inspecting the torque of electric screwdrivers, torque drivers,and wrenches,as well as for official inspection and function control,used for measuring the torque setting of electric screwdrivers, torque drivers,and wrenches,used for many other applications for which jig tools are devised.

Designed as easy-to operate ,accurate ,functional ,and portable tools.

The Digital Torque Meter is the same with many industries to product and service.

Model Measuring range Accuracy Responsive
HP-10 0.15-10.00kgf.cm

± 0.5%

+1 digit

 600HZ
0.015-1.000N.m
0.15-9.00Lbf.in
HP-50 0.5-50.0kgf.cm

± 0.5%

+1 digit

 600HZ
0.05-5.0N.m
0.5-45.0Lbf.in
HP-100 1.5-100.0kgf.cm

± 0.5%

+1 digit

 600HZ
0.15-10.N.m
1.5-90.0Lbf.in

SMT Spare Parts Hios HP-50 HP-100 HP-10 Digital Torque Meter Tester 0

SMT Spare Parts Hios HP-50 HP-100 HP-10 Digital Torque Meter Tester 1

hios HP-50 /HP-10 /HP-100
mode HP-10 HP-50 HP-100
peak range N.m 0.015-1.000 0.15-5.00 0.15-.10.00
N.cm 1.5-100.0 15-500 15-1000
Lbf.in 0.15-9.00 1.5-45.0 1.5-90.0
(Kgf.cm) 0.15-10.00 1.5-50.0 1.5-100.0
Accuracy In the range of ± 0.5% (full scale)
Power 5 1.2V 1000mA Ni-MH battery
Working hours after fully charged
(Continuous use)		 About 16 hours
Battery Life Around 500 times rechargeable
Size Si See Dimension Chart
Weight 1.8Kg
AC Adapter In the 100-240V AC (50 or 60Hz) to work
Output 7.5-8.5V DC (0.5A))

SMT Spare Parts Hios HP-50 HP-100 HP-10 Digital Torque Meter Tester 2SMT Spare Parts Hios HP-50 HP-100 HP-10 Digital Torque Meter Tester 3
