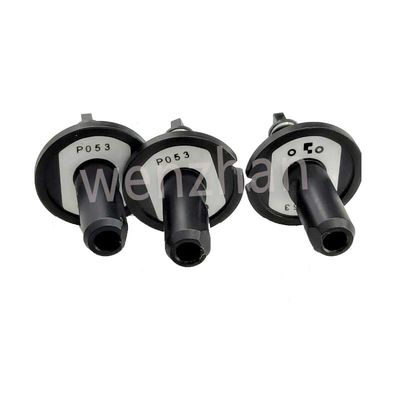

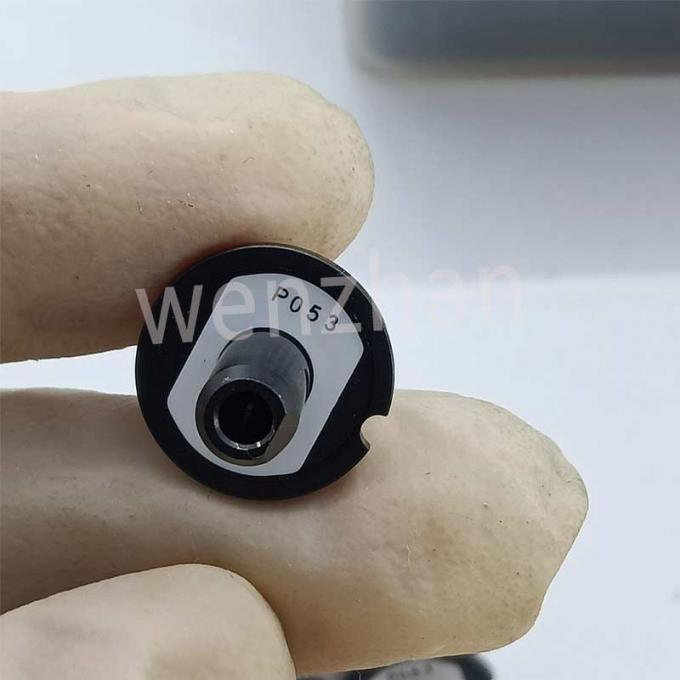

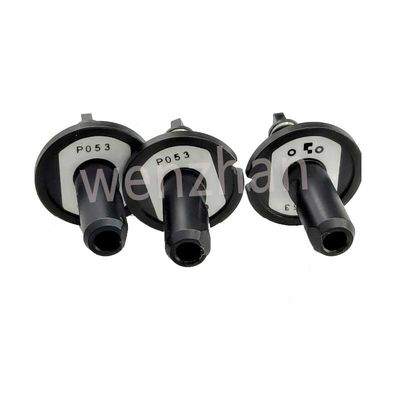

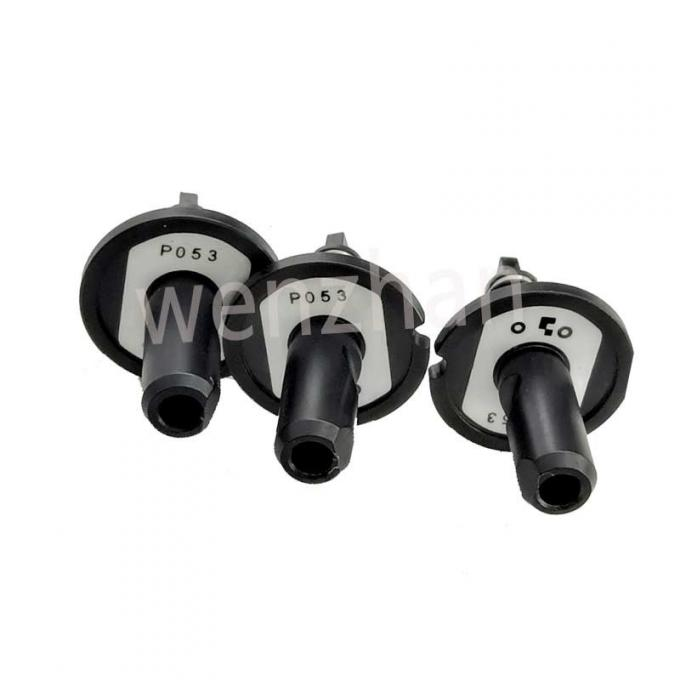

Ipulse SMT Spare Parts M6ex M7 M8 Nozzle LC6-M772D-00X ipulse P053 Nozzle

ipulse LC6-M772D-00X pick and place machine M6ex M7 M8 P053 nozzle

The i-Pulse P053 nozzle is a specialized component used in pick and place machines for electronic component placement.

It is designed to precisely pick up and handle small-sized components during the assembly process. The P053 nozzle offers specific features

that enable efficient and accurate component placement.

More Details:

Functionality:

1. Component Handling: The i-Pulse P053 nozzle is designed to handle small electronic components, such as resistors, capacitors, and integrated circuits. It provides a secure grip on these components to ensure reliable pick and place operations.
2. Versatility: The P053 nozzle is compatible with various types of pick and place machines, making it suitable for a wide range of electronic assembly applications. It can be used with machines that support the nozzle mounting specifications.
3. Precision Placement: The P053 nozzle is engineered for precise component placement. It allows for accurate positioning and orientation of components on the printed circuit board (PCB) to achieve high-quality soldering connections.
4. Easy Changeover: The P053 nozzle is designed for quick and convenient changeover. It can be easily replaced or interchanged with other compatible nozzles, allowing for efficient adaptation to different component sizes and shapes.

Usage Instructions:

1. Nozzle Selection: Choose the appropriate P053 nozzle based on the size and type of component to be picked and placed. Refer to the machine's specifications and component datasheets for nozzle compatibility and selection guidelines.
2. Nozzle Installation: Follow the manufacturer's instructions to install the P053 nozzle onto the pick and place machine. Ensure proper alignment and secure attachment to prevent any misalignment or dislodgment during operation.
3. Calibration: Calibrate the machine to optimize the performance of the P053 nozzle. This may involve adjusting the nozzle height, vacuum pressure, or other parameters to ensure accurate component detection and placement.
4. Programming: Use the pick and place machine's programming interface to define the pick and place sequence for the P053 nozzle. Set the component positions, orientations, and any specific handling requirements.
5. Operation: Start the pick and place process, and the machine will automatically use the P053 nozzle to pick up components from the feeders and place them onto the designated positions on the PCB. Monitor the operation for any errors or issues.
6. Maintenance: Regularly inspect the P053 nozzle for any signs of wear or damage. Clean the nozzle as recommended by the manufacturer to remove any debris or contaminants that may affect its performance. Replace the nozzle if necessary.

The i-Pulse P053 nozzle is a reliable tool for precise component handling and placement in pick and place machines. With its versatility and

accuracy, it contributes to the efficient and high-quality assembly of electronic components onto PCBs.
