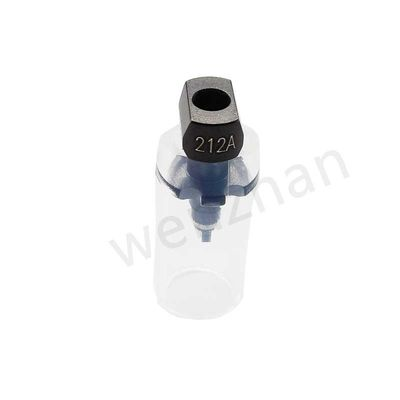

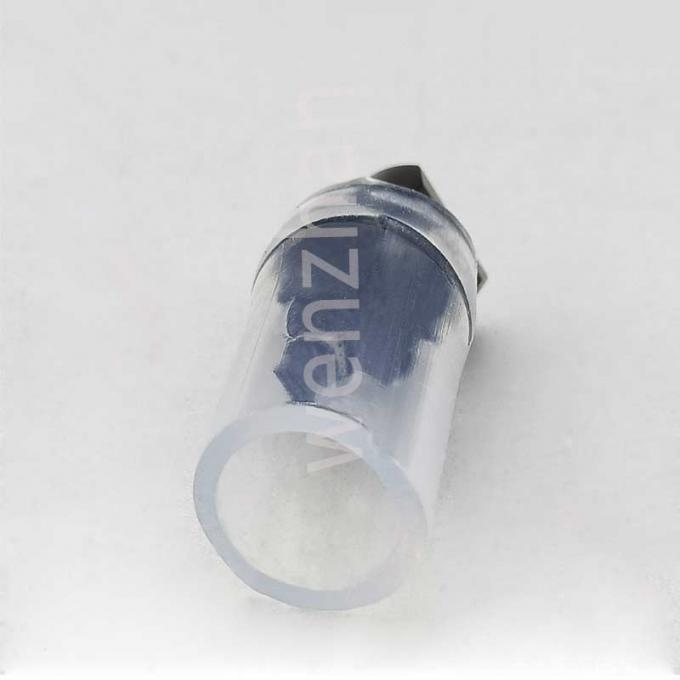

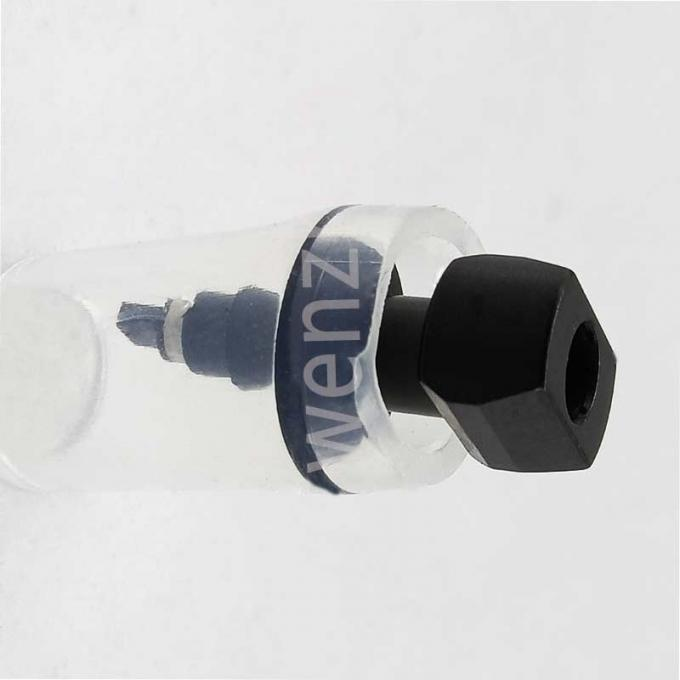

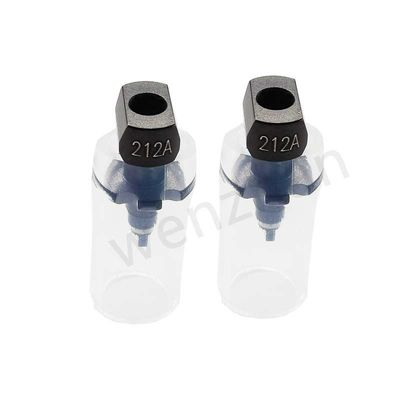

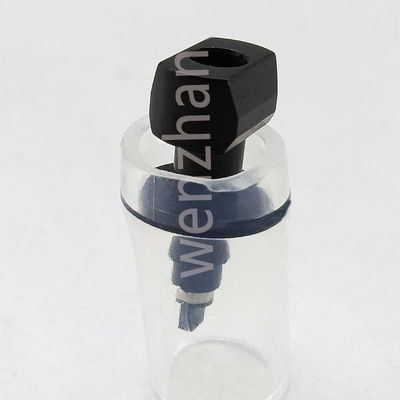

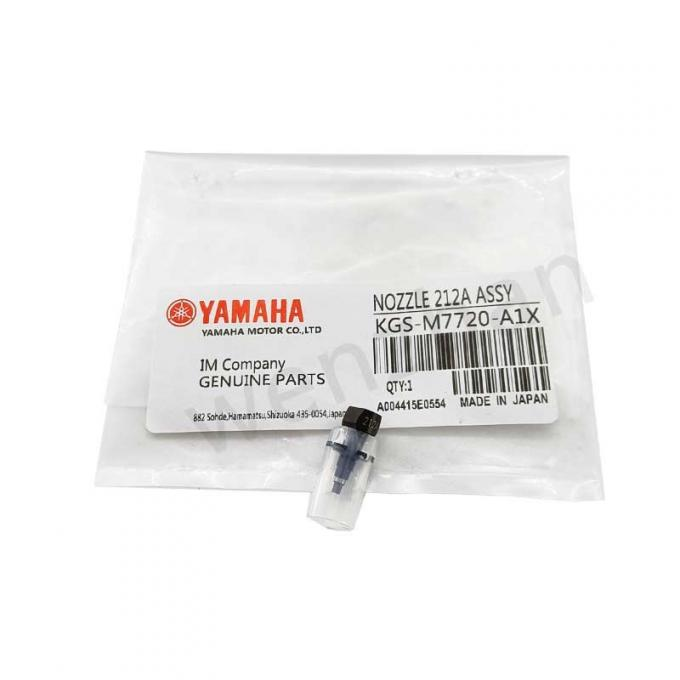

SMT YAMAHA Pick And Place Machine KGS-M7720-A1X YG100 Nozzle 212a Nozzle

Quantity:




Inquire Add to Basket

212a Nozzle KGS-M7720-A1X Nozzle KGS-M7720-A1X YG100 Nozzle

Product Details

Highlight:

212a Nozzle

,

KGS-M7720-A1X Nozzle

,

KGS-M7720-A1X YG100 Nozzle

Product Name: YAMAHA YG100 212a KGS-M7720-A1X Nozzle

Brand: YAMAHA

Condition: New, Original

Warranty Of Core Components: 3 Months

Quality: Top

Package: Foam Package+Plastic BOX+Carton Box

Type: SMT Machine Parts

Single Package Size: 16cm*13cm*11cm

Single Gross Weight: 0.1 Kg

Delivery: Ups,dhl,fedex,etc...

Product Description

Detailed Specifications And Features

SMT YG100 212A NOZZLE KGS-M7720-A1X YAMAHA OR 212A NOZZLE FOR YAMAHA YG100

Name:YAMAHA Nozzle
Brand:YAMAHA
Model:YAMAHA Nozzle 212A
Specification:YAMAHA 2124A
Condition:original/copy
Quality:top qualiy
Stock:large
Payment:L/C T/T D/P Western Union Paypal Money Gram And Others
Shipment:In three days
Warranty: 1 year
Delivery:fedex,ups,dhl,as required
Package:carton box with foam protect

Brand	machine model	specification
YAMAHA	YV100II	31A / 32A / 35A / 39A
YAMAHA	YV100X / XG	71A / 72A / 74A / 76A / 79A
YAMAHA	YV88XG	61F / 62F / 63F / 69F
YAMAHA	FNC	71F / 72F / 73F / 79F
YAMAHA	YG12 / YS24	301A / 311A / 302A / 310A / 303A 314A / 304A / 315A / 305A / 316A 313A / 314A / 309A / 312A / 306 / 317
YAMAHA	YG200	201 / 201A / 202A / 203A / 209A / 222F
YAMAHA	YG100	211A / 212A / 213A / 214A / 215A / 219A

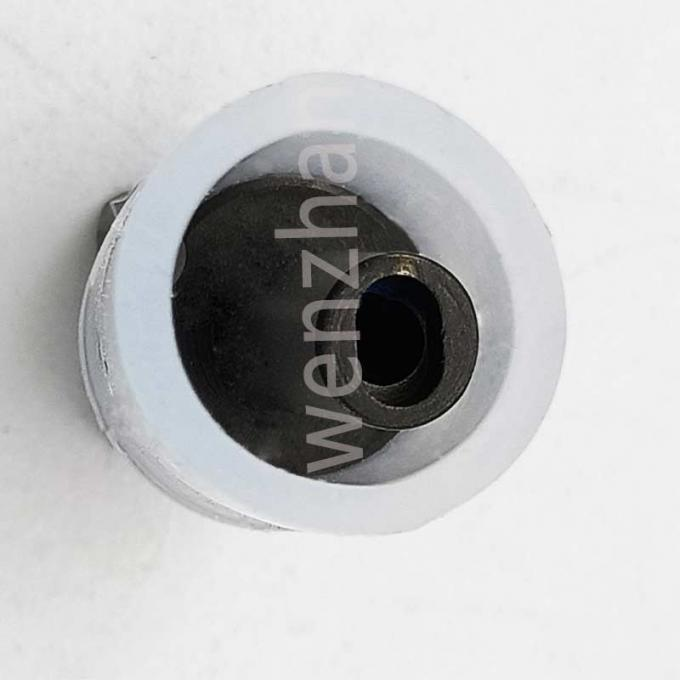

SMT YAMAHA Pick And Place Machine KGS-M7720-A1X YG100 Nozzle 212a Nozzle 0

Related Nozzles
YAMAHA nozzle specification

Brand	model	specification	Material of nozzle tip
YAMAHA	YV100II 31#NOZZLE	0402/0603/0805(X)	Tungsten steel
YAMAHA	YV100II 31#NOZZLE	0402/0603/0805(X)	Diamond steel
YAMAHA	YV100II 32#NOZZLE	For IC of tiny size	Tungsten steel
YAMAHA	YV100II 39#NOZZLE	0603"0"hole	Tungsten steel
YAMAHA	YV100II 39#NOZZLE	0603"0"hole	Diamond steel
YAMAHA	YV100II 33#NOZZLE	For IC	Tungsten steel
YAMAHA	YV100II 34#NOZZLE	For IC	Tungsten steel
YAMAHA	YV100II 35#NOZZLE	For diode	Tungsten steel
YAMAHA	YV100II 36#NOZZLE	For diode	Tungsten steel
YAMAHA	YV100X 71A NOZZLE	0402/0603X	Tungsten steel
YAMAHA	YV100X 71A NOZZLE	0402/0603X	Diamond steel
YAMAHA	YV100X 72A NOZZLE	0805 X	Tungsten steel
YAMAHA	YV100X 72A NOZZLE	0805 X	Diamond steel
YAMAHA	YV100X 73#NOZZLE	For IC of tiny size	Tungsten steel
YAMAHA	YV100X 74#NOZZLE	For IC	Tungsten steel
YAMAHA	YV100X 75#NOZZLE	For diode	Tungsten steel
YAMAHA	YV100X 79#NOZZLE	0603"0"hole	Tungsten steel
YAMAHA	YV100X 79#NOZZLE	0603"0"hole	Diamond steel
YAMAHA	YV100X 71#NOZZLE	1.0x0.8X	Tungsten steel
YAMAHA	YV100X 72#NOZZLE	1.5x1.0X	Tungsten steel
YAMAHA	YV100X 73#NOZZLE	For IC of tiny size	Tungsten steel
YAMAHA	YV100X 79#NOZZLE	“0"hole	Tungsten steel
YAMAHA	YV100X	71f/72f/79f	Diamond steel
YAMAHA	YS12/YG300 NOZZLE	301/302/309	Diamond steel
YAMAHA	YS12/YG300 NOZZLE	303/304/305	Tungsten steel
YAMAHA	YG200 NOZZLE	201/202/209/203/204	Tungsten steel
YAMAHA	YG200 NOZZLE	201/202/209	Diamond steel
YAMAHA	YG100 NOZZLE	211/212/213/214	Tungsten steel
YAMAHA	YG100 NOZZLE	2-11/212	Diamond steel
YAMAHA	YV112	51#52#	Tungsten steel
YAMAHA	YV112	53#54#	Plastic steel
YAMAHA	YV88XG NOZZLE	61A/62A/63A/64A	Tungsten steel
YAMAHA	YV88 NOZZLE	61F/62F/63F/64F	Tungsten steel
YAMAHA	YM66 S2	0402/0603/0805	Tungsten steel
YAMAHA	YM66 S1/S3	0402/0603/0805	Tungsten steel

YAMAHA nozzle part number:

KV8-M7710-A1X NOZZLE 71A ASSY.
KV8-M7720-A1X NOZZLE 72A ASSY.
KV8-M7730-00X NOZZLE 73A
KV8-M7740-A0X NOZZLE 74A
KV8-M7760-00X NOZZLE 76A
KM0-M711A-31X TYPE 31
KM0-M711C-02X TYPE 32
KM0-M711D-00X TYPE 33
KM0-M711E-00X TYPE 34
KG7-M71AB-A0X TYPE 35
KV8-M71N1-A0X NOZZLE 71F ASSY 1 TYPE71F A
KV8-M71N2-A0X NOZZLE 72F ASSY 1 TYPE72F A
KV8-M71N3-A0X NOZZLE 73F ASSY 1 TYPE73F
KGT-M7710-A0X NOZZLE 201A ASSY. 1 Type 201A
KGT-M7720-A0X NOZZLE 202A ASSY. 1 Type 202A
KGT-M7730-A1X NOZZLE 203A ASSY. 1 Type 203A
KGT-M7760-A0X NOZZLE 206A ASSY. 1 Type 206A
KGT-M7790-A0X NOZZLE 209A ASSY. 1 Type 209A
KV8-M711N-A0X NOZZLE & SHAFT ASSY. 1
KV8-M71U0-01X NOZZLE ASSY. 1 71/ 72/ 73F
KV8-M71N1-A0X NOZZLE 71F ASSY. 1
KV8-M71U5-00X SCREW 2
KV8-M71N2-A0X NOZZLE 72F ASSY. 1
KV8-M71N3-A0X NOZZLE 73F ASSY. 1
KV8-M87XD-A0X NOZZLE 73F-D ASSY. 1 Op.
KV8-M71U8-00X BLOCK, NOZZLE 1
KV8-M71R1-10X SHAFT 1 1
KV8-M71R1-20X SHAFT 1 1
KV8-M71R1-30X SHAFT 1 1
KV8-M712N-A0X NOZZLE & SHAFT ASSY. 1
KV8-M71U0-10X NOZZLE ASSY. 1 71/ 79/ 73F
KV8-M71N9-A0X NOZZLE 79F ASSY. 1
KV8-M713N-A0X BLOCK & NOZZLE ASSY
KV7-M7710-A1X NOZZLE 61A ASSY.
KV7-M7713-00X O-RING
90200-02J015 O-RING
KV7-M7720-A1X NOZZLE 62A ASSY.
KV7-M7730-00X NOZZLE 63A
KV7-M7740-A0X NOZZLE 64A ASSY.
KV7-M7741-00X BODY. NOZZLE 64A
KGB-M7742-00X O-RING
90990-17J013 O-RING
KV7-M7750-A0X NOZZLE 65A ASSY.
KV7-M7751-00X BODY. NOZZLE 65A
KGA-M7752-00X O-RING
90990-17J015 O-RING
KV7-M7760-00X NOZZLE 66A
KV7-M77GX-A0X CIRCLE NOZZLE 6A
KV7-M7790-A0X NOZZLE 69A ASSY.
Machine Assembleon MG-Series
P/N: KGT-M7710-A0 Des: Nozzle,#201 0.6 / 0.8
P/N: 9498 396 01480 Des: Nozzle,#202 1.0 / 1.7
P/N: KGT-M7790-A0 Des: Nozzle,#209 1.2 / 0.65
Machine
P/N: PA 2962/47 (5322 360 10493) Des: Nozzle,#71A (0.6/0.8)
P/N: PA 2962/48 (5322 360 10494) Des: Nozzle,#72A (1.0/1.7)
P/N: PA 2962/45 (9965 000 02777) Des: Nozzle,#73A (4.0/3.0/2.0)
P/N: PA 2962/44 (5322 360 10495) Des: Nozzle,#74A (O-ring)
P/N: PA 2962/46 (5322 360 10496) Des: Nozzle,#76A, MELF
P/N: PA 2962/38 (5322 360 10484) Des: Nozzle,#71F
P/N: PA 2962/39 (5322 360 10485) Des: Nozzle,#72F
P/N: PA 2962/40 (5322 360 10486) Des: Nozzle,#73F
P/N: SPECIAL
Machine Assembleon Topaz, Emerald
P/N: 5322 360 10198 (PA2962/75) Des: Nozzle,#31 (UFO Tip) without Spring
P/N: 5322 360 10433 Des: Nozzle,#31 (Round Tip) Special type, without Spring
P/N: 5322 360 10425 (PA2962/78) Des: Nozzle,#31 (X Tip, 1.0/1.2) Spring loaded
P/N: 5322 360 10199 (PA 2962/71) Des: Nozzle,#32-1 with Reflector
P/N: 5322 360 10201 (PA 2962/72) Des: Nozzle,#32-2 (4.0/3.0/2.0)
P/N: 5322 360 10202 (PA 2962/73) Des: Nozzle,#33
P/N: 5322 360 10203 (PA 2962/74) Des: Nozzle,#34
P/N: 5322 360 10272 (PA2962/76) Des: Nozzle,#35, Melf
P/N: SPECIAL Des: Nozzle,Connector Nozzles
Machine Assembleon Emerald-X(i)II
P/N: PA 2962/97 Des: Nozzle,61A 0.9 / 0.5
P/N: PA 2962/98 Des: Nozzle,62A 1.0 / 1.7
P/N: 5322 360 10476 (PA 2962/93) Des: Nozzle,63A
P/N: 5322 360 10497 Des: Nozzle,64A
P/N: 5322 360 10477 Des: Nozzle,65A
P/N: KV7-M71N1-A0X Des: Nozzle,61F 0.6 / 0.8
P/N: KV7-M71N2-A0X Des: Nozzle,62F 1.0 / 1.7
P/N: KV7-M71N3-A1X Des: Nozzle,63F
P/N: KV7-M71N4-A0X Des: Nozzle,64F
P/N: KV7-M71N5-A0X Des: Nozzle,62F
Machine Assembleon Sapphire, Comet
P/N: 5332 360 10335 Des: Nozzle,Type 51 0.9 / 0.5
P/N: 5322 479 60083 Des: Nozzle,Type 52 1.4 / 0.8
P/N: 5322 479 60084 Des: Nozzle,Type 53 3.0 / 2.0
P/N: 5322 360 10289 Des: Nozzle,Type 54 6.0 / 4.0
P/N: 5322 360 10219 Des: Nozzle,Type 55 10.0 / 8.0
