Intelligent Electronic Component Factory SMD Reel Holder Smart Storage Rack

Product Details

Place of Origin: CHINA

Brand Name: WZ

Model Number: WZ-ZNLJ1400 WZ-ZNLJ1100 WZ-ZNLJ250

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: Negotiable

Packaging Details: wooden box

Delivery Time: 5 ~8day

Payment Terms: L/C, D/A, D/P, T/T

Supply Ability: 100000

Get Best Price
Highlight:
Product Name:
Intelligent SMT Smart Storage Rack
Model:
WZ-ZNLJ1400 WZ-ZNLJ1100 WZ-ZNLJ250
Application:
Storage Electronic Component
Quality:
Top
Condition:
New
Stock:
Large
Applicable:
7~37mm
Package:
Wooden Box
Product Name:
Intelligent SMT Smart Storage Rack
Model:
WZ-ZNLJ1400 WZ-ZNLJ1100 WZ-ZNLJ250
Application:
Storage Electronic Component
Quality:
Top
Condition:
New
Stock:
Large
Applicable:
7~37mm
Package:
Wooden Box
Intelligent Electronic Component Factory SMD Reel Holder Smart Storage Rack

Intelligent Electronic Component Factory SMD Reel Holder Smart Storage Rack

1. Realize one-to-one digital and lean management and control of electronic materials, the whole process ofusing link can be traced.
2. Adopt intelligent material warehouse to automatically prepare materials, reduce the workload of materiapreparation personnel by more than 90%
3. Through deep integration with MES system, the whole process is paperless and automatic.
4. Material Preparation is strictly in accordance with the principles of tailings priority, first in, first out and soon, so as to reduce the production of dull materials, reduce the cost of materials.
5. Into the charging and error prevention system, ensure the correct rate of material loading, reduce the loss caused by material loading error.
6. Digital, information, intelligent management, to open up materials, finished goods circulation information, to ensure the consistency of accounts



Technical Parameter
name wz-znlj-1400 wz-znlj-1100 wz-znlj-250
form fixed fixed fixed
dimension 2130*400*1950mm 2130*400*2090mm 2130*400*1950mm
applicable 7 inch 16mm 7 inch=16mm 13inch =37mm 13inch 37mm
plate number 1400 plate 7inch=1000 plate 13inch=100 plate 250 plate
layer number 7 7inch=5 13inch=2 5
surface number double-sided double-sided single-sided single-sided



1. Industrial aluminum profile and anti-static paint ------ column are made of industrial aluminum profile, good wear resistance and corrosion resistance, and after sheet metal and anti-static paint surface treatment does not hurt hands, long-term use without deformation

2. Dual gravity and infrared sensor ------ using self-developed patented gravity sensor, durability test over 120,000 access materials

3. RGB LED lamp ------ Use RGB LED lamp, you can freely match the color of the light, support multiple sets of work orders at the same time light up to pick up materials out of the warehouse

4. Fast shelf, random storage ------ Shelf only need to scan the unique code of the material, can be randomly stored, do not need to scan the storage position of the shelf each time

5. Fast off the shelf ------ when taking the material according to the color of the light, directly take the material of the same color to complete the off shelf, and the induction shelf will automatically turn off the light to complete the material

6. Error prevention function ------ The sensing shelf will be bright red and alarm sound, which can effectively avoid personnel not to operate

7. Double-sided storage, multiple sets of work orders out of the warehouse at the same time ------ Support double-sided storage, support multiple sets of work orders on the same time to pick up materials out of the warehouse

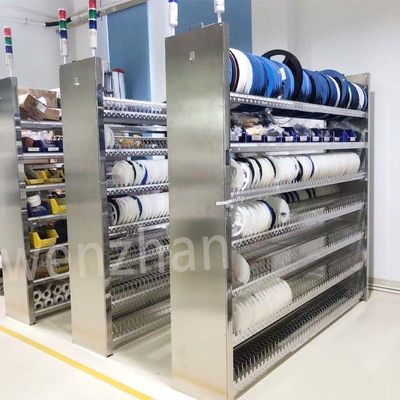

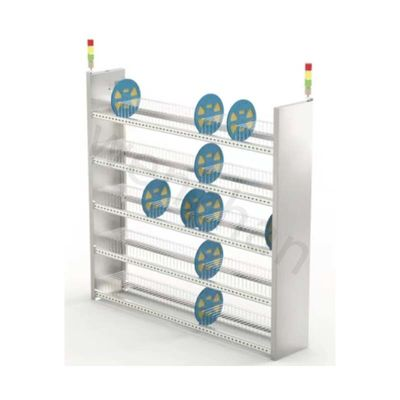

Intelligent Electronic Component Factory SMD Reel Holder Smart Storage Rack 0Intelligent Electronic Component Factory SMD Reel Holder Smart Storage Rack 1

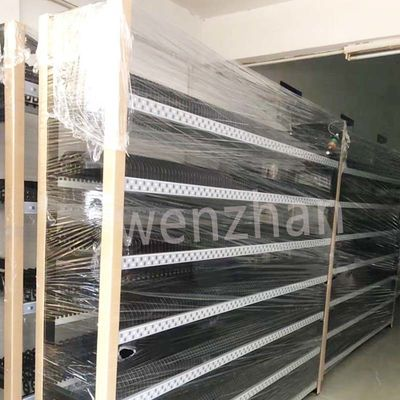

Intelligent Electronic Component Factory SMD Reel Holder Smart Storage Rack 2
