| MOQ: | 1pcs |
| Price: | 52112$ |
| Standard Packaging: | 1.wooden case 2.As your order |
| Delivery Period: | 5-8 days |
| Payment Method: | T/T, Western Union, Paypal, Credit card |
| Supply Capacity: | 10 Piece/Pieces per Week |

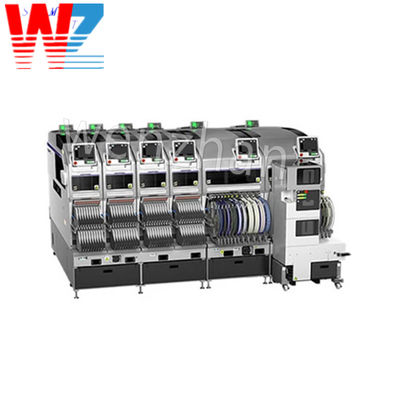

FUJI NXT M3 M6 III PICK AND PLACE MACHINE,FUJI NXT III MACHINE
Name:FUJI pick and place machine
Brand:FUJI
Model:FUJI NXT M3 M6 pick and place machine
Specification:FUJI NXT M3 M6 pick and place machine
Condition:original
Quality:top qualiy
Stock:large
Payment:L/C T/T D/P Western Union Paypal Money Gram And Others
Shipment:In three days
Warranty: 1 year
Delivery:fedex,ups,dhl,as required
Package:carton box with foam protect
Introduction of Fuji Smt Machine,
Fuji Smt Pick and Place Machine NXT
The NEW NXTM3 SMT machine is a highly productive, multi-functional modular placing machine. Built for speed,
it features a faster XY robot and tape feeders, as well as a new H24 head that achieves 35,000 chips per hour.
The NXT M3 smt pick and place machine supports the smallest parts being used in mass production with
extreme placing accuracy.
SPEED: 37,500cph
Pcb SIZE: 48mm×48mm～250mm×510mm
accuracy: ±0.025mm(standard model)/±0.038mm(produce first model) (3σ) cpk≧1.00
feeder:20pcs(8mm feeder)
components range: : 0201～5mm×5mm height:MAX:2.0mm
power supply: 3P/ 200V/ 10KVA
machine size 740(L) x 1934(W)(2M)
factory year:about 2016
machine heads:24pcs,each head can fix 6 nozzles
| Item | M3 III | M6 III | |||
| Applicable PCB size (LxW) | 48 x 48 mm to 250 x 510 mm (double conveyor)* | 48 x 48 mm to 534 x 510 mm (double conveyor)* | |||
| 48 x 48 mm to 250 x 610 mm (single conveyor) | 48 x 48 mm to 534 x 610 mm (single conveyor) | ||||
| *Double conveyors can handle PCBs up to 280 (W) mm. PCBs larger than 280 (W) mm must be produced by changing the double conveyor to single lane production mode. | *Double conveyors can handle PCBs up to 280 (W) mm. PCBs larger than 280 (W) mm must be produced by changing the double conveyor to single lane production mode. | ||||
| Part types | Up to 20 types of parts (calculated using 8 mm tape) | Up to 45 types of parts (calculated using 8 mm tape) | |||
| PCB loading time | For double conveyor: 0 sec (continuous operation) | ||||
| For single conveyor: 2.5 sec (transport between M3 III modules), 3.4 sec (transport between M6 III modules) | |||||
| Placement accuracy | H24G : +/-0.025 mm (Standard mode) / +/-0.038 mm (Productivity priority mode) (3sigma) cpk≥1.00 | H24G : +/-0.025 mm (Standard mode) / +/-0.038 mm (Productivity priority mode) (3sigma) cpk≥1.00 | |||
| (Fiducial mark standard) | V12/H12HS : +/-0.038 (+/-0.050) mm (3sigma) cpk≥1.00 | V12/H12HS : +/-0.038 (+/-0.050) mm (3sigma) cpk≥1.00 | |||
| * The placing accuracy is obtained from tests conducted by Fuji. | H04S/H04SF : +/-0.040 mm (3sigma) cpk≥1.00 | H08M/H04S/H04SF : +/-0.040 mm (3sigma) cpk≥1.00 | |||
| H08/H04 : +/-0.050 mm (3sigma) cpk≥1.00 | H08/H04/OF : +/-0.050 mm (3sigma) cpk≥1.00 | ||||
| H02/H01/G04 : +/-0.030 mm (3sigma) cpk≥1.00 | H02/H01/G04 : +/-0.030 mm (3sigma) cpk≥1.00 | ||||
| H02F/G04F : +/-0.025 mm (3sigma) cpk≥1.00 | H02F/G04F : +/-0.025 mm (3sigma) cpk≥1.00 | ||||
| GL : +/-0.100 mm (3sigma) cpk≥1.00 | GL : +/-0.100 mm (3sigma) cpk≥1.00 | ||||
| Productivity | H24G : 37,500 cph (Productivity priority mode) / 35,000 cph (Standard mode) | H24G : 37,500 cph (Productivity priority mode) / 35,000 cph (Standard mode) | |||
| * The throughput above is based on tests conducted at Fuji. | V12 : 26,000 cph | V12 : 26,000 cph | |||
| H12HS : 24,500 cph | H12HS : 24,500 cph | ||||
| H08 : 11,500 cph | H08M : 13,000 cph | ||||
| H04 : 6,500 cph | H08 : 11,500 cph | ||||
| H04S : 9,500 cph | H04 : 6,500 cph | ||||
| H04SF : 10,500 cph | H04S : 9,500 cph | ||||
| H02 : 5,500 cph | H04SF : 10,500 cph | ||||
| H02F : 6,700 cph | H02 : 5,500 cph | ||||
| H01 : 4,200 cph | H02F : 6,700 cph | ||||
| G04 : 7,500 cph | H01 : 4,200 cph | ||||
| G04F : 7,500 cph | G04 : 7,500 cph | ||||
| GL : 16,363 dph (0.22 sec/dot) | G04F : 7,500 cph | ||||
| 0F : 3,000 cph | |||||
| GL : 16,363 dph (0.22 sec/dot) | |||||
| Supported parts | H24G: 0201 to 5 x 5 mmHeight: up to 2.0 mmV12/H12HS: 0402 to 7.5 x 7.5 mmHeight: up to 3.0 mmH08M: 0603 to 45 x 45 mmHeight: up to 13.0 mmH08: 0402 to 12 x 12 mmHeight: up to 6.5 mmH04: 1608 to 38 x 38 mmHeight: up to 9.5 mmH04S/H04SF: 1608 to 38 x 38 mmHeight: up to 6.5 mmH02/H02F/H01/0F: 1608 to 74 x 74 mm (32 x 180 mm)Height: up to 25.4 mmG04/G04F:0402 to 15 x 15 mmHeight: up to 6.5 mm | ||||
| Module width | 320 mm | 645 mm | |||
| Machine dimensions | L: 1295 mm (M3 III x 4, M6 III x 2) / 645 mm (M3 III x 2, M6 III) | ||||
| W: 1900.2 mm, H: 1476 mm | |||||
| DynaHead(DX) | |||||
| Nozzle quantity | 12 | 4 | 1 | ||
| Throughput(cph) | 25,000 | 11000 | 4700 | ||
| Parts presence function ON: 25,000 | |||||
| Part size (mm) | 0402 (01005") to 7.5 x 7.5 | 1608 (0603")to 15 x 15 | 1608 (0603")to 74 x 74 (32 x 100) | ||
| Height:Up to 3.0 mm | Height:Up to 6.5 mm | Height:Up to 25.4 mm | |||
| Placing accuracy | +/-0.038 (+/-0.050) mm (3σ) cpk≥1.00* | +/-0.040 mm (3σ) cpk≥1.00 | +/-0.030 mm (3σ) cpk≥1.00 | ||
| (Fiducial mark based referencing) | *+/-0.038 mm obtained with rectangular chip placement (high | ||||
| accuracy tuning) under optimal conditions at Fuji. | |||||
| Part presence check | o | x | o | ||
| Parts supply | Tape | o | o | ||
| Stick | x | o | |||
| Tray | x | o | |||
| Parts supply system | |||||
| lntelligent feeders | Support for 4, 8, 12, 16, 24, 32, 44, 56, 72, 88, and 104 mm wide tape | ||||
| Stick feeders | 4 ≤ Part width ≤ 15 mm (6 ≤ Stick width ≤ 18 mm), 15 ≤ Part width ≤ 32 mm (18 ≤ Stick width ≤ 36 mm) | ||||
| Trays | Applicable tray size: 135.9 x 322.6 mm (JEDEC standard) (Tray Unit-M),276 x 330 mm (Tray Unit- LT), 143 x 330 mm (Tray Unit-LTC) | ||||
| Option | |||||
| Tray feeders, PCU II (Pallet Change Unit), MCU (Module change unit), Engineering panel stand, FUJI CAMX Adapter, Nexim Software | |||||
Related Product
We have full range of SMT pick and place machine For FUJI,JUKI,SAMSUNG,YAMAHA, and so on,feeder,
nozzle,smt pick and place machine,PCB Conveyor,
cylinder,and vibration feeder,anything you need ,just tell me!
The main brand is Fuji YAMAHA Samsung SONY heavy machine
1. SMT lubricating oil
2. SMT parts
3. Nozzle and feeder
4. SMT belt and other parts in the machine
Video
Video
Video
Video
Video
Video
Video
Video
Video
Video
|
|
