| MOQ: | 1pcs |
| Price: | Negotiable |
| Standard Packaging: | 1.Wooden case and vacuum package 2.As your requirements |
| Delivery Period: | 5-8 days |
| Payment Method: | T/T, Western Union, Paypal, Credit card |
| Supply Capacity: | 5000 |
Fuji NXT M3 III Pick and Place Machine
Fuji Scalable Placement Platform NXT 3rd generation is the latest evolution of its scalable
modular mounting platform, the NXT series. The NXT III expands on the concepts of the NXT II
to achieve new levels of productivity and placing quality. A faster XY robot and faster tape feeders, as well as a newly developed “flying vision” parts camera, mean increased placing ability for all part sizes and types. The new H24 high-speed head achieves 35,000 CPH per module, a 35% improvement from the fastest speed of the NXT II. The NXT III can handle the next generation of components heading for the market - 03015 mm parts. And by improving machine rigidity and further refining its independent servo control and vision recognition technology, it has achieved the industry-leading placing accuracy for small chip parts of ±25 μm. The GUI interface combined with a touchscreen panel to improve usability. The NXT III inherits the flexibility of the NXT Series, can be flexibility configured to match the production conditions.
Name: |
FUJI NXT I M3 / NXT I M3S / NXT I M6 / NXT I M6S |
Brand: |
FUJI |
Model: |
FUJI NXT I M3 / NXT I M3S / NXT I M6 / NXT I M6S |
Specification: |
SMT PICK AND PLACE MACHINE |
Condition: |
original |
Quality: |
top qualiy |
Stock: |
large |
Payment: |
T/T before shipment |
Shipment: |
on-time shipment |
Warranty: |
1 year |
Delivery: |
fedex,ups,dhl,as required |
Package: |
wooden case |
Model:NXT-M3S
PCB size:Min.48*48mm;Max.510*534mm(Double track)
Placement speed:H12HS:22,500;H08:10,500;H04:6,500;H01:4,200
Patch range:
H12S:0402~7.5x7.5mm Height:MAX:3.0mm
H08: 0402~12x12mm Height:MAX:6.5mm
H04: 1608~38x38mm Height:MAX:13mm
H01/H02/OF:1608~74x74mm(32X180mm) Height:MAX:25.4mm
G04:0402~15.0mmx15.0mm Height:MAX 6.5mm
Rack support:MAX:20 kinds / modules (8mm tape conversion)
Placement Accuracy:H12S/H08/H04:0.05mm(3sigma) cpk≥1.00
Power Supply:3P 200V 10KVA
Air flow:0.5MPa (5kgf/cm2),10NI/min.
Dimension:2M II base:L740*W1934
4M II base:L1390*W1934
H:1474mm(M3 II) 1476mm(M6 II/M6 IISP)
Weight:1350kg

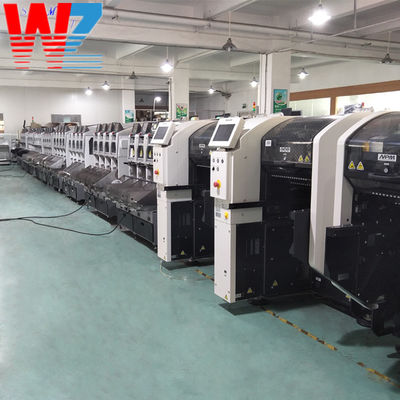

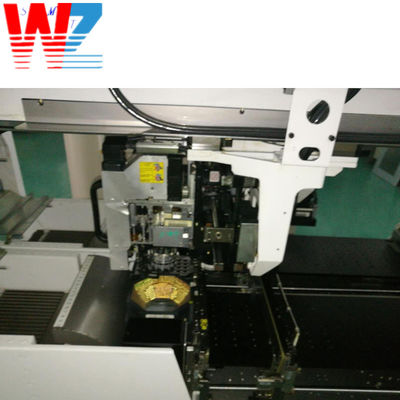

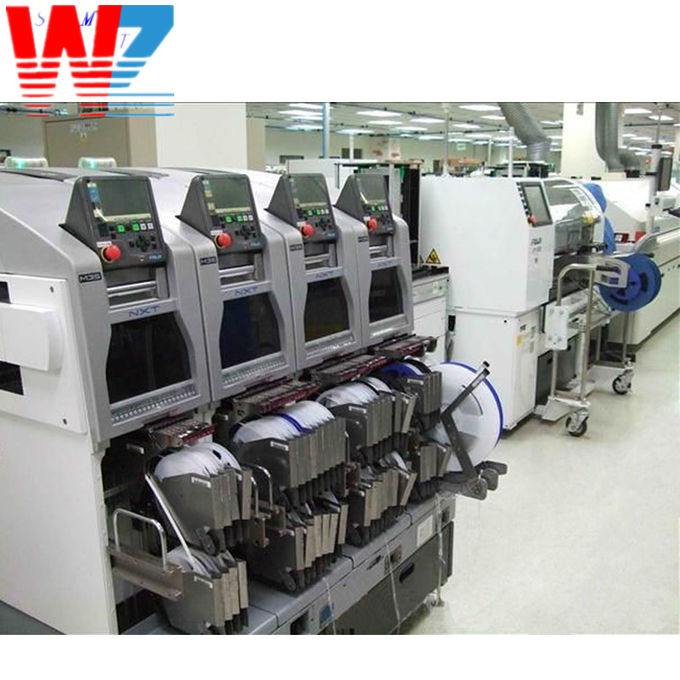

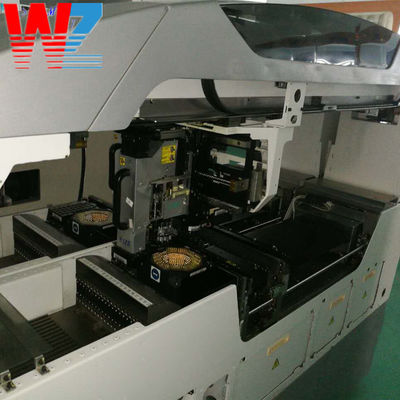

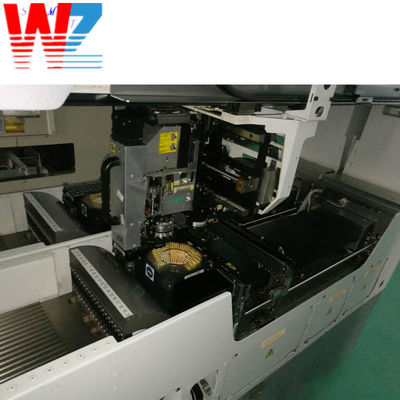

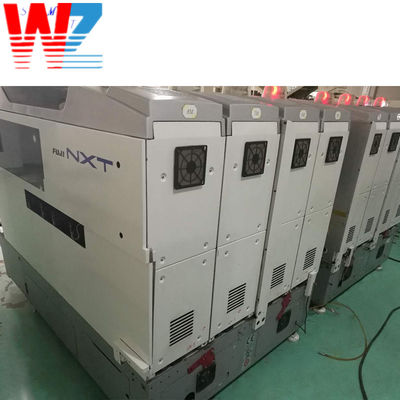

Photo show
Related Product
SMT machines and related products:
1.SMT equipment and accessories,nozzles, feeder, feeder parts, cutter, filter, guide, tape, mortor, belt,
cylinder, smt grease/lubricant, THK grease gun ,bearing,SMD parts counter,sensor etc.
2. Nozzles & feeders&their parts for fuji, for Juki, for Yamaha, for Samsung, for Siemens, for Panasonic,
for Sony....etc,all of them have large stock.
3. We sell and recycle used SMT machine
FAQ
1. If machine have any problem after I receive it, how can I do ?
Free parts send to you in machine warranty period.
2. MOQ ?
1 set machine, mixed order is also welcomed.
3. How can I buy this machine from you? ( Very easy and flexible !)
A. Consult us about this product on line or by e-mail.
B. Negotiate and confirm the final price , shipping , payment methods and other terms.
C. Send you the proforma invoice and confirm your order.
D. Make the payment according to the method put on proforma invoice.
E. We prepare for your order in terms of the proforma invoice after confirming your full payment.
And 100% quality check before shipping.
F.Send your order by air or by sea.
Video
Video
Video
Video
|
|
