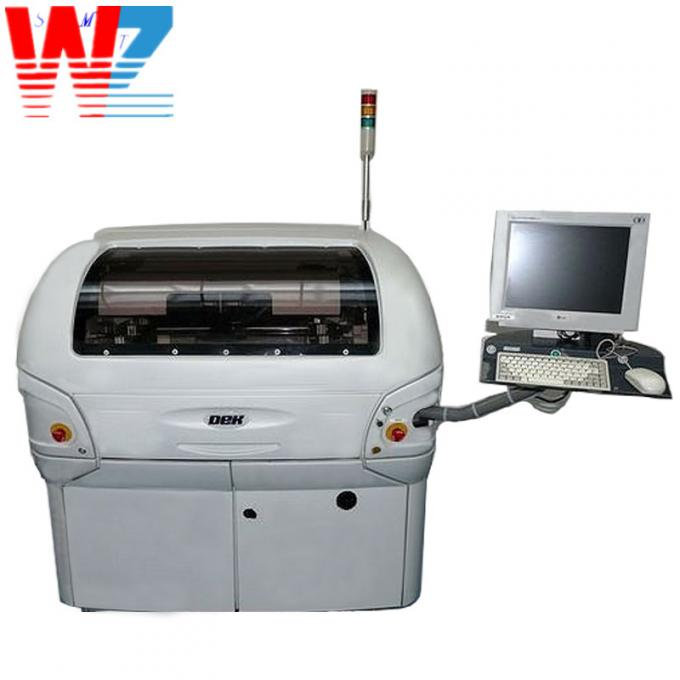

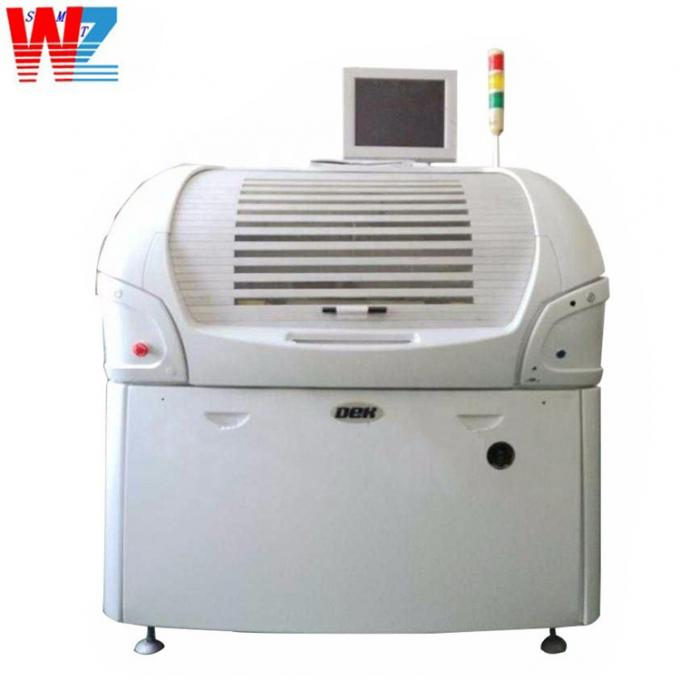

Solder paste printer price DEK 02i printer
Machine parameters:
Accuracy: 1.66Cpk @ 2.5 ± μm
Substrate size: 40x50 ~ 508x510mm
Substrate thickness: 0.2 ~ 6mm
Printing speed: 2mm ~ 150mm / sec
Printing area: X 457mm / Y406mm
Stencil size: 736 × 736 mm
Printing cycle: 12sec ~ 14sec
Board direction: left → right / right → left
Vision System: Cognex
Control: Vision camera system, double scraper assembly, manual drive setting, front and rear track adjustment
Power source: 3P / 220 / 5KVA
Air pressure source: 5L / min
Machine size: 1860 * 1780 * 1500 mm
Weight: 950 kg
Solder paste printer price DEK Horizon 02i performance characteristics:
1. The DEK optimized rack technology common to the Horizon platform has the inherent stability and reliable performance of high-end machines.
2. The motion control mechanism of Horizon 02i can guarantee the speed and accuracy of **, including full process capability index Cpk 2 @ ± 25μm.
3. The Horizon 02i has both the characteristics of rapid setup and rapid conversion, so it is an ideal equipment for prototype and first product manufacturing at full production level.
4. With the Instinctiv user interface of HOZ 02i, you can meet the needs of mass production: clear graphics and human factors design provide maximum ease of use, while rich on-board fault recovery features can improve uptime.
