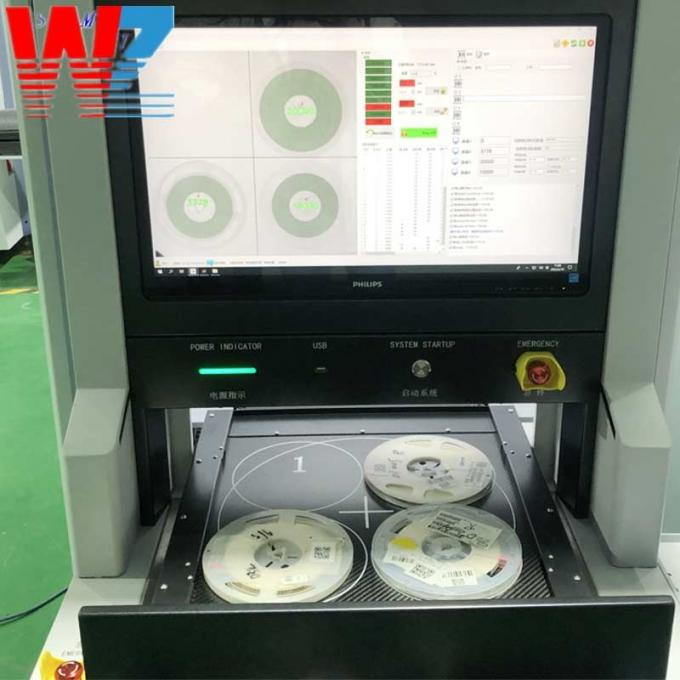

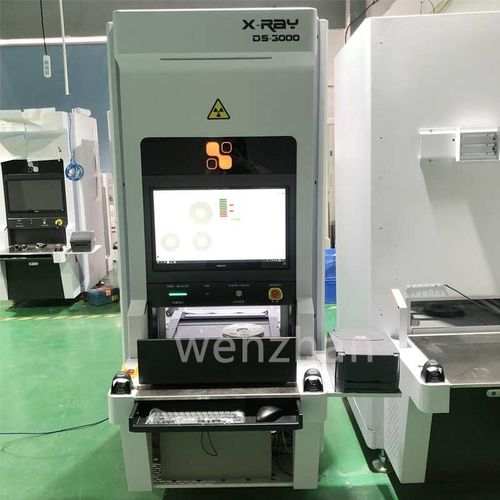

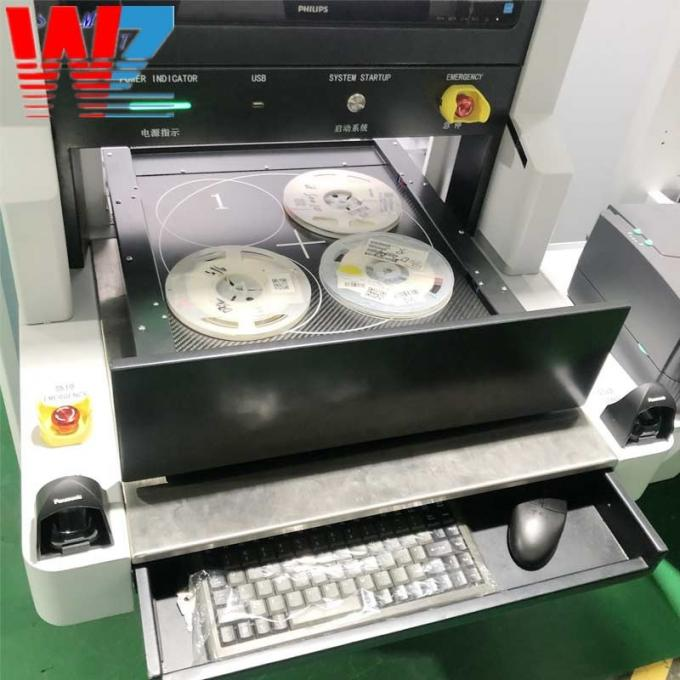

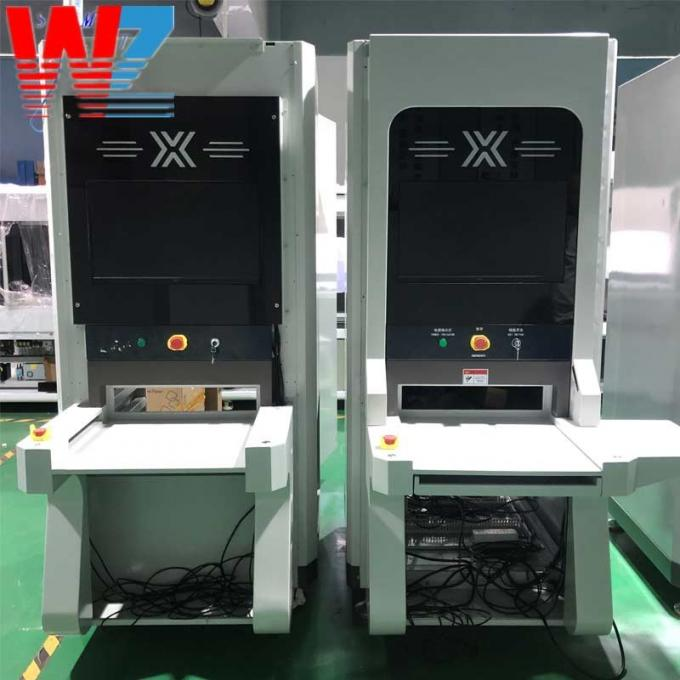

X-RAY intelligent counting machine convenience
Use requirements: After the direct counting of the X-RAY intelligent counting machine is completed, the result data of the counting will be uploaded to the digital control system for updating.
And application occasions:
① WO material return ② single LPN inventory ③ initial inventory/double inventory.
Docking scheme and process:
1.Business type initiated by counting machine
The counting machine adds checked items in the operation interface;
High-line mode/WO material return/count sheet count point/single LPN count
① Offline model
No connection with IMS system, direct counting
② WO Material Return
Only applicable to the operation scenario of WO material return:
LPN must be in "push status"
③ Counting sheet count
Applicable to the "custom count" function of IMS;
LPN must be in the "locked status" of the count sheet
④ Single LPN count
Correction of the number of single LPN in the "library" state
2.The point modem calls the IMS interface and transmits the following information to the IMS:
LPN number, business type code
3.LPN verification:
IMS judges whether the current status of LPN is consistent with the selected service type
Verification passed: IMS returns the OK message,
Point data machine starts counting and enters the next step
Verification failed:
IM5 returns NG information, and the counting machine displays in the pop-up box on the operation interface
IMS error message, stop count
4.The counting machine returns the counting result data: LPN number and counting quantity
IMS updates the remaining number of LPN, returns the result information, and prompts the IMS data update result on the computer interface
