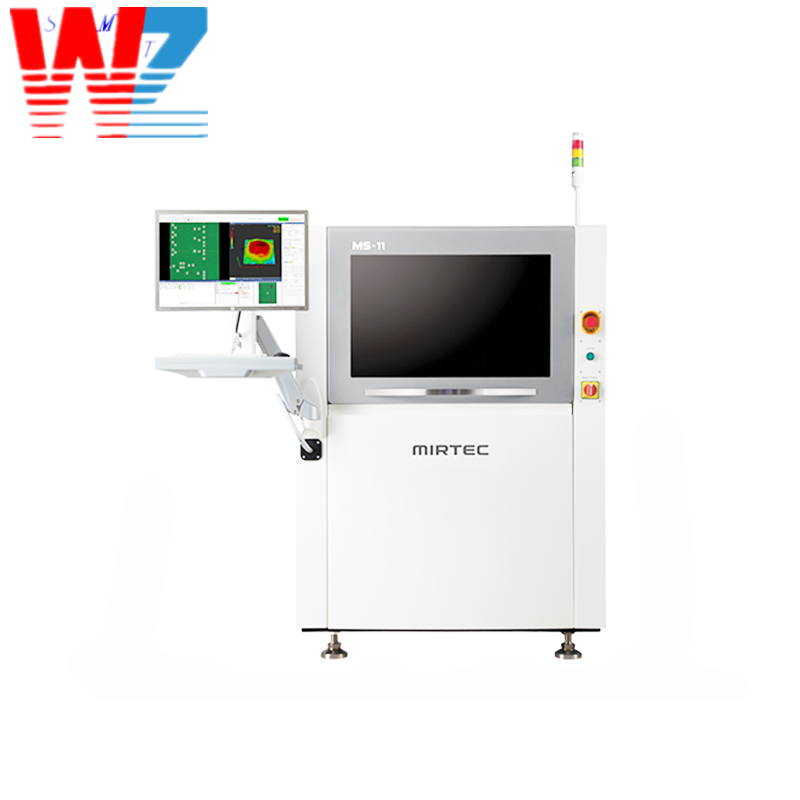

Up to 70% of Surface Mount Technology (SMT) defects start right at the solder paste printer. Detecting these errors after the fact leaves you with a simple pass or fail. This reactive sorting guarantees high rework costs and wasted paste. The real bottleneck on the factory floor is latency. A massive delay exists between finding a defect and an operator manually adjusting the printer. You cannot react fast enough to stop the next bad board from printing. Closed-loop communication fixes this latency gap. Modern inline Solder Paste Inspection systems feed correction data directly back to the printer. This automated feedback loop stabilizes the print process instantly. It cuts down false calls and drives up your first-pass yield. Fixing deviations at the source ensures reliable component placement and solid reflow joints downstream. Automated machine-to-machine data sharing fundamentally changes how a live production line operates.
Closed-Loop Feedback is Standard: Modern inline SPI systems transition quality control from reactive sorting to proactive process control by communicating directly with the solder paste printer.
Standardized M2M Protocols Drive Integration: Data sharing relies on industry-standard protocols like IPC-CFX and The Hermes Standard, replacing fragmented, proprietary communication lines.
Synchronized Data Streams: SPI systems transmit pre-generated, actionable command streams that are perfectly synchronized with the printer's mechanical cycle to ensure corrections apply to the correct board.
Three Primary Correction Vectors: SPI systems primarily share data to trigger automated stencil cleaning, adjust X/Y alignment offsets, and optimize squeegee pressure/speed.
Mitigating Over-Correction is Critical: Successful implementation requires advanced algorithmic filtering to prevent the printer from chasing isolated anomalies (oscillation) based on raw SPI data.
Traditional inspection acts as a gatekeeper. It stops bad boards from hitting the pick-and-place machines. This stops immediate downstream failures but ignores the root cause. The printer keeps running with bad settings until an operator steps in. Closed-loop systems move past basic sorting. They use continuous trend analysis to monitor the print process. The system corrects printer drift before actual defects happen. Eliminating volume and alignment deviations at the source guarantees product reliability. It directly ensures the accuracy of component placement. Reflow soldering relies on perfect paste deposits to form strong intermetallic bonds. A successful closed-loop setup delivers measurable factory floor results. You see fewer manual rework stations and lower labor costs. Solder paste waste drops as fewer boards get wiped clean. Overall equipment effectiveness (OEE) increases as manual line stoppages disappear. For instance, if paste volume drops by 5% over 10 boards, the system flags the trend. It adjusts the printer before the volume drops below the 10% failure threshold.

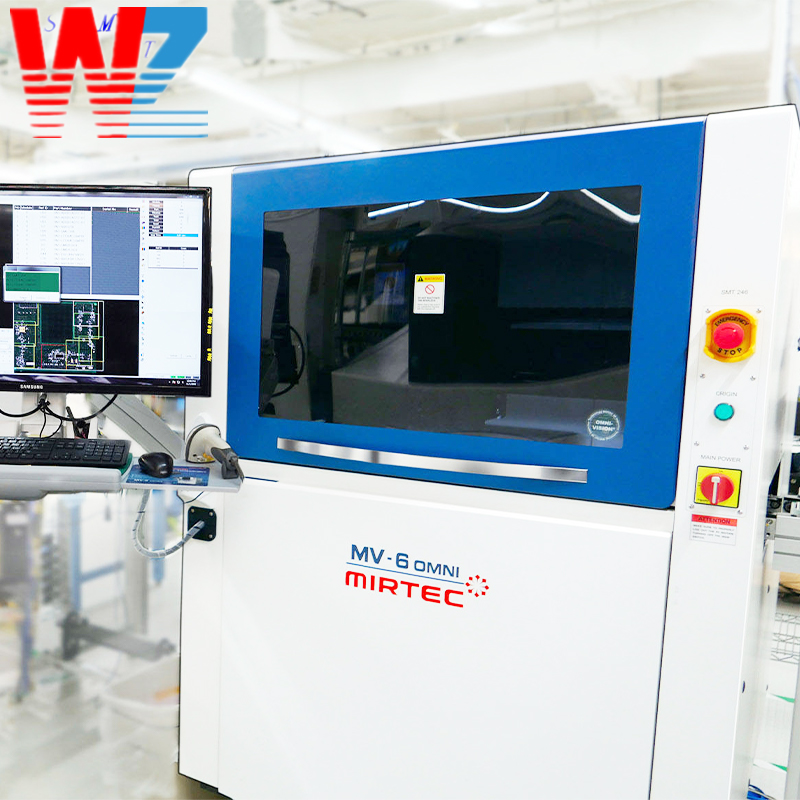

Older 2D inspection technology fails at automated printer correction. It cannot measure paste volume accurately. 2D cameras only see the flat surface area of the solder deposit. They use basic contrast lighting to check if paste covers the pad. Automated printer adjustments need precise volumetric data. Modern optical technology fills this measurement gap. A full 3D solder paste inspection system captures true volume using advanced profilometry. It measures exact height, area, and three-dimensional shape using structured light projection. This gives a precise mathematical baseline for the printing process. The printer needs this exact baseline to calculate mechanical offset adjustments. Without 3D data, automated corrections rely on guesswork. The system uses topographical maps to understand how paste releases from the stencil. This depth of data is mandatory for calculating squeegee pressure changes or micron-level alignment shifts.
Production lines rely on robust Machine-to-Machine (M2M) protocols. The Hermes Standard (IPC-HERMES-9852) plays a major role. It replaces outdated SMEMA connections for board-level traceability. Hermes passes unique board IDs alongside inspection data via standard Ethernet cables. IPC-CFX (Connected Factory Exchange) is another essential protocol. It standardizes telemetry and correction data payloads across the factory floor. This lets equipment from different vendors speak one unified digital language. Modern inspection units do not output raw text logs. They transmit pre-generated, highly actionable command streams formatted in JSON. The printer's software natively parses and executes these commands instantly. No human translation or manual data entry happens here. Proprietary ecosystems also exist in highly optimized factories. Single-vendor lines often feature deep, low-latency integration. For example, a Kohyoung SPI machine might communicate via its proprietary KSMART network. This connects directly to a specific printer brand for seamless, ultra-fast data transfer.
Applying a direct 1:1 correction ratio is highly risky. Adjusting the printer based on a single board's data causes immediate process instability. The inspection machine must aggregate data over a rolling batch. It usually analyzes three to five consecutive boards before acting. This identifies genuine process drift versus random, isolated noise. A single clogged stencil aperture is noise, not a mechanical drift issue. Cycle synchronization is another mechanical requirement for closed-loop success. The inspection system must synchronize data transmission perfectly with the printer. It aligns with the printer's mechanical cycle and the internal board queue. Aggregated offset calculations must apply to the correct upcoming board in the sequence. They cannot apply to a board already undergoing the printing stroke. Timing mismatches ruin the automated correction process and create scrap. Advanced edge computing within the inspection unit handles this complex timing logic.
The inspection camera scans the printed PCB and generates a complete 3D topographical map of all paste deposits.
Edge computing processors analyze the volumetric data against the CAD baseline and predefined tolerance limits.
The software aggregates this data with the previous three to five boards to calculate a moving average and identify directional drift.
If the drift exceeds the statistical control limit, the system generates a JSON-formatted correction payload.
The payload transmits via IPC-CFX over the factory network directly to the printer's control software.
The printer receives the command, verifies the board queue synchronization, and applies the physical stepper motor adjustments before the next print stroke.
The inspection unit constantly monitors the board for microscopic positional shifts. It detects when paste deposits consistently drift off the center of the pads. The system compiles this drift data into a specific digital payload. It sends exact micron-level offset coordinates back to the printer's control software. The printer's internal vision system receives these coordinates instantly via the network. It uses them to realign the stencil to the PCB pads precisely. This eliminates microscopic alignment errors before they multiply into major solder bridging defects. The theta offset correction handles rotational skew that might occur during board clamping. The system calculates the exact angle required to bring the stencil back into perfect parallel alignment. This continuous micro-adjustment process runs silently in the background.
Volume measurements directly dictate the mechanical pressure changes required at the printer. Consistently low volume across the entire board signals a major process problem. It may indicate the need for increased squeegee pressure to force paste through the apertures. Alternatively, it might require decreased squeegee speed to allow better paste roll and aperture filling. The inspection system calculates these optimal mechanical parameters based on fluid dynamics principles. However, automated pressure adjustments have distinct practical limitations. They are much less common than simple X/Y alignment offsets. Adjusting pressure automatically is harder to implement safely without risking stencil damage. It requires highly calibrated squeegee heads and incredibly precise stepper motor control. Many engineers prefer to keep pressure adjustments as a manual confirmation step rather than fully automated.
The inspection system easily identifies localized printing defects across the board surface. Insufficient paste on specific fine-pitch components is a clear warning sign. This usually indicates a clogged stencil aperture in that specific quadrant of the board. The automated feedback loop addresses this issue immediately to prevent further defects. The inspection unit sends a direct command to the printer's internal cleaning mechanism. This initiates a wet, dry, or vacuum wipe cycle depending on the severity of the clog. The cleaning happens automatically before the next board is printed. This automated trigger prevents a massive cascade of defects that would otherwise require heavy rework. It optimizes paper and solvent usage by only cleaning when mathematically necessary.
Solder paste is a non-Newtonian fluid. Its viscosity changes based on the mechanical shear force applied by the squeegee blade. The inspection system monitors the shape and slump of the printed deposits to infer changes in paste rheology. If the paste sits on the stencil too long, it dries out and thickens. This leads to dog-ear formations or incomplete aperture release. The inspection unit detects these specific topographical signatures. It can then signal the printer to execute a knead cycle. A knead cycle involves running the squeegee back and forth without printing a board. This reintroduces shear force into the paste bead, lowering its viscosity back to optimal printing levels. Monitoring paste rheology through deposit shape analysis prevents massive yield drops caused by environmental factors like factory humidity or temperature shifts.
Selecting the right equipment requires matching technical features to actual production outcomes. Engineering teams must look beyond basic specifications to understand how the machine impacts daily operations. The integration capabilities of the equipment define its true value on the factory floor.
Evaluation Dimension | Feature Analyzed | Production Outcome |
|---|---|---|
Interoperability and Vendor Agnosticism | Can the machine communicate with legacy printers? | Middleware or CFX-compliant bridges prevent vendor lock-in and extend equipment life. |
Algorithmic Maturity and False Call Reduction | Sophistication of trend-analysis algorithms. | Advanced AI-driven filtering prevents over-correction, stabilizing the line and reducing operator intervention. |
Data Latency and Processing Speed | Time required to scan, process, and transmit data. | High-speed processing ensures the printer receives data before the next cycle, maintaining high throughput (CPH). |
You must evaluate if the new equipment communicates smoothly with legacy printers. Vendor agnosticism is mandatory for long-term factory planning and budget management. Assess the availability of robust middleware solutions that translate proprietary data into standard formats. Many older factories still rely on SECS/GEM protocols for basic machine control. Modern inspection units must bridge the gap between these legacy systems and modern JSON-based payloads. Look for native CFX-compliant software bridges in the official product specifications. These integration tools prevent expensive vendor lock-in scenarios down the road. They also extend the operational life of existing capital equipment significantly. A truly open ecosystem allows you to upgrade inspection units without replacing the entire printing line. You maintain your return on investment while gaining advanced closed-loop capabilities.
Evaluate the sophistication of the system's internal trend-analysis algorithms carefully. Raw measurement data is completely useless without intelligent filtering mechanisms applied to it. Advanced filtering prevents the printer from over-correcting based on anomalies. It distinguishes perfectly between a random error and a genuine shifting mechanical trend. Mature algorithms use statistical process control (SPC) rules to govern when data is sent. They often apply modified Western Electric rules to the data stream. For example, the system might trigger an offset only if four consecutive boards show a shift of one standard deviation in the same direction. It understands the natural variance of solder paste rheology and accounts for it automatically. This prevents the printer from chasing the mean and creating a self-induced oscillation loop. You need software that acts like a seasoned process engineer, not a reactive switch.
Consider the exact time it takes for a 3D online SPI machine to operate. It must scan the board, process millions of data points, and transmit commands incredibly fast. High-speed processing ensures the printer receives correction data promptly over the network. The data must arrive before the next board enters the printing cycle. This maintains high throughput and protects your components per hour (CPH) metrics. You never want to pause the entire manufacturing line simply for data synchronization. Edge computing processors within the inspection camera head usually handle this heavy computational load.
Poorly configured feedback loops create severe manufacturing risks that destroy yield rates. They cause the printer to constantly adjust back and forth unnecessarily. This dangerous phenomenon is known as process oscillation or chasing the mean. It actually increases defect rates instead of lowering them over a production run. You must establish strict mathematical control limits to mitigate this specific risk. Require a minimum consecutive board threshold before applying any automated offsets. The software should ignore minor deviations that fall within acceptable tolerance bands. Only sustained, directional drift should trigger a physical adjustment at the printer.
Factory network latency completely disrupts the critical M2M handshake between machines. Packet loss causes the entire communication line to stall or drop data entirely. It might also apply correction data to the wrong board due to queue misalignment. Timing mismatches are fatal to automated process control and require immediate intervention. Implement dedicated, hardwired subnets for all critical SMT line communication. Isolate this M2M traffic from general enterprise networks to prevent bandwidth throttling. This guarantees synchronous, uninterrupted data transfer between the inspection unit and the printer. Use industrial-grade switches that prioritize Quality of Service (QoS) for machine telemetry.
An uncalibrated inspection machine is a massive liability on the factory floor. It will feed mathematically flawed correction data directly to the printer. The printer will then adjust itself into a failure state based on bad math. You must mandate rigorous, scheduled calibration routines for all optical equipment. Use certified target boards like precision-etched glass calibration plates. Perform these calibrations for both the printer's vision system and the inspection unit. Ensure both machines share the exact same dimensional reference point for X, Y, and Z coordinates. Without a shared zero-point, offset calculations will always be fundamentally incorrect.
Conduct a comprehensive line audit to determine the current defect origin rate at the solder paste printer.
Perform a software capability assessment of existing SMT equipment to gauge closed-loop readiness and CFX compatibility.
Upgrade factory network infrastructure to support dedicated, hardwired M2M subnets for uninterrupted telemetry transfer.
Establish rigorous baseline calibration schedules using certified glass plates for all optical equipment on the line.
Define strict statistical control limits in the inspection software to prevent process oscillation during automated adjustments.
A: It is an automated process control system used in electronics manufacturing. The inspection machine measures solder paste deposits and identifies volumetric or positional deviations. It then sends mathematical correction data directly back to the printer. This allows the printer to adjust its alignment or mechanical settings automatically. It prevents defects before they happen without requiring manual operator intervention.
A: The machine detects localized areas of insufficient paste volume across the board. It recognizes this specific pattern as indicative of clogged stencil apertures. Instead of adjusting alignment, it sends a specific command to the printer. This triggers an automated wet, dry, or vacuum wipe cycle before the next board prints.
A: It depends heavily on the software ecosystem and the communication protocols used. While proprietary networks like KSMART offer deep integration with specific partners, standard protocols bridge the gap. Using IPC-CFX or specialized middleware allows these machines to communicate with most modern, network-enabled printer brands.
A: SMEMA is a legacy, hardware-based protocol that only provides basic stop/go signals between machines. It cannot transmit complex data. IPC-CFX is a modern, network-based standard. It transmits complex data payloads, including exact micron-level offsets, telemetry, and unique board IDs. IPC-CFX enables true closed-loop automated correction.
A: 2D systems only measure the flat surface area of a deposit. They cannot measure height or true volume. Automated printer adjustments require precise volumetric data to calculate accurate mechanical offsets. 3D inspection provides the exact mathematical baseline needed for the printer to correct itself safely.
A: It uses advanced trend-analysis algorithms and data aggregation techniques. The system does not adjust the printer based on a single bad board. It analyzes a rolling batch of three to five boards. This filters out random noise and only applies corrections when a genuine, consistent process drift is detected.
