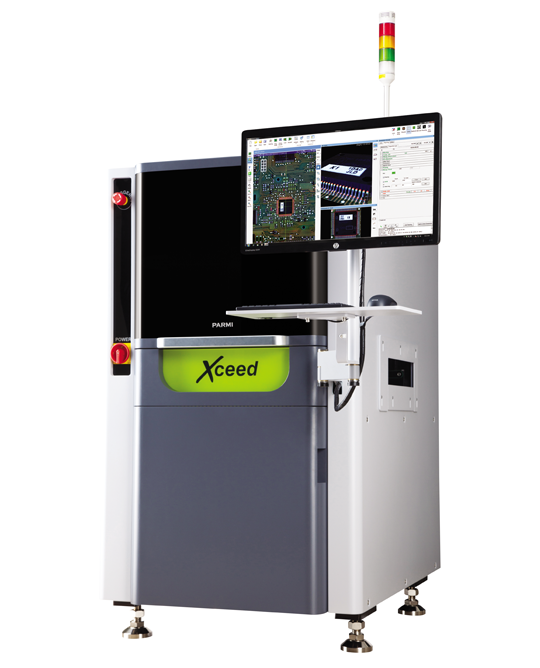

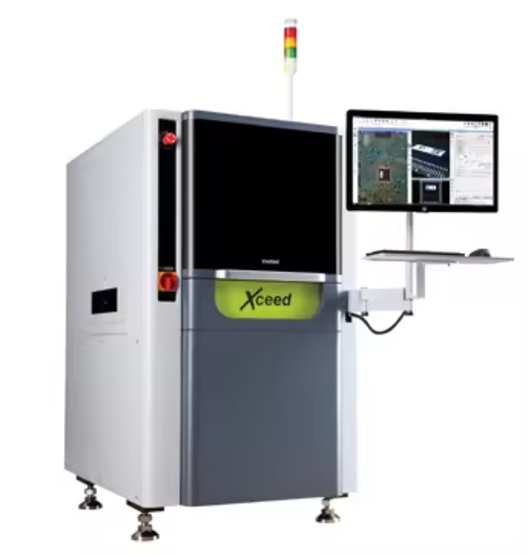

The Xceed 3D AOI system represents a new generation of Automated Optical Inspection technology. This system is designed to provide high-speed, accurate inspections for PCBs, leveraging advanced 3D imaging and intelligent detection capabilities. It is particularly effective in handling various PCB materials and surface conditions, making it a versatile solution for a wide range of inspection needs in the electronics manufacturing industry.

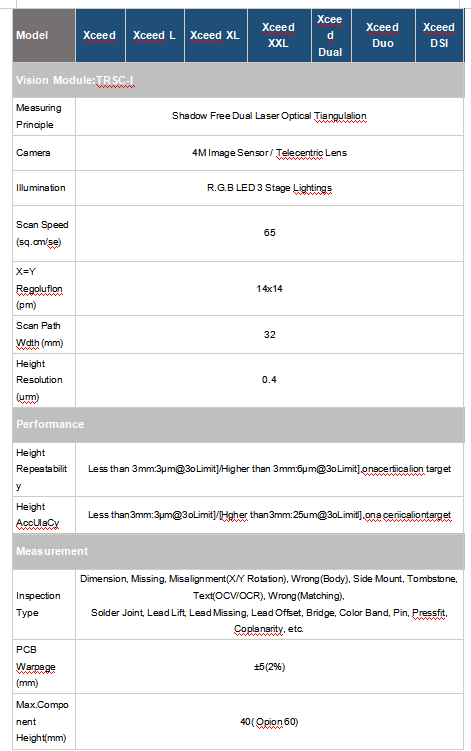

3D AOI Sensor Head (TRSC-I)
• High Speed CMOS Camera (4Mega-pixel) with Dual Laser Technology
• RGB LED Lights
• Telecentric Lens
• Light Weight, Compact Sensor Head Design
• Industry Leading Inspection Speed: 65 cm2/sec @ 14 x 14um
• Cycle Time: For PCB 260mm x 200mm = 10 seconds including load and unload
Intelligent detection: Not affected by PCB material, surface and color
• Dark PCB
• White PCB
• Chemical ceramic PCB
• Reflective parts

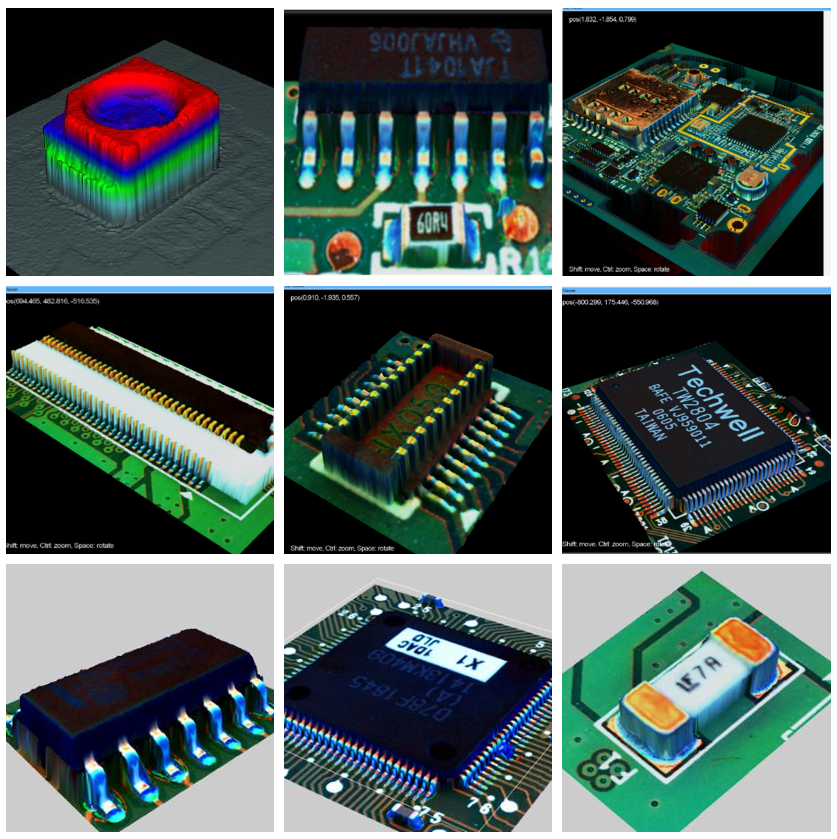

Real 3D image
• Advanced signal processing technology to show true and clear 3D images without any noise
Barcode and Bad Marker Scan Recognition
• In one inspection, both Barcode and Bad Mark are recognized simultaneously. 1D, 2D, QR Laser Marking, and Printing barcodes are recognizable.

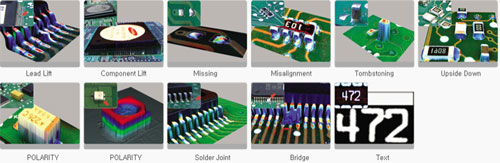

All bad types can be detected
• Dimension, Missing, Misalignment (X/Y/Rotation), Wrong (Body), Side Mount, Tombstone, Text (OCV/OCR), Wrong (Matching), Solder Joint, Lead Offset, Bridge, Color band, Pin, Coplanarity, can be perfectly detected.
Feature:
User-Friendly Interface: Features a specific UI configuration with docking window, making it easy and intuitive to use.
Real-Time Defect Analysis: Equipped with 2D/3D image analyzing tools for immediate defect identification.
Comprehensive Defect Detection: Capable of detecting various defect types including lead lift, solder joint, misalignment, and foreign materials.
Barcode Scan Functionality: Allows for quick defect history searches and practical statistical process analysis.
Mounter Accuracy Monitoring: Provides rapid monitoring capabilities with variable and statistical information.
Web Browser Accessibility: Enables task management through PC and mobile apps, offering one-screen monitoring for all machine statuses.
Barcode and Badmark Recognition: Increases process efficiency by recognizing various barcode formats during inspection.
Comprehensive Component Library Management: Includes features for managing inspection program login information and software versions.
1. who are we?
We are based in Guangdong, China, start from 2009,sell to Domestic Market(20.00%),
Western Europe(12.00%),Eastern Asia(8.00%),Mid East(6.00%),Central America(5.00%),Africa(5.00%),Oceania(4.00%),Southern Europe(4.00%),Eastern Europe(4.00%),South America(3.00%),North America(2.00%),Southeast Asia(2.00%).
There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
SMT Pick And Place Machine, PCB Loader Machine, Reflow Oven, AOI, PCB Conveyor
4. why should you buy from us not from other suppliers?
Our advantage lies in:
1. Top quality:
We have more than 10 years experience in SMT,we have the goods with best quality,just tell me what you need,then will do the best for you
2. Lowest pirce:
In order to make a long-term cooperation,we will offer you the best product quality and after-sales service
5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW,DDP,DDU,Express Delivery；
Accepted Payment Currency:USD,EUR,HKD,CNY;
Accepted Payment Type: T/T,L/C,Credit Card,PayPal,Western Union,Cash;
Language Spoken:English,Chinese
