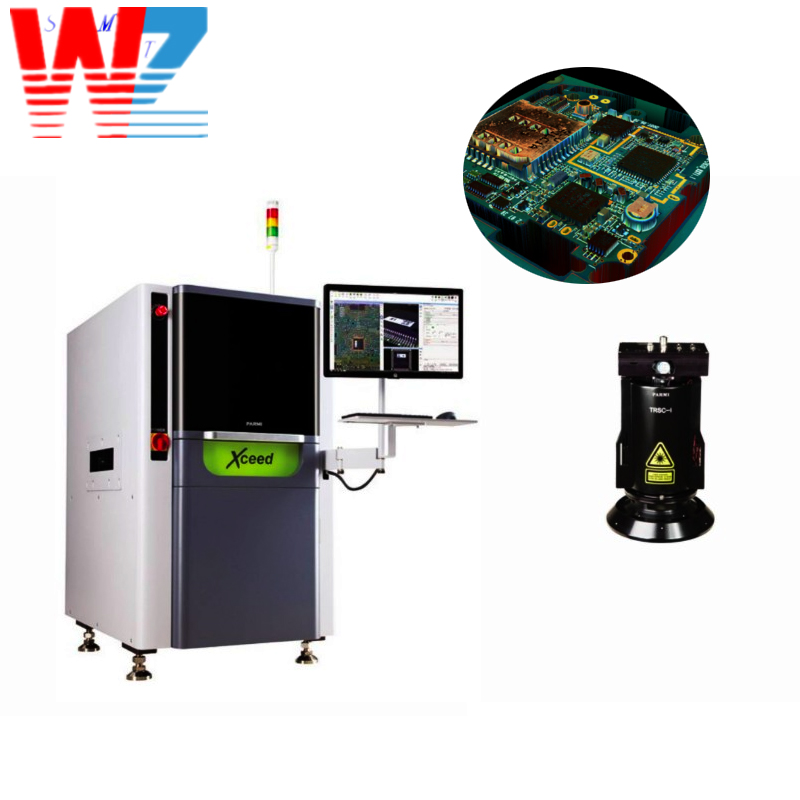

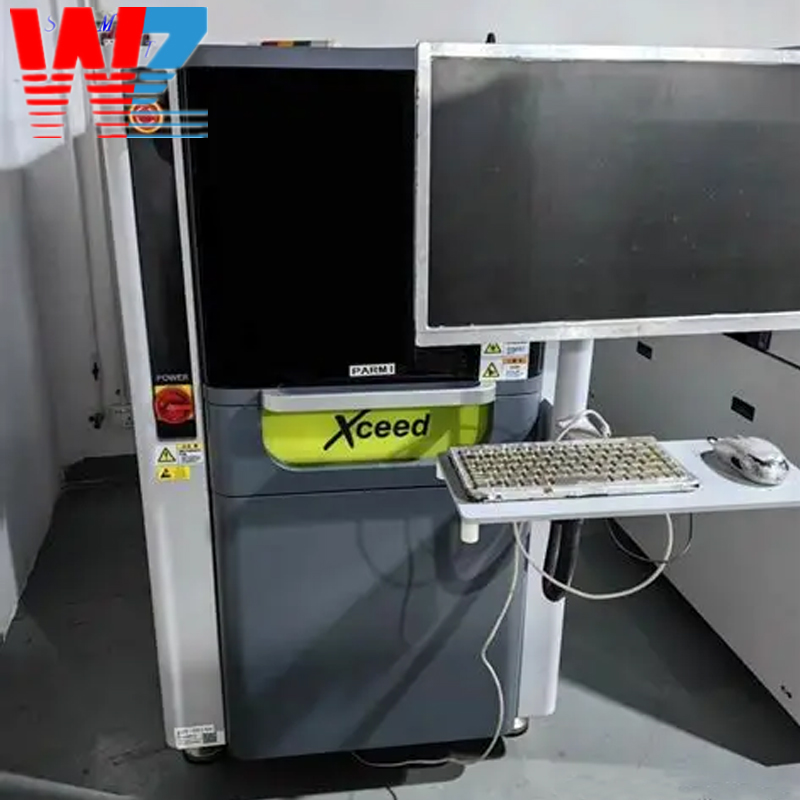

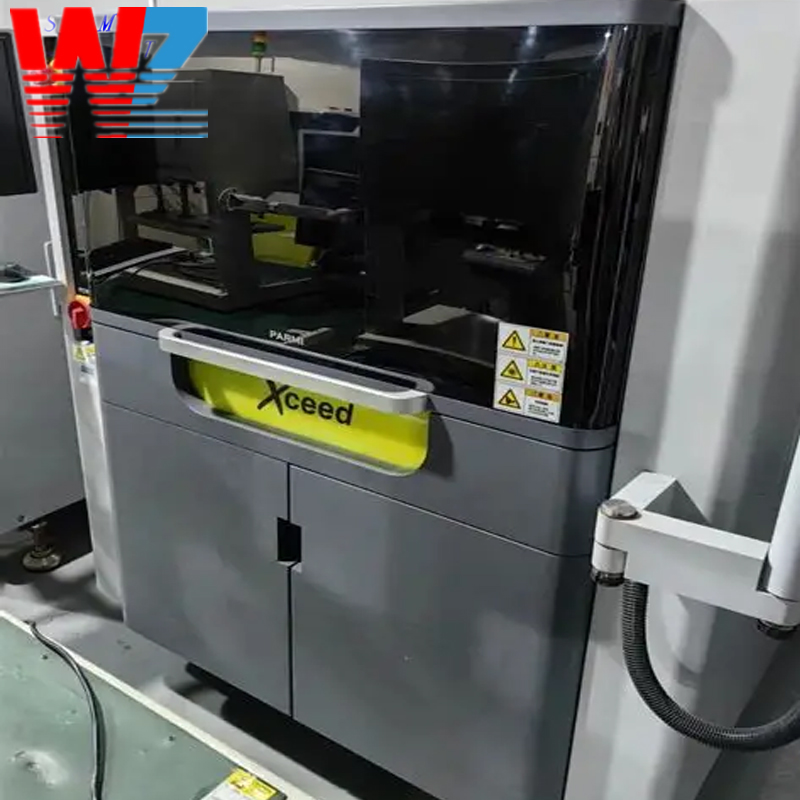

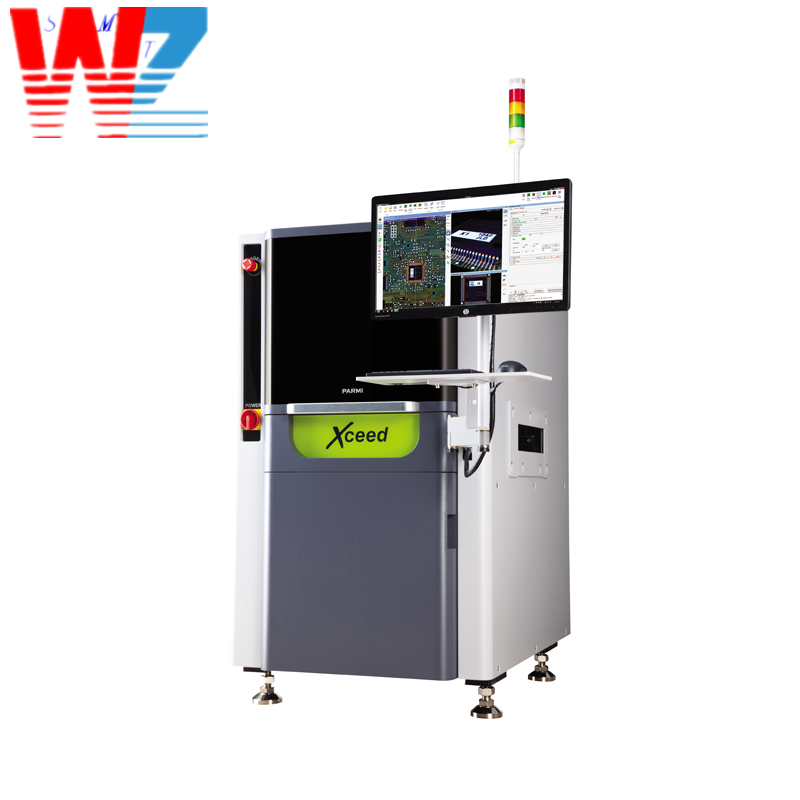

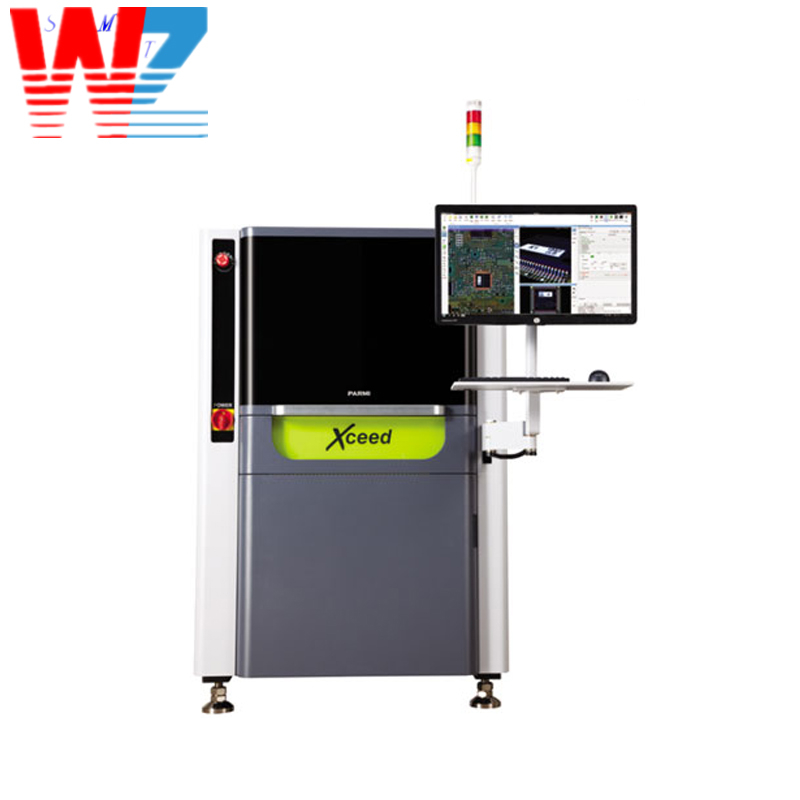

SMT Automated Optical Inspection Systems PARMI Xceed XL AOI Machine 3D AOI for SMT Production Line
3D + 2D inspection in one cycle
Inspection based on laser height measurement
No more comparing photos
* No more unconfirmed mistakes
* No more time-consuming programming
* Easiness to verify problematic errors in 2D
The shortest cycle time
65cm2 / s @ 14um X 14um
Accurate and vibration free measurement.
Hardware & Software
* Easy operate and maintenance
* User Friendly Software
* Convenient programming supported by the component library
* The program from the SPI machine is already 60%
of the program on AOI
Scan the whole PCB in search of unwanted, foreign materials
Zero False Call Rate
* Pose Recognition with Three Dimension Technology
* Simultaneous 2D & 3D Inspection
Beyond 2D AOI
* Easy Detection of Lifted & Bent Leads
* Easy Detection of Lifted Components
High Credibility of Real Defect Detection
* Strong Polarity Mark Detection by 3D Shape Inspection
* 100% Detection of Misalignment, Lift, and etc

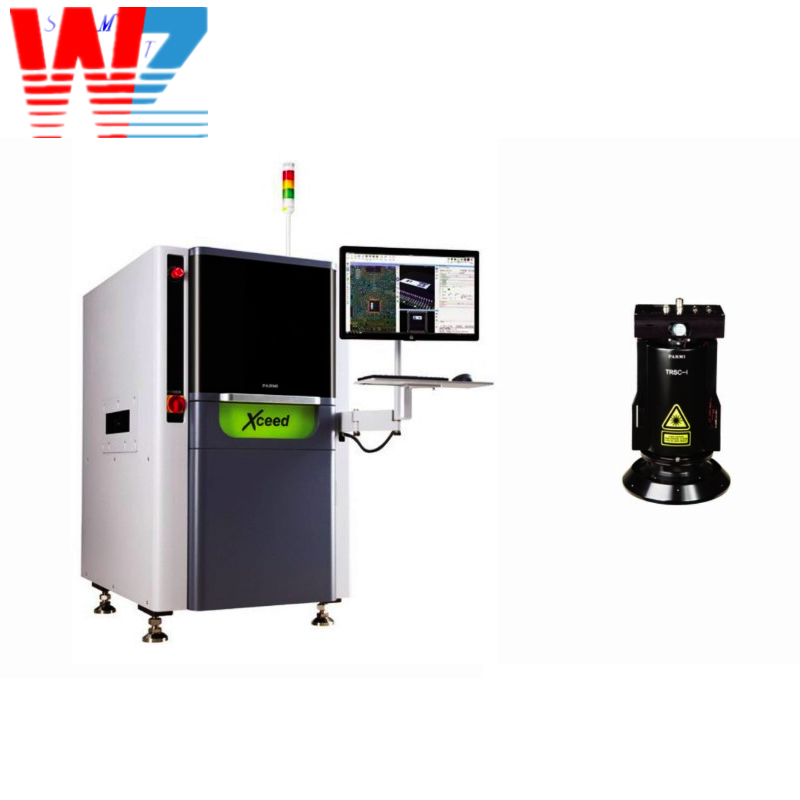

AOI Sensor Head (TRSC-I) | The Innovative 3D Sensor
* High-Speed CMOS Camera (4 mega pixel) with Dual Laser Technology
* RGB LED Lighting
* Telecentric Lens
* Compact & Robust Design
* Textured 3D Image at a Single Scan
* 15,000+ Frames per Second
* Industry’s Fastest Inspection Speed (65 sq. cm/sec @ 14 x 14 um)
* Cycle Time: 10seconds for 260mm(L) X 200mm(W) PCB (Loading & Unloading Included)
