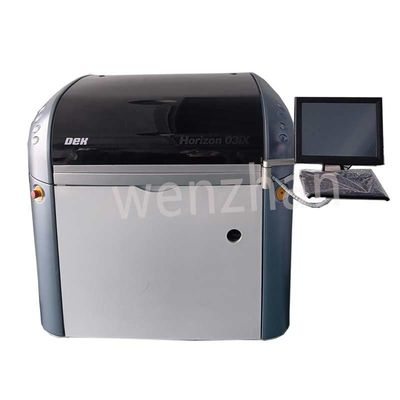

SMT Stencil Printer DEK Horizon 01/02I/03IX Series PCB Solder Paste Printer

SMT Stencil Printer DEK Horizon 01/02I/03IX Series PCB Solder Paste Printer

MOQ: 1pcs
Price: Negotiable
Standard Packaging: 1.Wooden case and vacuum package 2.As your requirements
Delivery Period: 3 DAY
Payment Method: T/T, Western Union, Paypal, Credit card
Supply Capacity: 100
Detail Information
Place of Origin
China
Brand Name
DEK
Model Number
Horizon 03iX
Product Name:
DEK Horizon 01/02I/03IX
Model:
Horizon 01/02I/03IX
Quality:
Top
Package:
Case
Condition:
New, New/used
Payment:
Payment
Type:
SMT Machine Related Products
Brand:
DEK
Delivery:
Ups,dhl,fedex,as Your Order
Warranty:
1 Year
Highlight:

dek pcb solder paste printer

,

smt pcb solder paste printer

,

dek pcb stencil printer

Product Description
SMT Stencil Printer DEK Horizon 01/02I/03IX series PCB Solder Paste Printer
The DEK Horizon 03iX is a highly advanced screen printing machine that offers exceptional performance and reliability. This innovative product is designed to meet the demanding requirements of the electronics manufacturing industry.



Key Features:

1. Vision System: The Horizon 03iX comes equipped with a high-resolution vision system that ensures accurate alignment and precise printing. The advanced cameras detect fiducial marks on the PCB, allowing for precise registration and reducing errors.

2. Automatic Stencil Inspection: This feature enables the machine to inspect the stencil for any defects or damages. It ensures that the stencil is in perfect condition before printing, resulting in high-quality prints.

3. Auto Paste Dispenser: The Horizon 03iX has an integrated paste dispenser that accurately dispenses solder paste onto the PCB. This ensures the right amount of paste is applied, minimizing waste and improving efficiency.

4. Squeegee Pressure Control: The machine is equipped with a squeegee pressure control system that ensures consistent pressure throughout the printing process. This helps achieve uniform and precise printing results.

5. Fast Set-up and Changeover: The Horizon 03iX features a user-friendly interface that allows for quick set-up and changeover between different jobs. This minimizes downtime and maximizes productivity.



How to Use:

1. Preparation: Ensure that the machine is properly set up and calibrated. Check that the stencil and squeegee are clean and in good condition. Load the solder paste into the dispenser and place the PCB onto the conveyor.

2. Job Selection: Using the machine's interface, select the appropriate job from the pre-programmed options or create a new job by defining the 3. printing parameters, such as print speed, pressure, and stencil alignment.

Alignment: The vision system will automatically detect fiducial marks on the PCB and align the stencil accordingly. Fine-tune the alignment if necessary.

3. Print Setup: Set the desired printing parameters such as squeegee pressure, speed, and separation distance. Adjust the paste dispenser settings for accurate paste deposition.

3. Printing: Start the printing process and monitor the machine for any errors. The Horizon 03iX will automatically print the solder paste onto the PCB with high precision.

4. Inspection: After printing, use the built-in stencil inspection system to ensure that the stencil is clean and undamaged. Carry out an inspection of the printed solder paste for any defects.

5. Changeover: If switching to a different job, clean the stencil, squeegee, and dispenser. Load the new PCB and select the appropriate job from the interface. Repeat the above steps for a smooth changeover.



The DEK Horizon 03iX offers advanced features and ease of use, making it a reliable and efficient solution for screen printing in electronics manufacturing. Its precise alignment, automatic inspection, and fast setup capabilities ensure high-quality prints and improved productivity.



Machine Alignment Capability >2 Cpk @ +/- 12.5µm, 6 Sigma #
Process Alignment Capability >2 Cpk @ +/- 25µm, 6 Sigma #
Core Cycle Time 12 secs (11 secs with HTC option)
Maximum Print Area 510mm* (X) x 508.5mm (Y)
Printer Construction One piece optimised welded frame
ISCANTM Machine Control Motion control using CAN BUS network
Operating System Windows XP
Operator Interface ColourTFT touch screen display, keyboard and trackball with DEK InstinctivTM

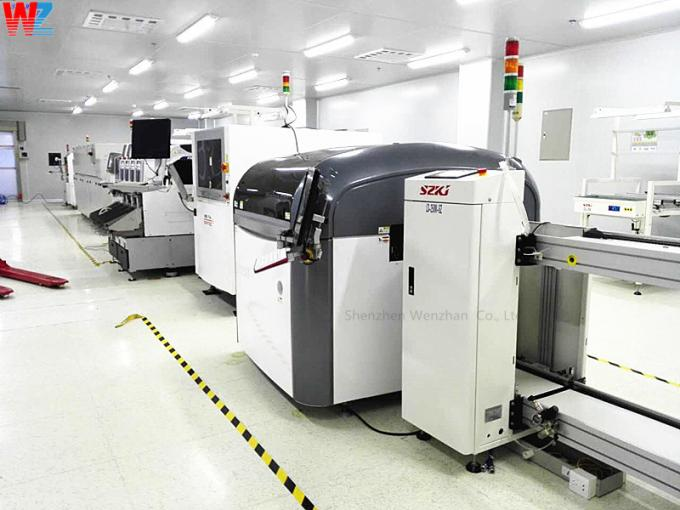

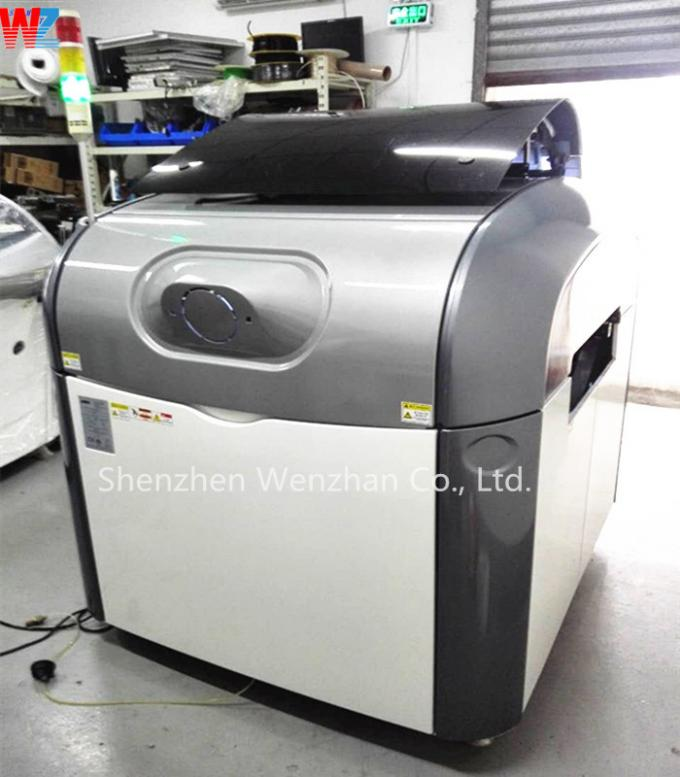

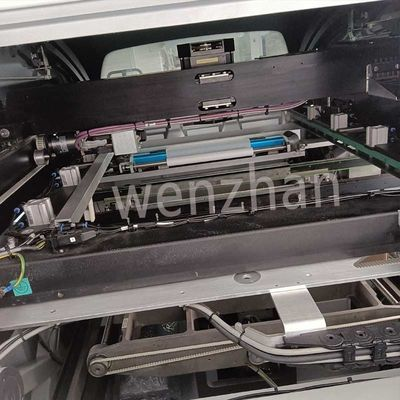

SMT Stencil Printer DEK Horizon 01/02I/03IX Series PCB Solder Paste Printer 0SMT Stencil Printer DEK Horizon 01/02I/03IX Series PCB Solder Paste Printer 1

Transport System Specification
Type: Single piece with 3mm round transport belts, front rail fixed
ESD Compatibility :Black transport belts and guides with surface resistivity of greater than 106 ohms.
Width Adjustment: Programmable motorized rear rail
Transport Direction: Left to right
Right to left: Left to left,Right to right
Substrate Handling Size (minimum) :50mm (X) x 40.5mm (Y)
Substrate Handling Size (maximum) :510mm (X) x 508.5mm (Y)
Substrate Thickness :0.2mm to 6mm
Substrate Weight (maximum) :1kg
Substrate Warpage :Up to 7mm including substrate thickness
Substrate Fixture :Patented over the top clamps
Substrate Handling Features: Soft rail lift / land,Board clamp regulator
Substrate Underside Clearance Programmable 3mm to 42mm

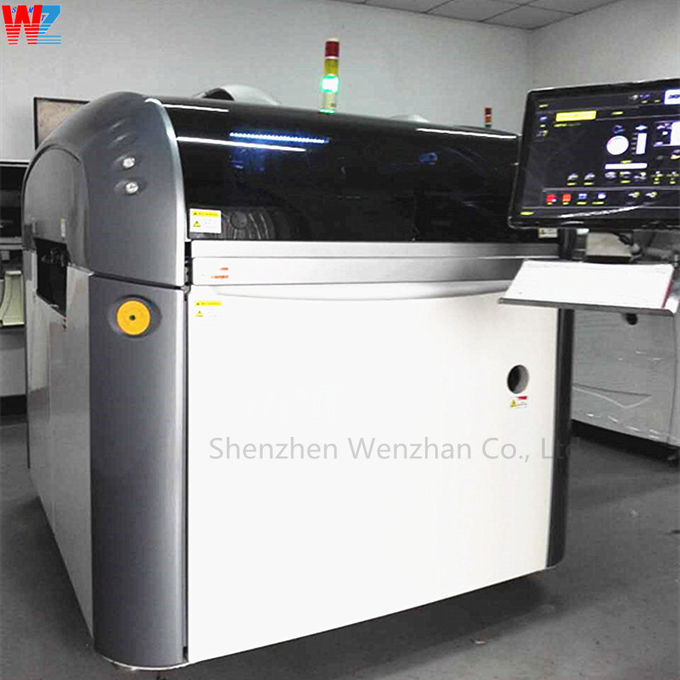

SMT Stencil Printer DEK Horizon 01/02I/03IX Series PCB Solder Paste Printer 2

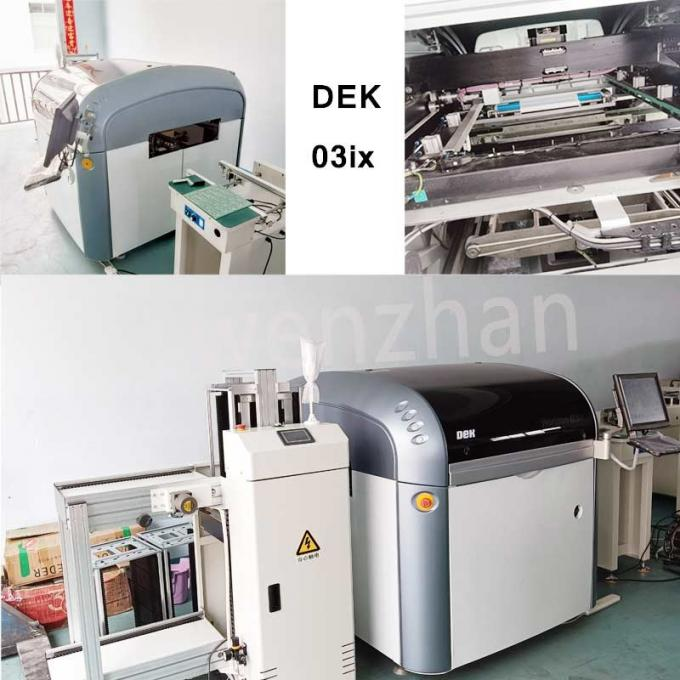

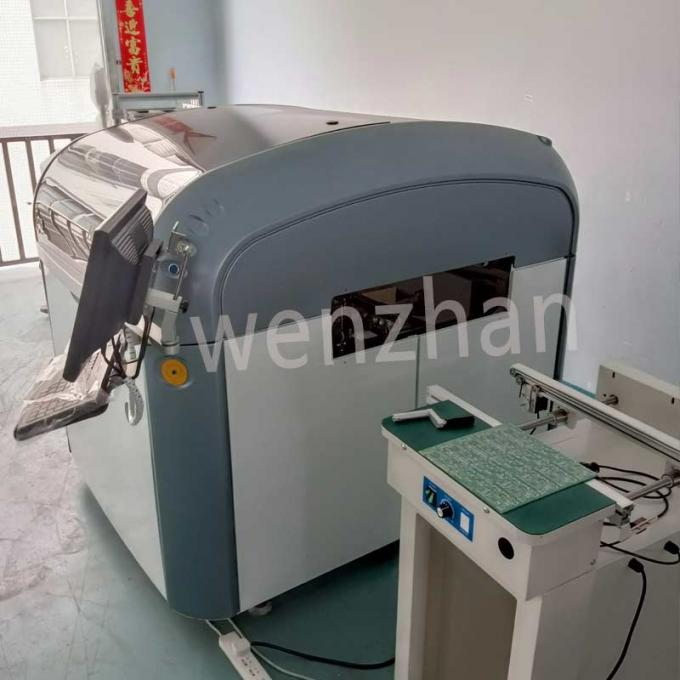

SMT Stencil Printer DEK Horizon 01/02I/03IX Series PCB Solder Paste Printer 3SMT Stencil Printer DEK Horizon 01/02I/03IX Series PCB Solder Paste Printer 4
