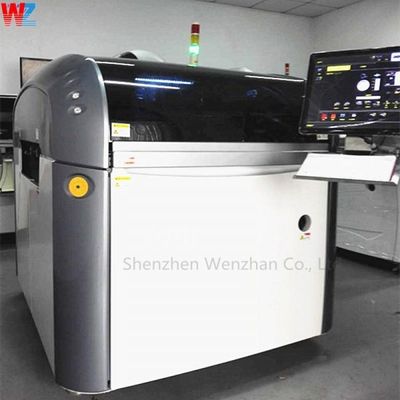

Used SMT PCB Screen Printer DEK Horizon 03iX

Used SMT PCB Screen Printer DEK Horizon 03iX

MOQ: 1pcs
Price: Negotiable
Standard Packaging: 1.Wooden case and vacuum package 2.As your requirements
Delivery Period: 5-8 days
Payment Method: T/T, Western Union, Paypal, Credit card
Supply Capacity: 100
Detail Information
Place of Origin
China
Brand Name
DEK
Model Number
Horizon 03iX
Product Name:
DEK Horizon 03iX
Model:
Horizon 03iX
Quality:
Top
Package:
Case
Condition:
New, New/used
Payment:
Payment
Type:
SMT Machine Related Products
Brand:
DEK
Delivery:
Ups,dhl,fedex,as Your Order
Warranty:
1 Year
Product Description
Used SMT PCB Screen Printer DEK Horizon 03iX

Standard Configuration Specification
software. Machine mountable on either left or right hand side.
Camera : HawkEye® 750 digital camera, using IEEE 1394 interface. Multi channel. LED lighting. FOV 11.3mm x 8.7mm. Inspection window 26mm2
Camera Positioning : Rotary motors and encoders with 4 micron resolution
Squeegee Pressure MechanismL: Software controlled, motorised
Stencil Positioning: Manual width screen depth adjuster
Stencil Alignment :Motorised via actuators X, Y, and Theta
Squeegee: Clamped double trailing edge squeegee (1 set included)
Machine Interface: Upline and downline FMI included
Connectivity: RJ-45LAN (networking) and USB2 interface available
Tri Colour Beacon: Programmable with audible alarm
Documentation: Hard copy manuals comprising: Operator, Installation, Electrical Drawings. On
board technical manuals and tutorials supporting operator functions. DVD
containing manuals and tutorials.
Machine Alignment Capability >2 Cpk @ +/- 12.5µm, 6 Sigma #
Process Alignment Capability >2 Cpk @ +/- 25µm, 6 Sigma #
Core Cycle Time 12 secs (11 secs with HTC option)
Maximum Print Area 510mm* (X) x 508.5mm (Y)
Printer Construction One piece optimised welded frame
ISCANTM Machine Control Motion control using CAN BUS network
Operating System Windows XP
Operator Interface ColourTFT touch screen display, keyboard and trackball with DEK InstinctivTM




Used SMT PCB Screen Printer DEK Horizon 03iX 0Used SMT PCB Screen Printer DEK Horizon 03iX 1

Transport System Specification
Type: Single piece with 3mm round transport belts, front rail fixed
ESD Compatibility :Black transport belts and guides with surface resistivity of greater than 106 ohms.
Width Adjustment: Programmable motorized rear rail
Transport Direction: Left to right
Right to left: Left to left,Right to right
Substrate Handling Size (minimum) :50mm (X) x 40.5mm (Y)
Substrate Handling Size (maximum) :510mm (X) x 508.5mm (Y)
Substrate Thickness :0.2mm to 6mm
Substrate Weight (maximum) :1kg
Substrate Warpage :Up to 7mm including substrate thickness
Substrate Fixture :Patented over the top clamps
Substrate Handling Features: Soft rail lift / land,Board clamp regulator
Substrate Underside Clearance Programmable 3mm to 42mm

Used SMT PCB Screen Printer DEK Horizon 03iX 2
