| MOQ: | 1pcs |
| Price: | Negotiable |
| Standard Packaging: | 1.wooden case 2.As your order |
| Delivery Period: | 5-8 days |
| Payment Method: | T/T, Western Union, Paypal, Credit card |
| Supply Capacity: | 10 Piece/Pieces per Week |

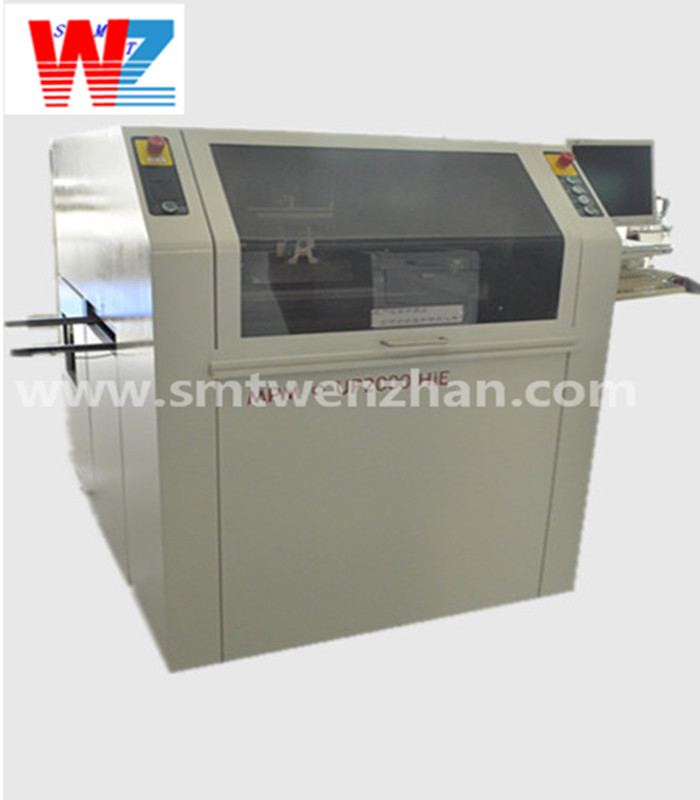

Professional SMT full automatic PCB Screen Stencil Printing Machine with MPM UP2000 HIE
Screen Printer
Name: SMT PCB Printer Machine
Model: Automatic PCB Printer MPM UP2000
Specification: Automatic PCB Printer MPM UP2000
Condition: original/copy
Quality: top qualiy
Stock: large
Payment: L/C T/T D/P Western Union Paypal Money Gram And Others
Shipment: In three days
Warranty: 1 year
Delivery: fedex,ups,dhl,as required
Package: carton box with foam protect
PCB SIZE: 50mmx 50mm~508mm x 406mm
PCB THICKNESS: 0.015’’~0.500’’1524mm/sec
Bottom parts gap: 0.5’’(1.0’’
TRANSFER SPEED: MAX()
PCB fix ways: vacuum chuck + Y-support base + Z-Grip finger)
Rail fixed: front/rear fixed
Print area: 457mmx 406mm(x,y)
Print speed: 6.35mm~305mm/sec
Version datum points: 2~5pcs datum points
Print cycle time:〈11sec
power: 115VAC 60Hz,30AVAC 50Hz 20A
machine size: 1606.3x1168.4x1636.7mm
weight: 800kg
The UP 2000 HiE is built for the most demanding production requirements, offering superior performance and flexibility in a
compact, sturdy cost-effective printer. This machine combines a remarkably compact footprint with large board capability,
resulting in exceptional productivity per square foot. In addition, the printer is user-friendly and has unlimited flexibility
with advanced options, such as closed-loop squeege pressure control, an automatic support pin placement system and
full environmental control.
Print Area 18" x 16" (457 x 406mm)
User-friendly software maximizes uptime
Alignment Accuracy: +/- 0.001" at 6 sigma, and cycle time of less than 11 seconds
Advanced vision algorithms quickly process fiducials "On-the-Move" for efficient image capture
Self leveling print head allows squeegee pressure, print speed and down stop to be independently adjusted for both front
and rear squeegee blades for optimal print quality
Product Detail
Automatic printed circuit board screen printing machine for SMT process
1.PC control ,touch screen dispaly and menu operation interface
2.Floating scraper.similar to automatic printer, the scraper can be floated freely up and down and can be adjusted automatically
to level with the steel grid.
3.The pressure of the scraper is adjustable .The pressure of the scraper on the steel grid is adjustable according to the length
of the scraper.
4.The process of the stell gird removing from the PCB can be adjustable from 0 to 5seconds
5.Use both of your hands to press the button to operate so that the safety and reliability are ensured.
6.The stopping timeof the scraper at top left or bottom left, and top right of bottom right,as well as the overall stopping
time of the steel
gird at top or bottom can be independently set in the touch screen menu.
7.The PCB can be localized and fastened by base hole , base side ,both base hole and base side ,and template
localization.
8.Time can be displayed on the touch screen and the count of the printing time can be recorded .
9.The scraper speed at left and right is adjustable and can be stopped in emergency.
