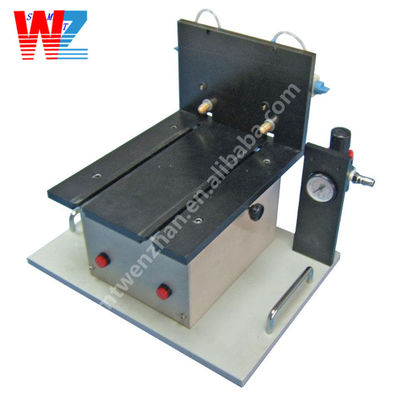

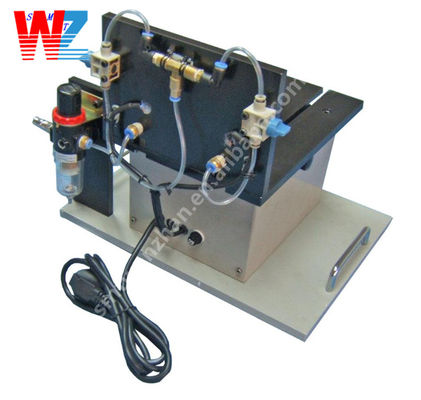

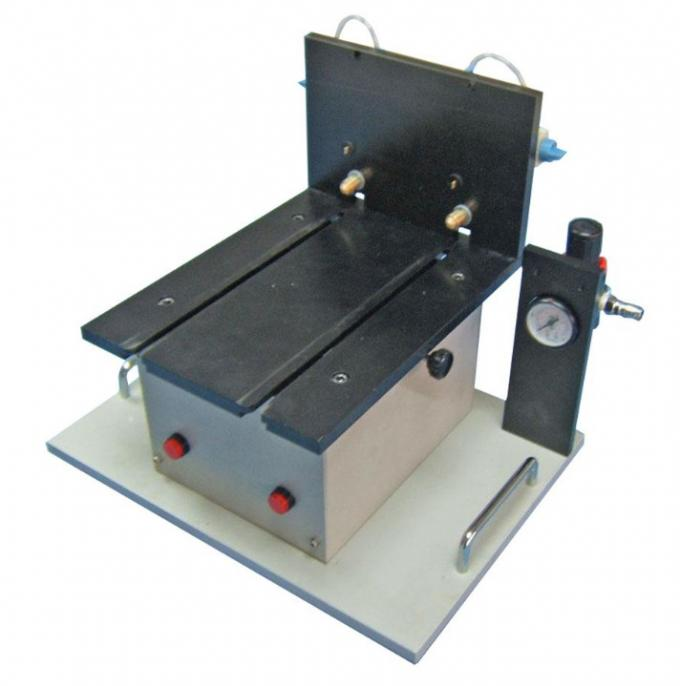

PANASERT BM FEEDER LOADING JIG,PANASERT BM FEEDER SETTING JIG,Offline feeder preparation unit

Introduction to the BM Feeder Loading Jig

The BM Feeder Loading Jig is a professional auxiliary device designed for BM-type SMT feeders. It provides a stable and accurate platform for off-line feeder loading, tape adjustment, calibration, and functional testing. By preparing feeders outside the production line, this loading jig helps reduce machine downtime, improve production efficiency, and ensure consistent feeder performance before installation on pick-and-place machines.

Key Advantages

• Offline Feeder Preparation: Enables loading and adjustment without stopping SMT production lines.

• High Stability & Precision: Rigid mechanical structure ensures accurate feeder positioning during operation.

• Improved Line Efficiency: Shortens feeder changeover time and enhances overall production output.

• Durable Industrial Design: Manufactured using high-strength materials for long-term factory use.

• Easy Operation: Simple and ergonomic design allows operators to load and inspect feeders quickly and safely.

Application Range

The BM Feeder Loading Jig is widely used in:

• SMT production lines using BM-type feeders

• Feeder maintenance and preparation areas

• EMS and OEM electronics manufacturing plants

• SMT service centers and equipment support departments

It is an essential tool for improving feeder management efficiency and maintaining stable SMT operations.

Compatible Machine Models

This loading jig is compatible with BM feeders used on various SMT placement machines, including:

• BM series pick-and-place machines

• SMT systems supporting BM feeder platforms

• Customized SMT automation equipment using BM feeders

Compatibility may vary depending on machine configuration.

Our Company Advantages

We supply high-quality BM Feeder Loading Jigs with:

• Factory Direct Manufacturing: In-house production ensures stable quality and competitive pricing.

• Sufficient Inventory: Large stock available for fast delivery and continuous supply.

• Strict Quality Control: Each jig undergoes inspection for precision, durability, and stability.

• Reliable After-Sales Support: Professional technical assistance, usage guidance, and long-term warranty.

With reliable products, strong supply capability, and comprehensive service, we are your trusted partner for SMT feeder accessories and solutions.
