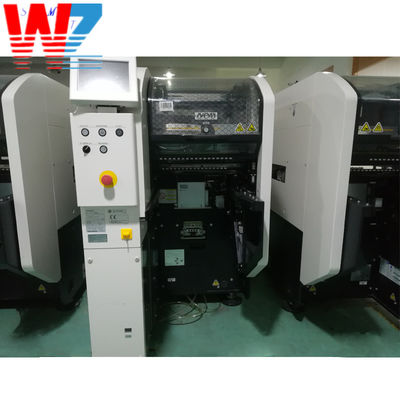

NPM-W NPM-W2 NPM-D3 Pick and Place Machine
Features & Benefits
1. Compact footprint - scale production to your factory needs
2. Quick-change feeder carts, nozzle banks, and process heads
3. Compatible with CM- & AM-series intelligent feeders & nozzles
4. Board warp detection, Adaptive Process Control (APC), and Auto Board Support Pin
5. Industry's first 3D Multi Recognition Camera
6. Lightweight 16-nozzle head (for 84,000 CPH)
7. Increased placement accuracy to 25um (cpk ≥1.0)
The evolutionary NPM-D3 continues in the steps of its award-winning predecessor with interchangeable dispensing, placement, and inspection heads; however, new enhancements further increase productivity. The NPM-D3 now handles a component range spanning 03015mm microchips to massive 100x90mm components up to 28mm tall, as well as Package on Package applications.
A new base frame, redesigned placement head, and Multi Recognition Camera improve placement accuracy by 25%, while boosting IPC-9850 throughput 30% to an industry-leading 38,078 CPH per square meter. The new Multi Recognition Camera provides component alignment, defect inspection, chip thickness, and 3D coplanarity inspection in a single pass, which helps ensure high productivity and quality control.
| Model ID | NPM-D3 | ||||||
|
Rear head Front head |
Lightweight 16-nozzle head |
12-nozzle head | 8-nozzle head | 2-nozzle head | Dispensing head | No head | |
| Lightweight 16-nozzle head | NM-EJM6D | NM-EJM6D-MD | NM-EJM6D | ||||
| 12-nozzle head | |||||||
| 8-nozzle head | |||||||
| 2-nozzle head | |||||||
| Dispensing head | NM-EJM6D-MD | - | NM-EJM6D-D | ||||
| Inspection head | NM-EJM6D-MA | NM-EJM6D-A | |||||
| No head | NM-EJM6D | NM-EJM6D-D | - | ||||
| Specification | |||||||
| PCB dimensions*1 (mm) |
Dual-lane mode |
L 50 x W 50 ~ L 510 x W 300 | |||||
| Single-lane mode |
L 50 x W 50 ~ L 510 x W 590 | ||||||
| PCB exchange time |
Dual-lane mode |
0 s* *No 0s when cycle time is 3.6 s or less | |||||
| Single-lane mode |
3.6 s* *When selecting short conveyors | ||||||
| Electric source | 3-phase AC 200, 220, 380, 400, 420, 480 V 2.7 kVA | ||||||
| Pneumatic source *2 | 0.5 MPa, 100 L /min (A.N.R.) | ||||||
| Dimensions *2 (mm) | W 832 x D 2 652 *3 x H 1 444 *4 | ||||||
| Mass | 1 680 kg (Only for main body:This differs depending on the option configuration.) | ||||||
