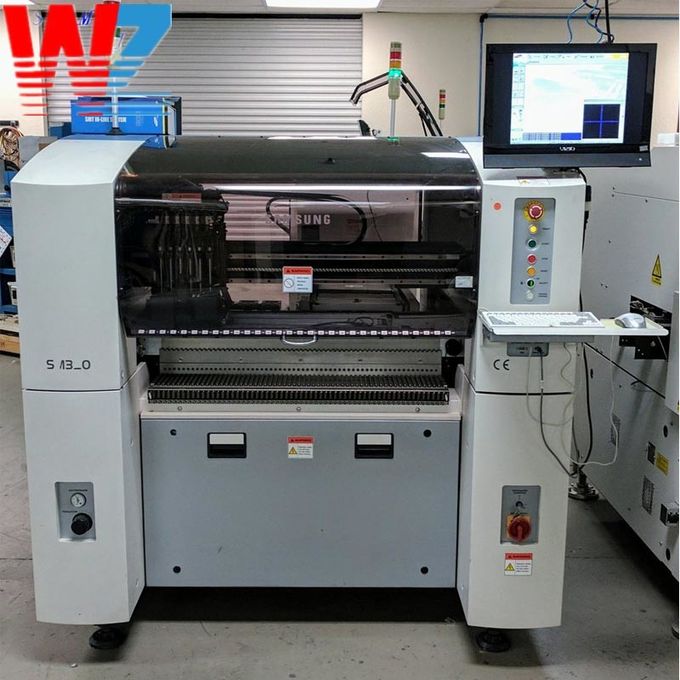

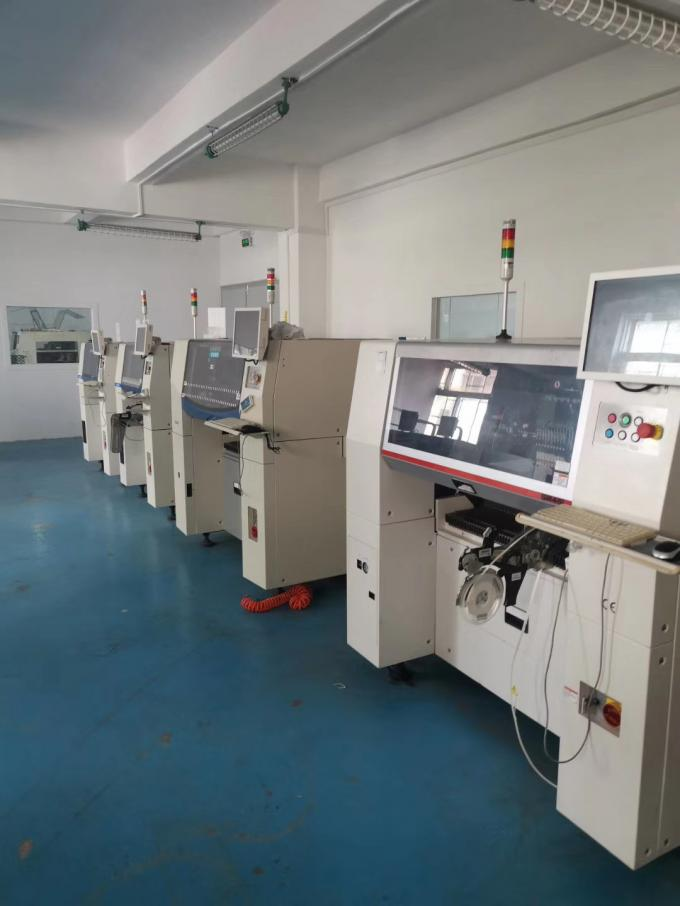

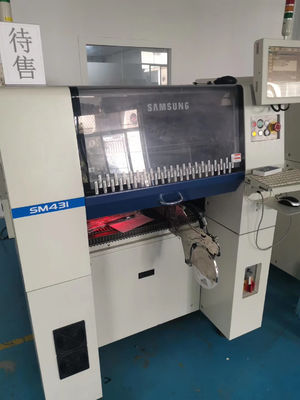

SAMSUNG Hanwha SM431 SM321 smt pick and place machine

PCB size 460 x 460 (1PCB)
Patch speed 21000CPH
Component:0402mm Chip to 12mm
84pcs 8mm feeders

Product description: Samsung SM431 Pick and Place Machine, PCB size 460 x 460 (1PCB), 84pcs 8mm feeders, Patch speed 21,000CPH,

Component:0402mm Chip to 12mm

omponents identifation: New Flying Vision

SM431 components range: 0402 Max - 12mm IC chip,
Max PCB size: L460ⅹW460 PCB .

Max patch speed: Chip 42K CPH (IPC9850)
Component range: 0402 ~ 12mm (H = 7mm)
Placement Accuracy: ± 50㎛ @ μ + 3σ / chip
Max PCB size: Max. L460ⅹW460ⅹ1lane
Max. L460ⅹW250ⅹ2lane
Chip theory speed speed 55,000CPH
Mounting range 0402mm Chip to □ 12mm
Positioning accuracy of plus or minus 0.05mm
PCB size 460 x 460 (1PCB)

Samsung SMT SM431 efficient and wide range of support for all forms of production, with its class in the world's fastest, universal type surface mount machine can mount a wide range of components, the specific realization of "Limitless EXpansion" a number of functions as Standard configuration, to ensure high-quality placement of a highly flexible feeding device.

1. Speed 55,000CPH (Best condition)
2. dual-arm Y-axis dual servo drive system
3. arms a total of 16 placement head
   High-speed flight image recognition system
   - Components to adapt to: 0402mm Chip to □ 12mm
   - Mounting accuracy: ± 50μm @ 3σ
4. For new SM feeding system
   - For non-stop feeder
   - for the rail way feeder
   -LED Displays feeder status
5. dual transmission system
   - Dual transfer mode: 330 x 250 (2 PCBs)
   - Single transfer mode: 460 x 460 (1PCB)
6. Can put 84 8mm feeders
7. LCD display with front and rear operation
8. automatic mouth change device
9. Windows XP operating system
10. Safety cover
11. Kit
