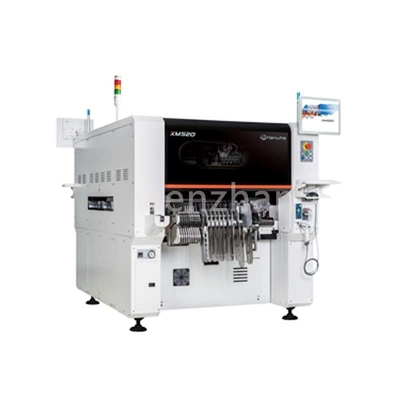

SMT SAMSUNG HANWHA XM520 Chip Mounter Machine For SMT PCB Assembly Line LED

SMT SAMSUNG HANWHA XM520 Chip Mounter Machine For SMT PCB Assembly Line LED

MOQ: 1 set/sets
Price: Negotiable
Standard Packaging: 1.Wooden case and vacuum package 2.As your requirements
Delivery Period: 3 days
Payment Method: T/T, Western Union, Paypal, Credit card
Supply Capacity: 5000
Detail Information
Place of Origin
South Korea
Brand Name
SAMSUNG/Hanwha
Model Number
XM520
PRODUCT NAME:
HANWHA XM520 CHIP MOUNTER MACHINE
MODEL:
XM520
QUALITY:
High Quality
Spindle & Speed:
2 Gantry * 10 Spindle / 100,000 CPH (Optimum)
Accuracy:
±22 μm @ Cpk ≥ 1.0
Component Range:
0201 ~ □22 Mm(Fly) / ~ L150 X 55 Mm(Stage)
Dimension:
L 1,430 X D 1,900 X H 1,994
Delivery:
Ups,dhl,fedex,as Required
Highlight:

SMT SAMSUNG Chip Mounter Machine

,

HANWHA XM520 Chip Mounter Machine

Product Description

SMT SAMSUNG HANWHA XM520 CHIP MOUNTER MACHINE FOR SMT PCB Assembly Line LED



The XM520, a general purpose chip mounter with the best-in-class productivity and quality enhancements, also has flexible applicability to product types and allows a wide range of line combinations and options.



Wide system enables unlimited configuration of options including simultaneous use of Stage Camera, Docking Cart and Tray.
extensive applicability to components and flexible applicability to PCBs enables line combinations to suit the customer's product types.
Allows quick job change automatically by maximizing user convenience.



Alignment :Fly Cam + Stage Cam (Option)
Spindle & Speed: 2 Gantry * 10 Spindle / 100,000 CPH (Optimum)
Accuracy: ±22 μm @ cpk ≥ 1.0
Component Range: 0201 ~ □22 mm(Fly) / ~ L150 x 55 mm(Stage)
DimensionL : 1,430 x D 1,900 x H 1,994



Best speed in 10 head solution
Max. 100,000 CPH
Its best-in-class speed and applicability to wide head pitch and height extends the range of components that can be simultaneously picked up, achieving high actual productivity for components


Best accuracy in class
±22 μm @ cpk ≥ 1.0
Achieves best-in-class placement accuracy and maintains high component placement quality by automating quality control of run calibration, nozzle maintenance units, etc.


Flexible Production
Wide system , extensive applicability to components and flexible applicability to PCBs
Enables unlimited configuration of options including simultaneous use of Stage Camera, Docking Cart and Tray, and extensive applicability to components and flexible applicability to PCBs enables line combinations to suit the customer's product types.

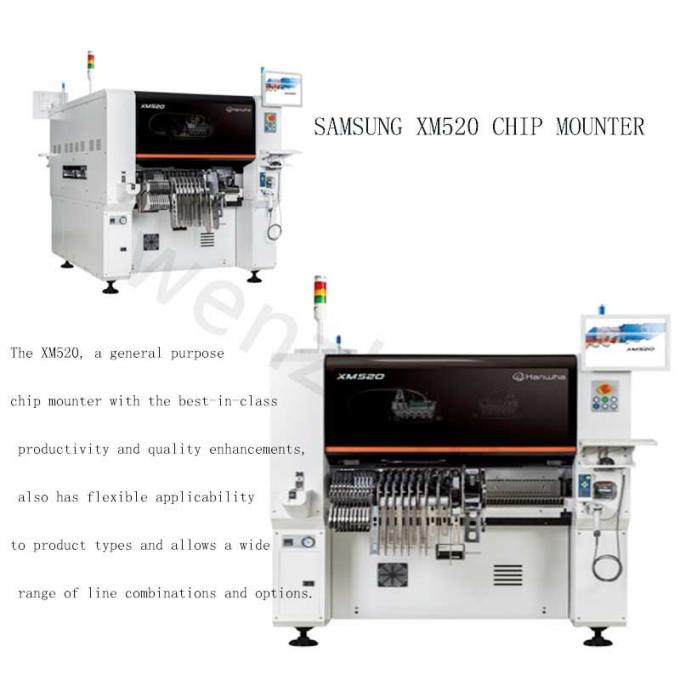

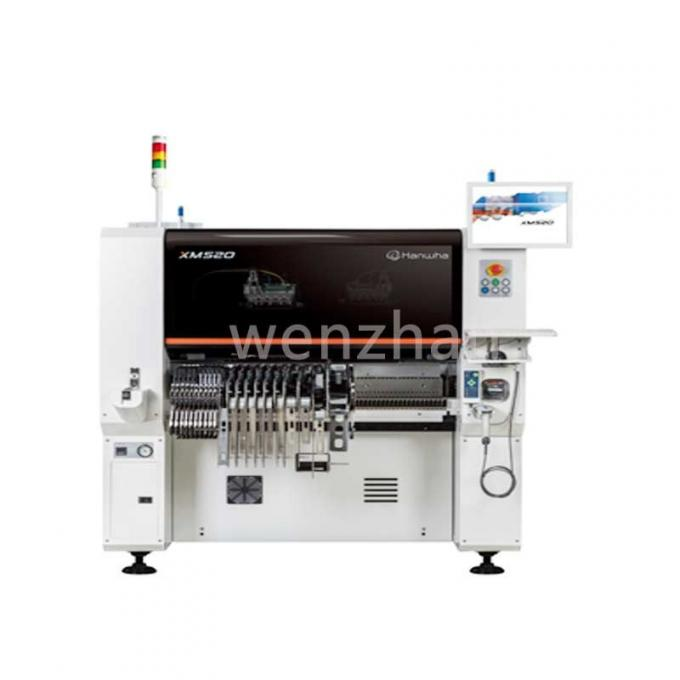

SMT SAMSUNG HANWHA XM520 Chip Mounter Machine For SMT PCB Assembly Line LED 0SMT SAMSUNG HANWHA XM520 Chip Mounter Machine For SMT PCB Assembly Line LED 1



other machine
We are smt support provider for smt machine parts and equipment .such as reflow solder oven, Wave Soldering Machine, Pick and Place Machine, SMT PCB Printer, SMT AOI SPI Machine, SMT Reflow Oven, PCB conveyor , smd counter ,loader & unloader machine ,nozzle / feeder , feeder storage cart smt reel rack , smt grease , solder paste mixer, KIC thermal profiler,smt tape ,SMT Assembly line and so on .

wenzhan Techonologies Co.,Ltd
In 2009, Shenzhen wenzhan Technology Co., Ltd. was established to build a more timely and effective communication platform, and realize the company's service tenet of serving leading customers.The engineers of the company are professional technicians who have been certified by the original factory for more than 10 years. They always adhere to the value of putting the interests of customers first, and provide customers with high-quality equipment accessories, consumables, fixtures and technical support services.

In order to effectively reduce the cost of customers, the company set up a machining plant, and changed most of the feeder parts to self-produced parts, so as to ensure sufficient inventory and reduce the cost of customers at the same time.



SMT SAMSUNG HANWHA XM520 Chip Mounter Machine For SMT PCB Assembly Line LED 2SMT SAMSUNG HANWHA XM520 Chip Mounter Machine For SMT PCB Assembly Line LED 3SMT SAMSUNG HANWHA XM520 Chip Mounter Machine For SMT PCB Assembly Line LED 4

SMT SAMSUNG HANWHA XM520 Chip Mounter Machine For SMT PCB Assembly Line LED 5



EXHIBITION PHOTO :

SMT SAMSUNG HANWHA XM520 Chip Mounter Machine For SMT PCB Assembly Line LED 6SMT SAMSUNG HANWHA XM520 Chip Mounter Machine For SMT PCB Assembly Line LED 7



Why Choose Us?
It is precisely because wenzhan technology has the following advantages over the same industry that
more and more customers choose wenzhan as their preferred supplier.

1. Professional pre-sales advice support

2. Excellent after-sales technical service

3. Flexible payment and return policy

4. One stop solution for SMT accessories

5. Stock in the factory with sufficient stock and fast delivery
